Door Window Regulator Handle Replacement

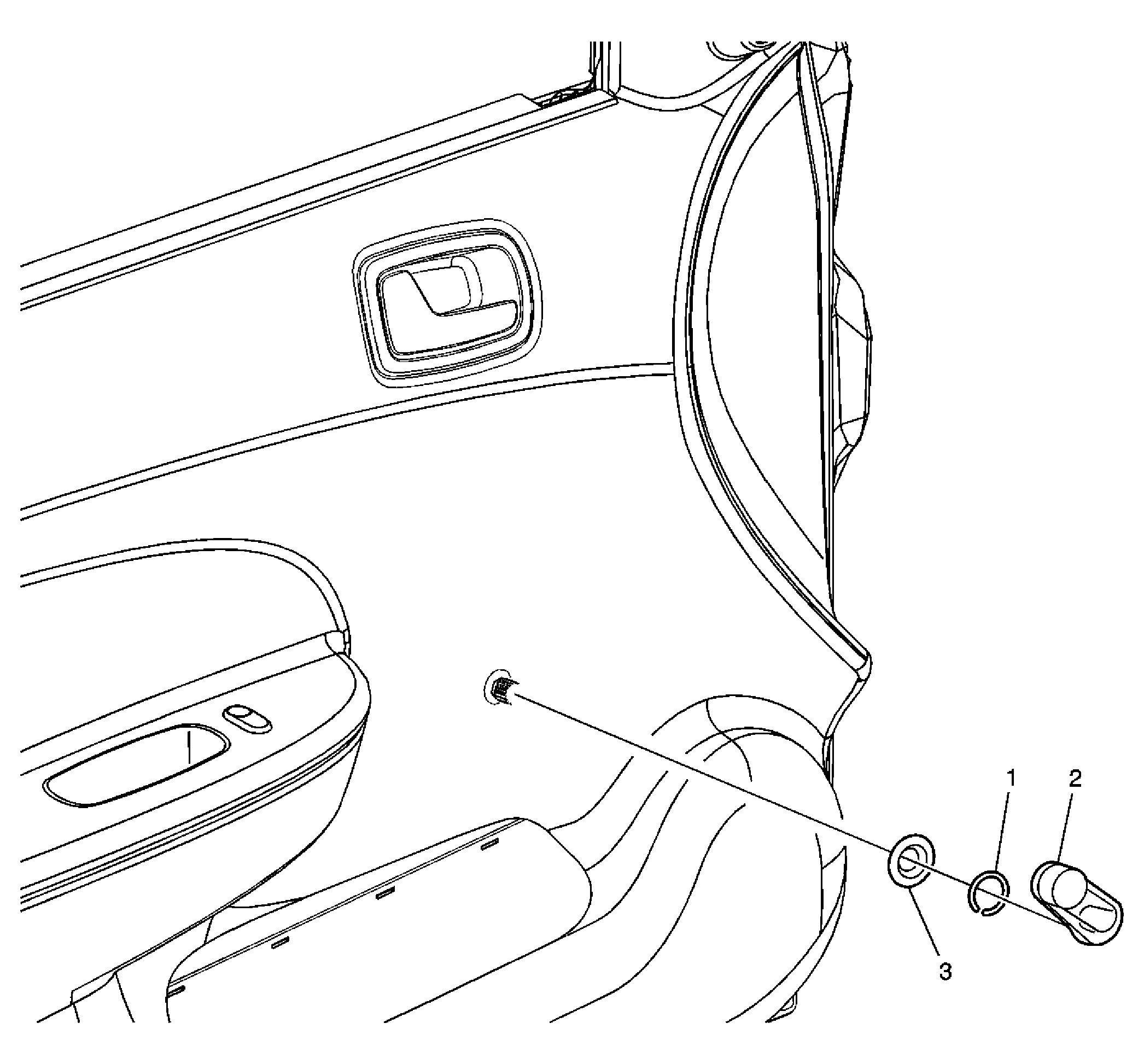

Fig 1: Window Regulator Handle Replacement - Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Retainer Clip
2	Window Regulator Crank Tip:  Use the J 9886-01  Door Handle Clip Remover to remove the crank handle.
3	Window Regulator Washer
