Preliminary Procedures
- Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement
.
- Remove the water deflector. Refer to Front Side Door Water Deflector Replacement
.
|

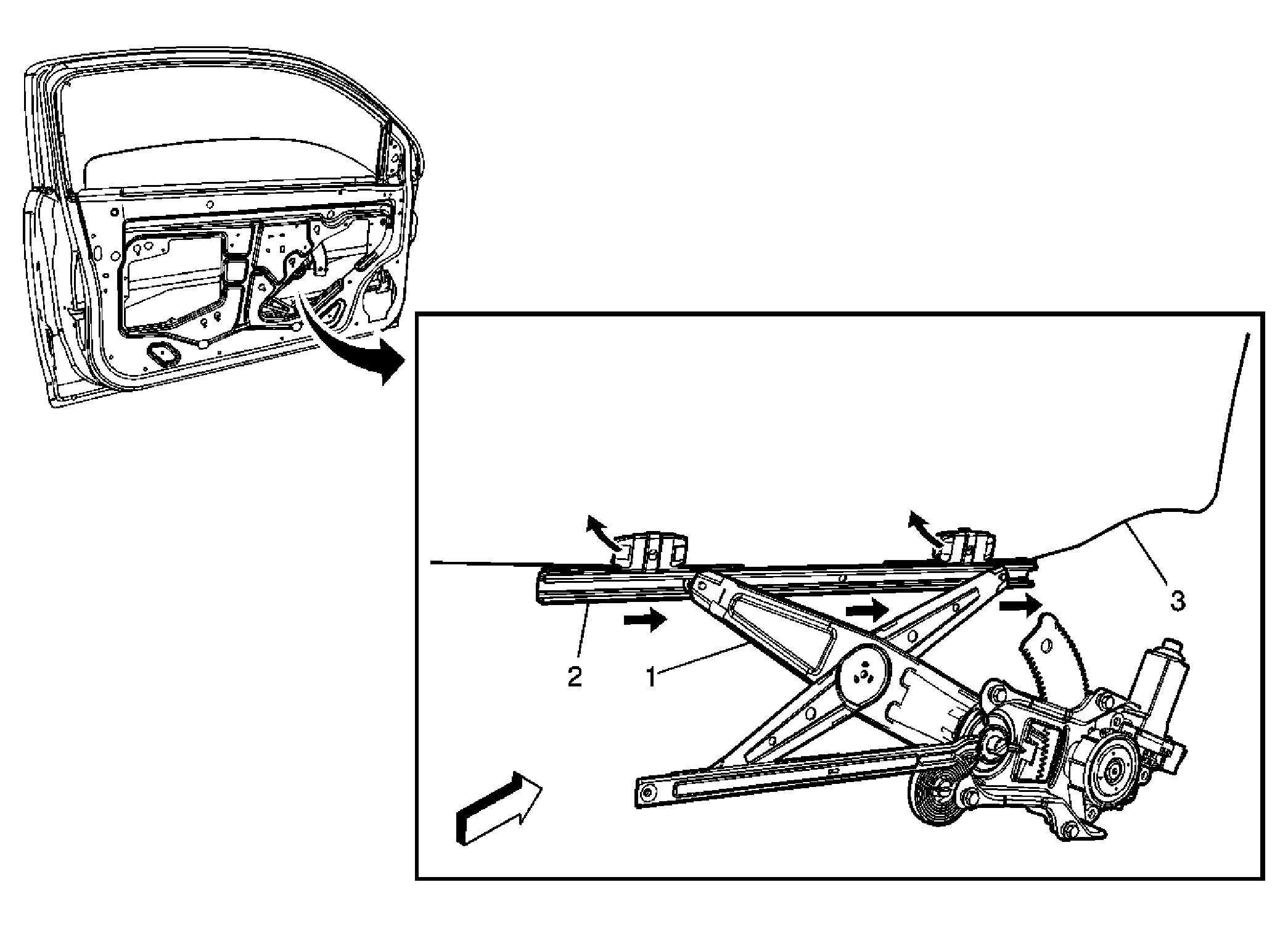

| 1 |
Front Side Door Window Insulators Retainer Clip (Qty: 2)
Procedure:
Place the window about half way down this will allow the insulators retainer clips to be viewed. |
| 2 |
Front Side Door Window Sash Procedures
- Push in on each end of the window insulators retainer clips.
- Slide the sash forward releasing the window from the retainer clips complete.
Tip:
Do not remove the sash from the window regulator. |
| 3 |
Front Side Door Window Procedures
- Rotate the window downward, pull upward removing the window from the door.
- Slide the sash rearward locking the window insulators retaining clips, then inspect the door window for proper operation and alignment before installing the door trim panel.
|
