Data Communication Schematics

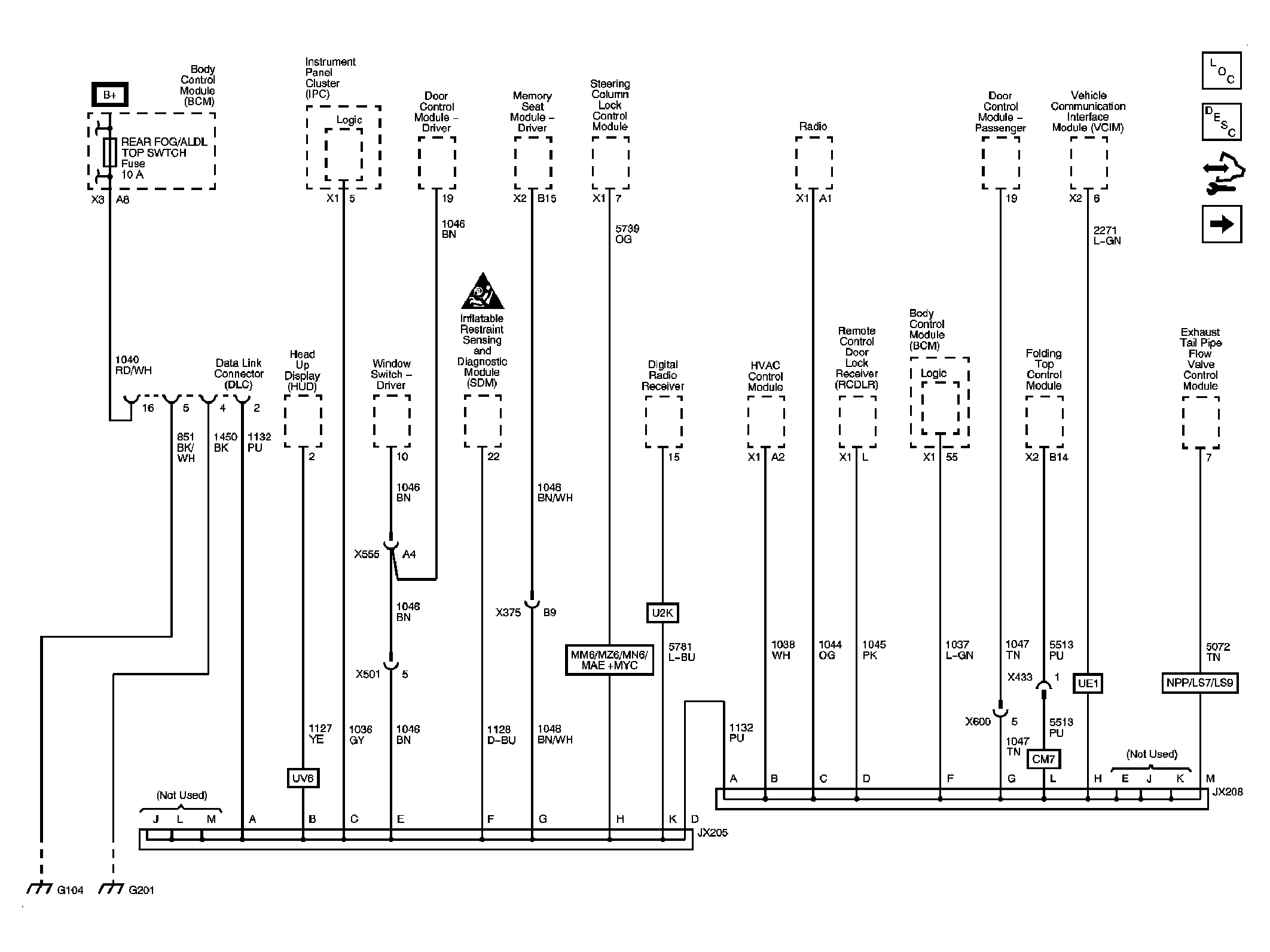

Fig 1: Power, Ground, and Class 2

Courtesy of GENERAL MOTORS CORP.

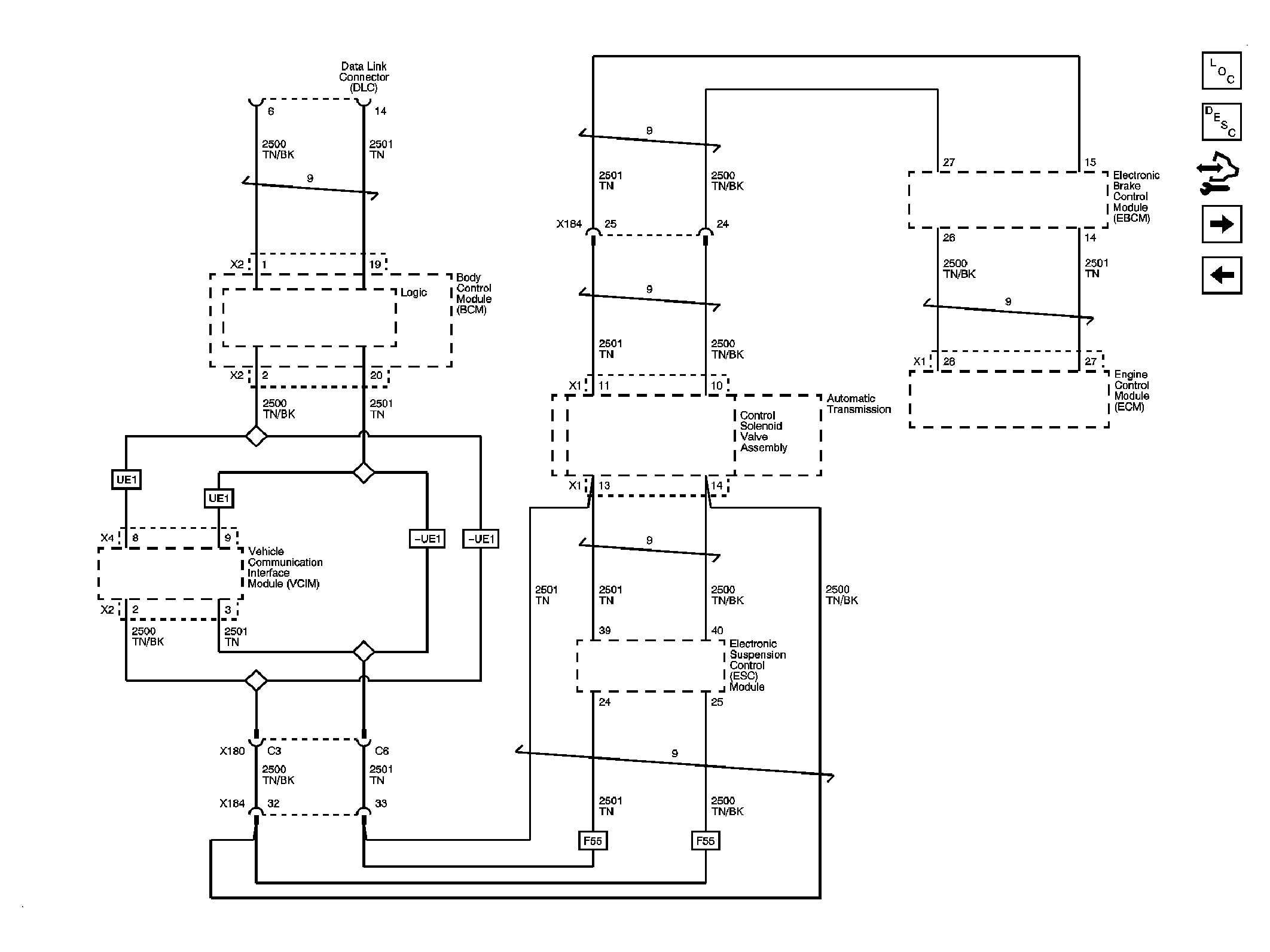

Fig 2: High Speed GMLAN - Automatic Transmission

Courtesy of GENERAL MOTORS CORP.

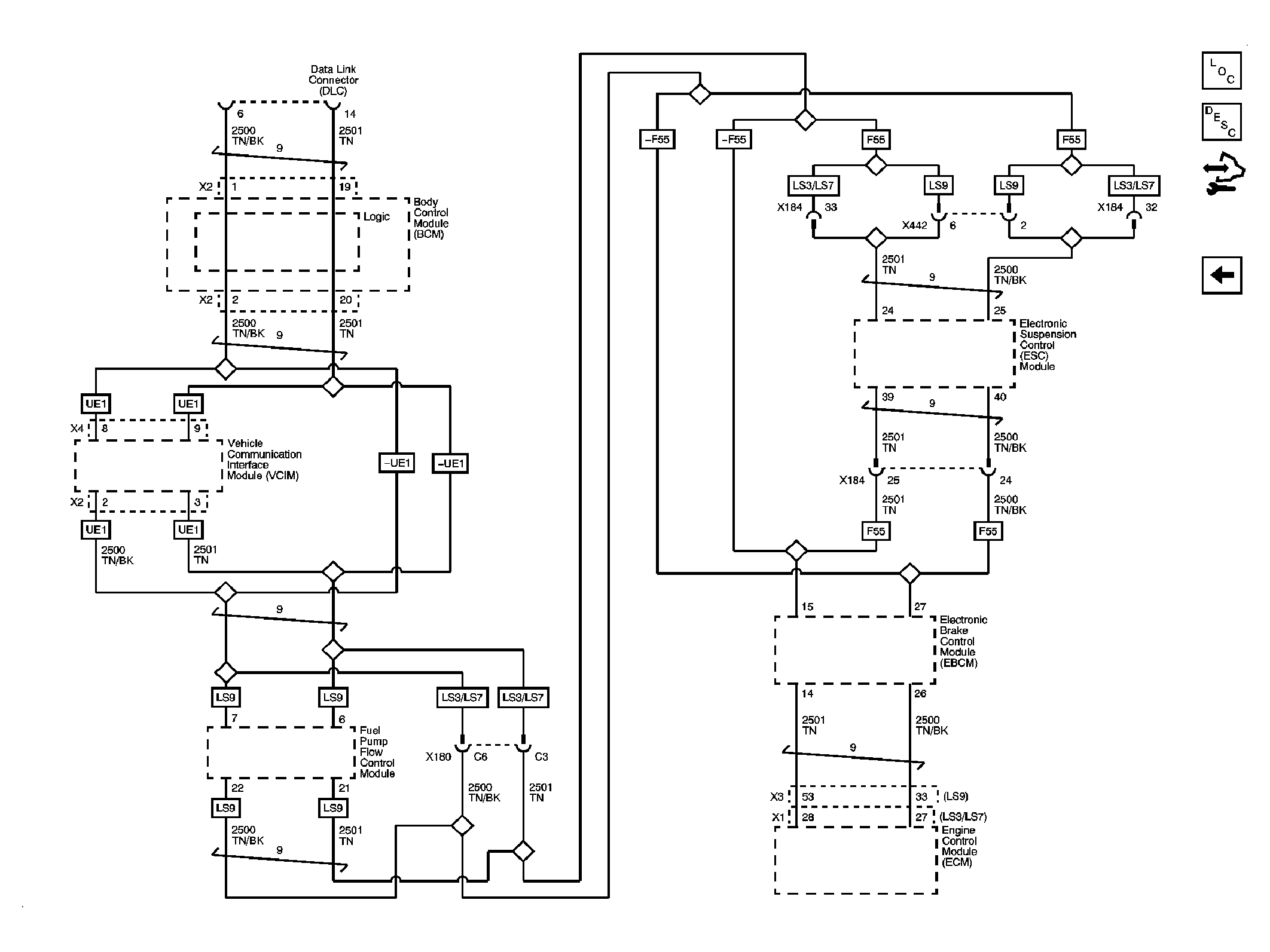

Fig 3: High Speed GMLAN - Manual Transmission

Courtesy of GENERAL MOTORS CORP.
