Moveable Window Schematics

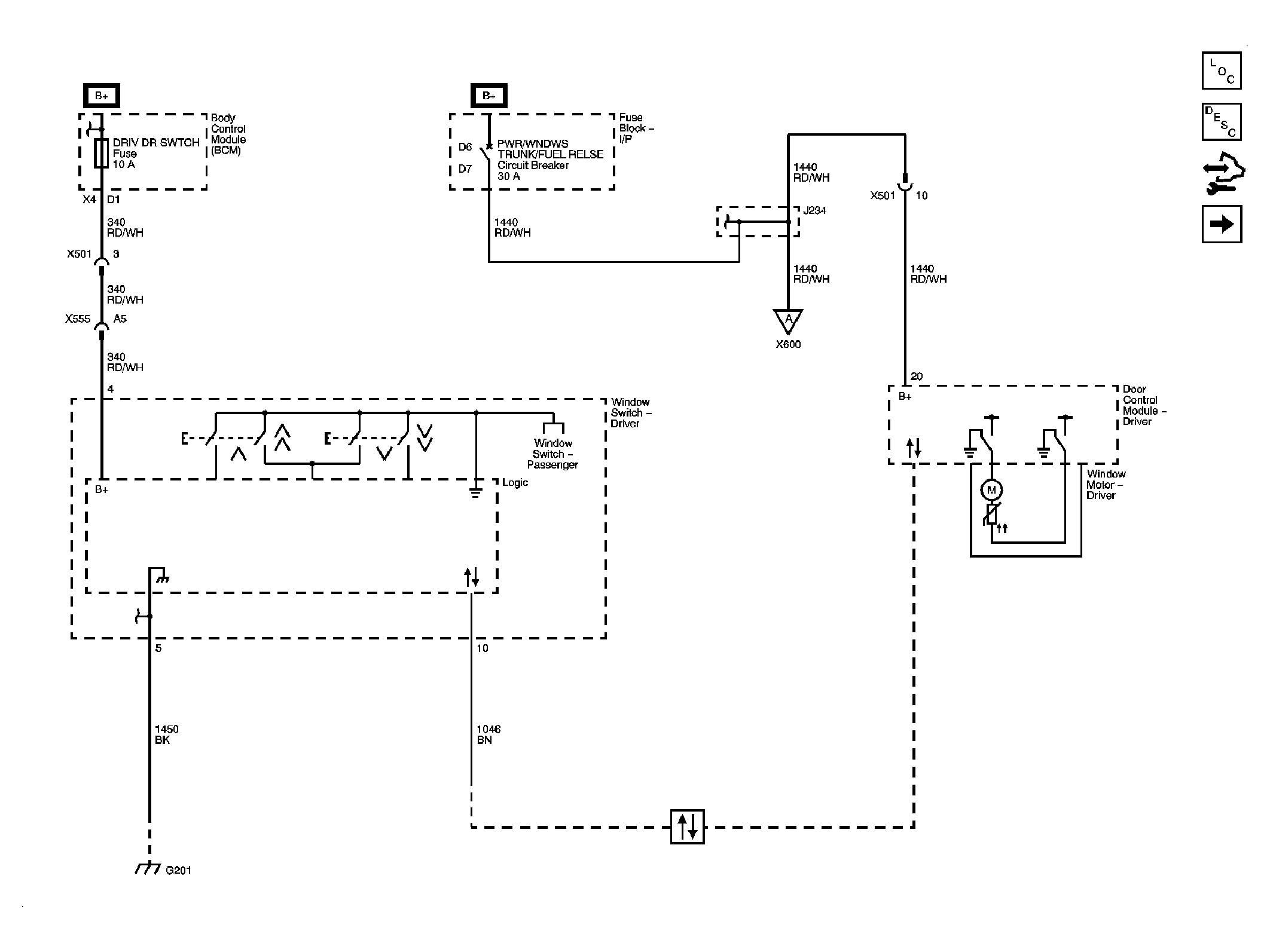

Fig 1: Driver Window
GM2225696Courtesy of GENERAL MOTORS CORP.
Fig 2: Passenger Window
GM2225699Courtesy of GENERAL MOTORS CORP.
