Antilock Brake System Schematics

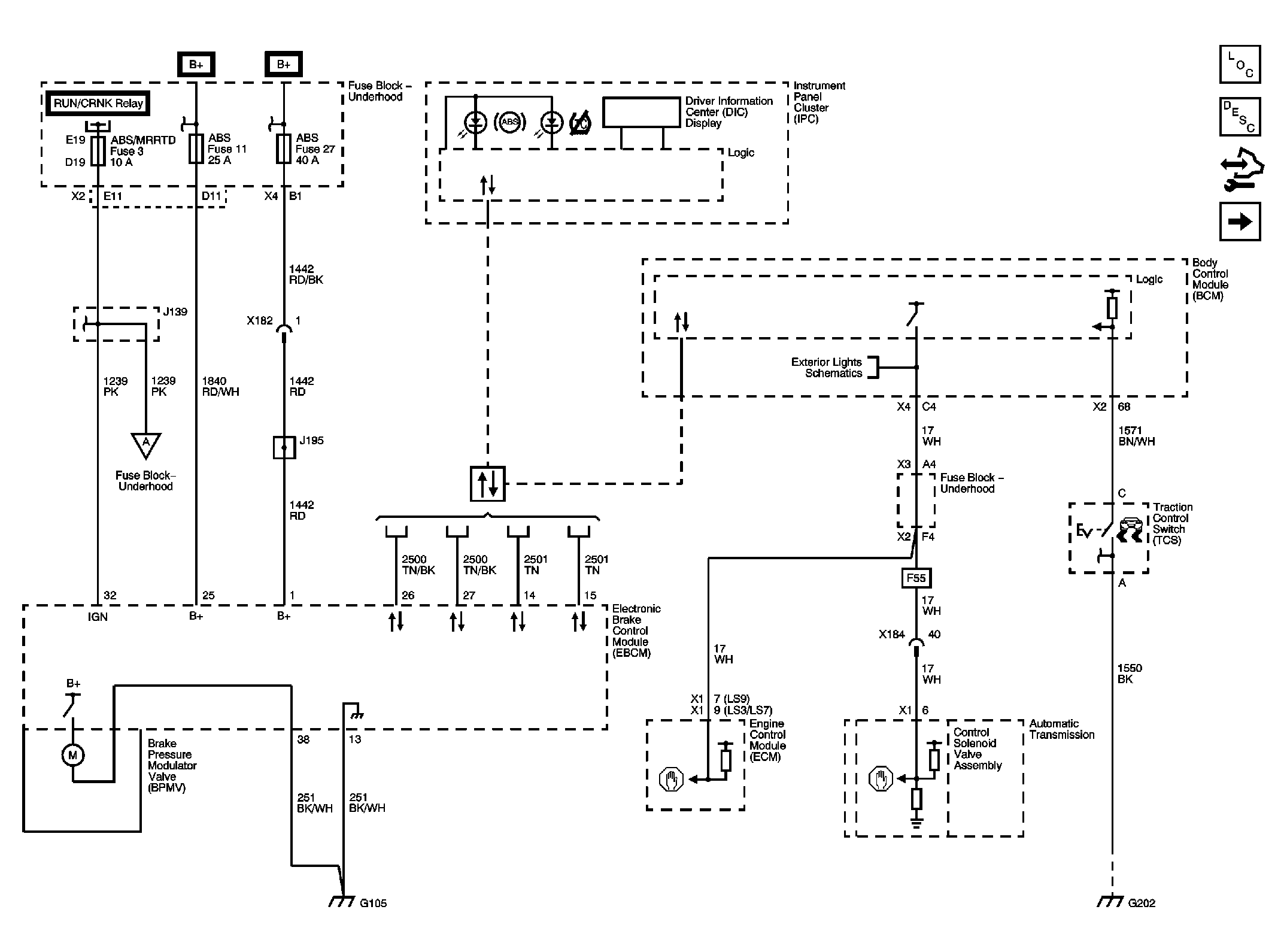

Fig 1: Power, Ground, Brake Pressure and Traction Controls

Courtesy of GENERAL MOTORS CORP.

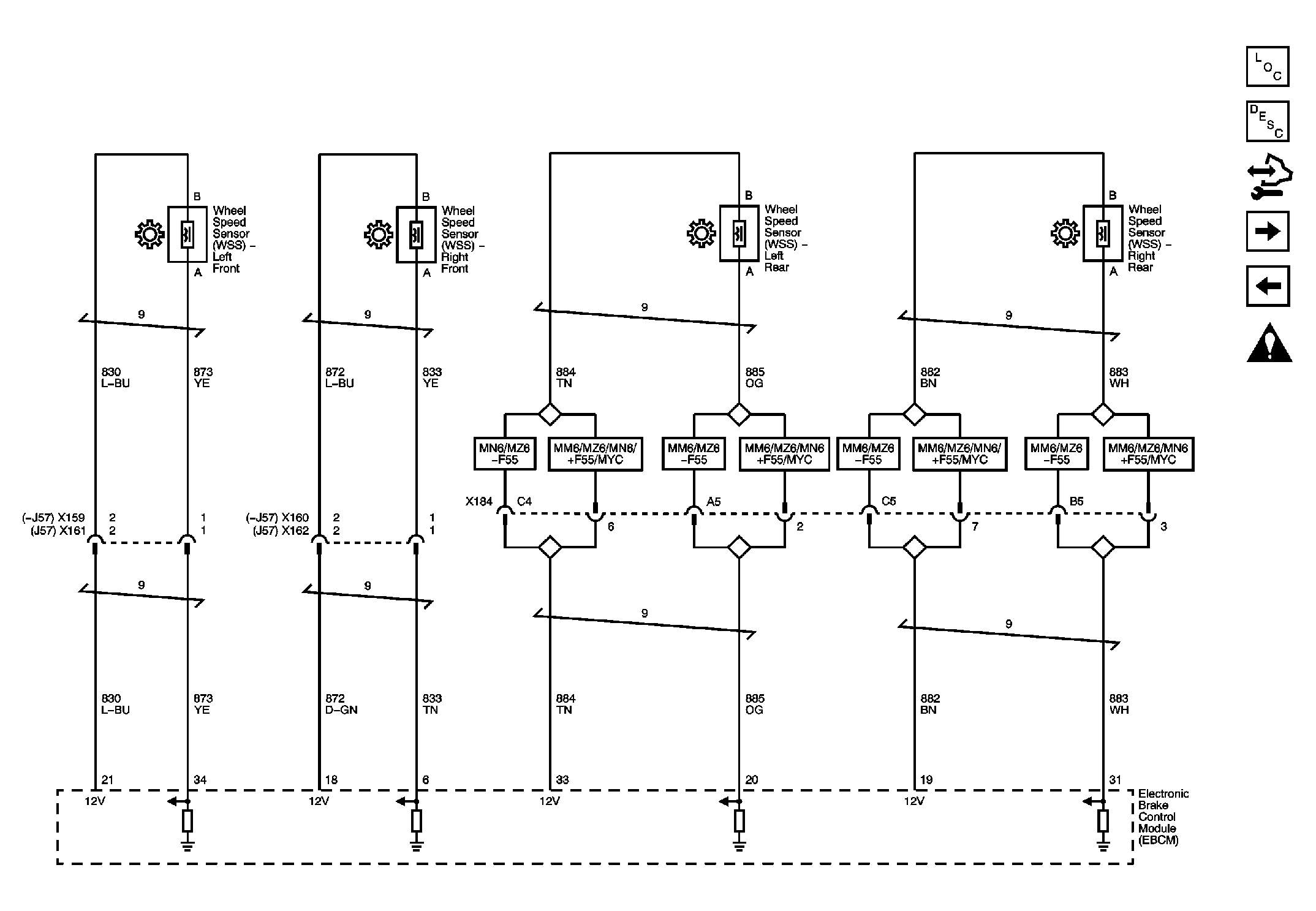

Fig 2: Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.

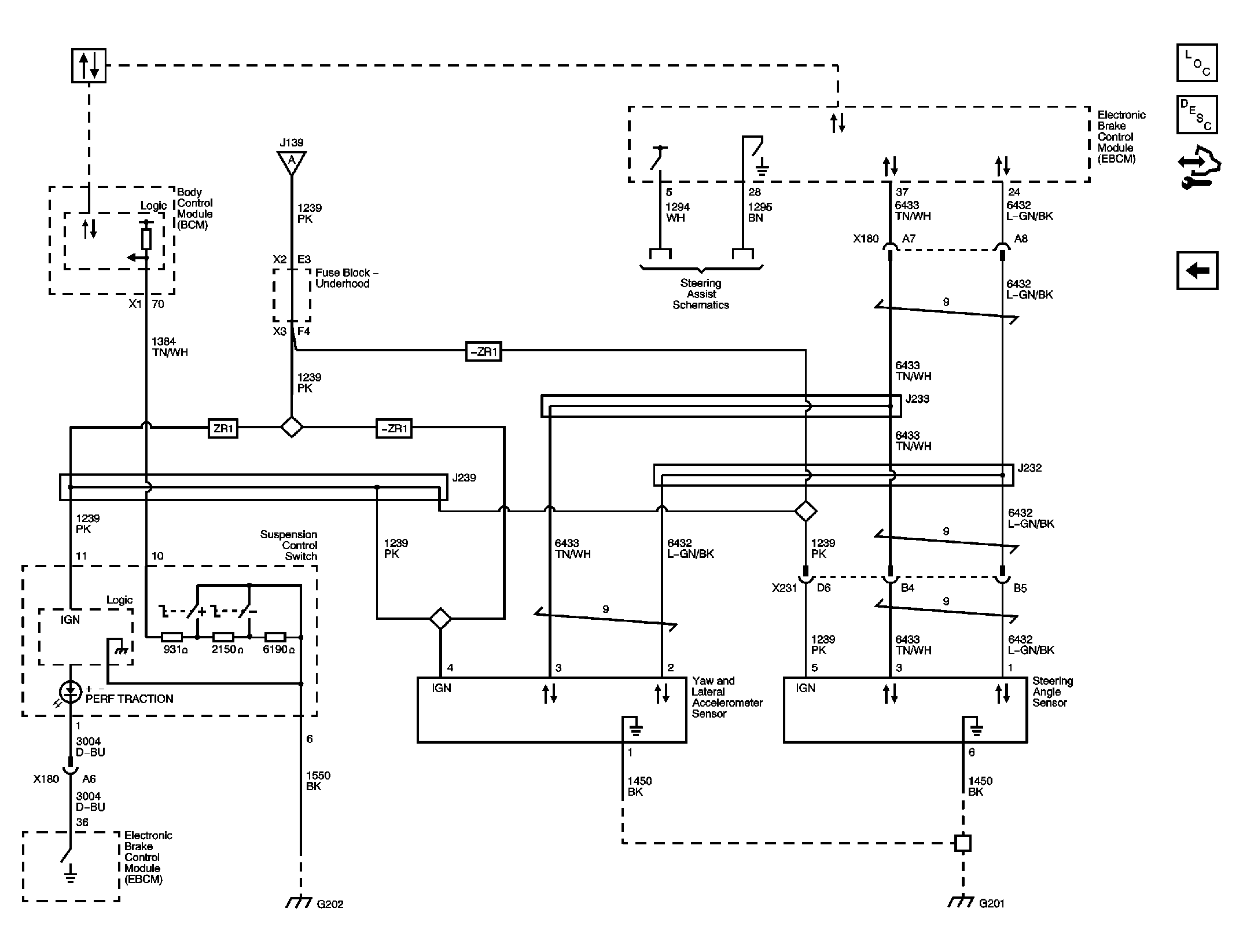

Fig 3: Stability Control Inputs

Courtesy of GENERAL MOTORS CORP.
