Exhaust Temperature Sensor Replacement - Position 1

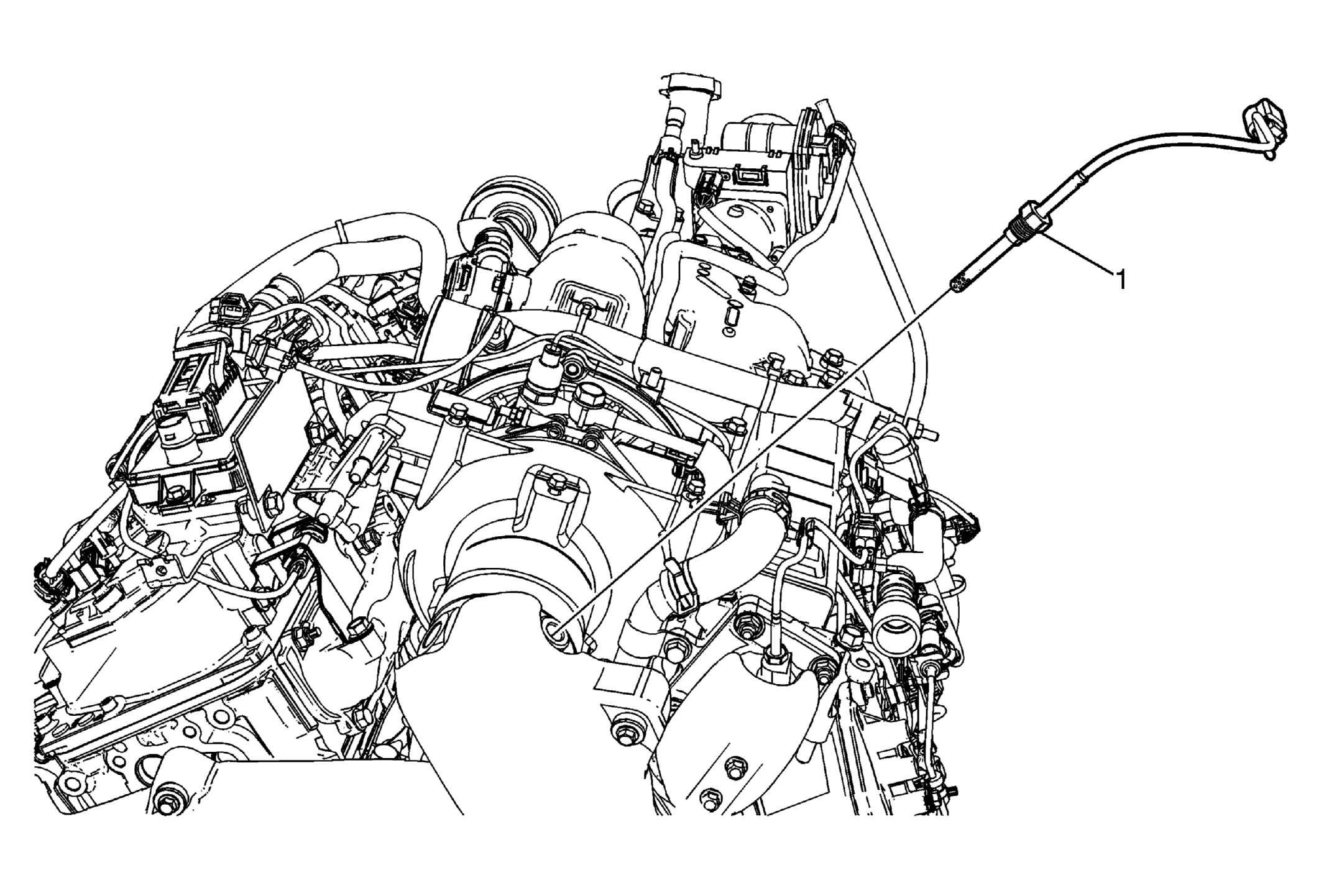

Fig 1: Identifying Exhaust Temperature Sensor - Position 1

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the engine cover. Refer to Engine Cover Replacement .
1	Exhaust Temperature Sensor CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. If reinstalling the old sensor, coat the threads with anti-sieze compound. Refer to Adhesives, Fluids, Lubricants, and Sealers . NOTE: Apply penetrating oil to the sensor and allow to soak for 10 minutes prior to removal. Tighten 45 N.m (33 lb ft)

Callout

Component Name

Preliminary Procedure
Remove the engine cover. Refer to Engine Cover Replacement .

Exhaust Temperature Sensor

CAUTION:

Procedure

Disconnect the electrical connector.
If reinstalling the old sensor, coat the threads with anti-sieze compound. Refer to Adhesives, Fluids, Lubricants, and Sealers .

NOTE:

Apply penetrating oil to the sensor and allow to soak for 10 minutes prior to removal.

Tighten
45 N.m (33 lb ft)
