Intake Air Temperature (IAT) Sensor 2 Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the engine cover. Refer to Engine Cover Replacement . |
|

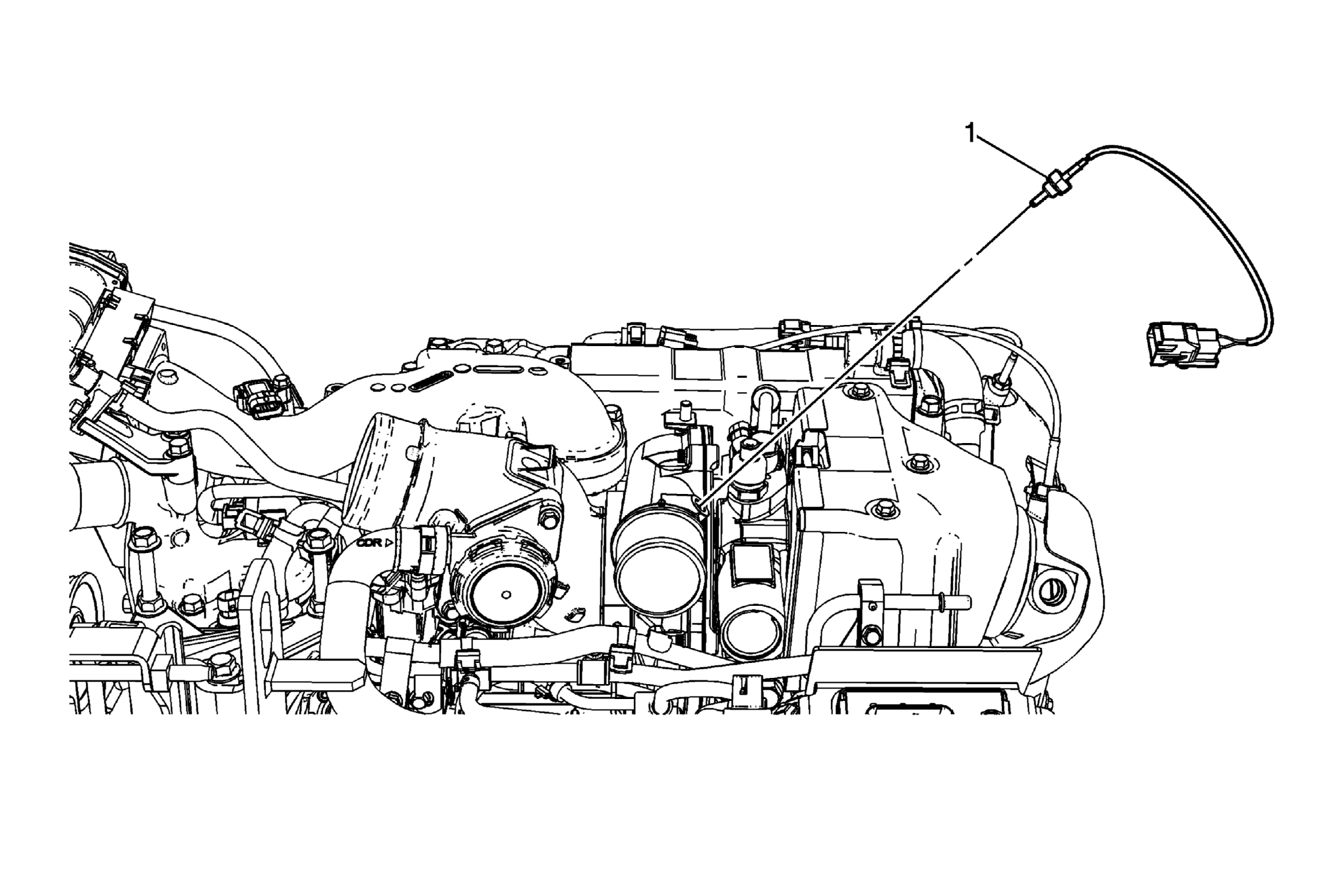

| 1 | Intake Air Temperature Sensor
CAUTION:
Refer to Fastener Caution . Procedure Disconnect the electrical connector. Tighten 25 N.m (18 lb ft) |
