Installation Procedure

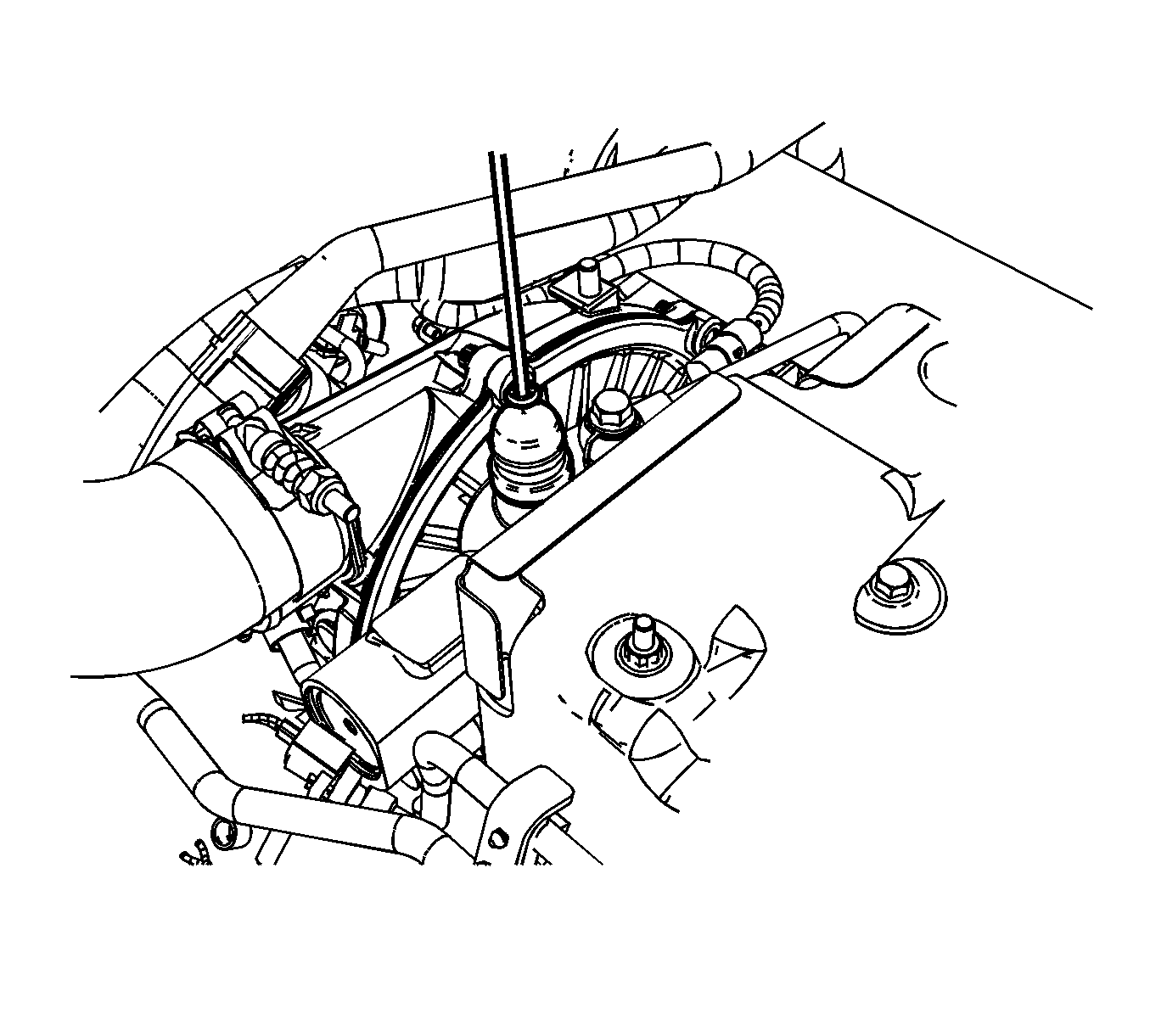

    Fig 1: Turbocharger Vane Position Sensor
    GM1731868Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the turbocharger vane position sensor to the turbocharger and tighten to 23 N.m (17 lb ft).
  2. Install the turbocharger vane position sensor connector to the bracket located on the LH valve cover.

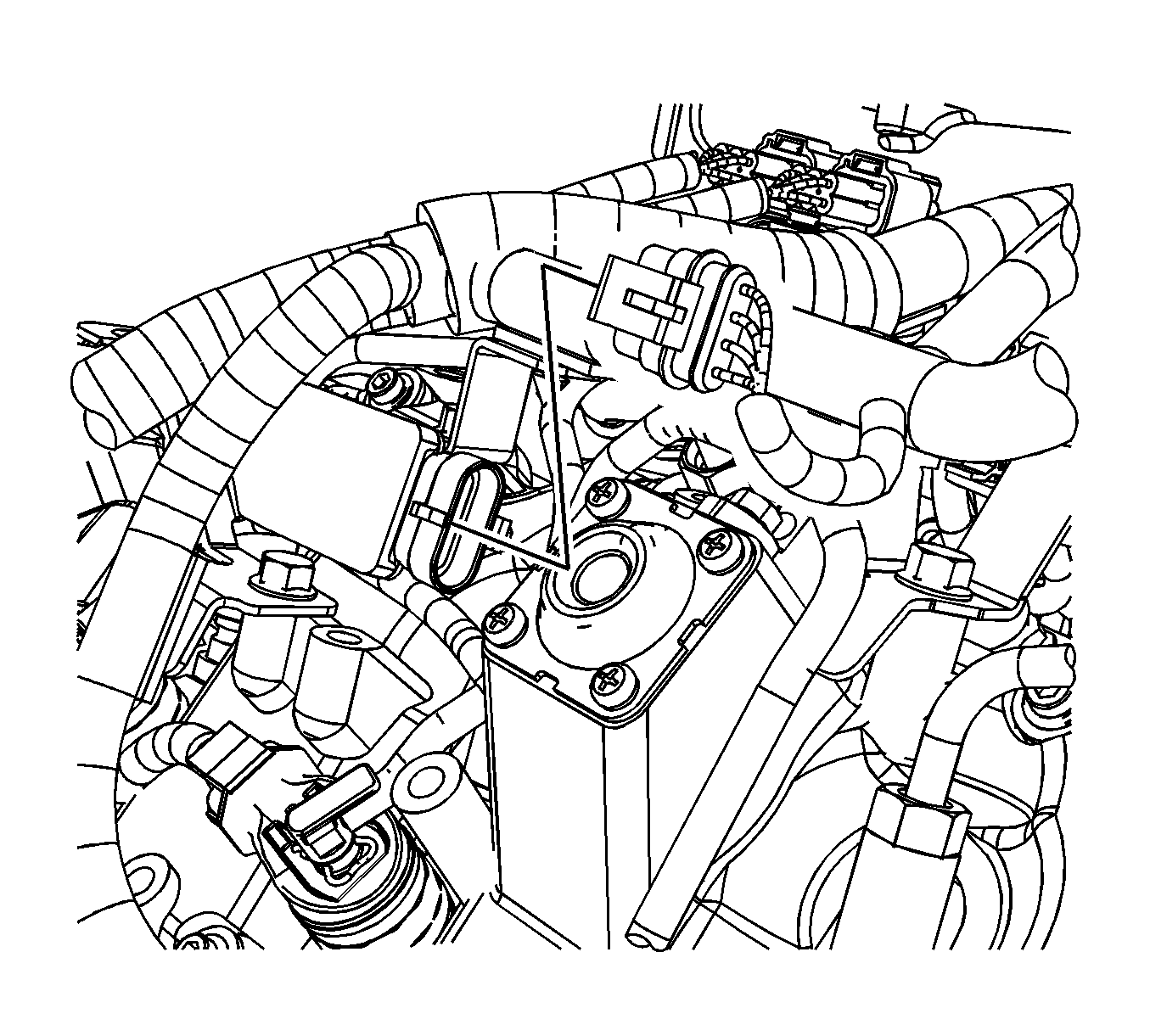

    3. Fig 2: Identifying engine wiring harness electrical connector
    GM1731857Courtesy of GENERAL MOTORS COMPANY
  3. Connect the turbocharger vane position sensor electrical connector.
  4. Perform the turbocharger learn procedure. Refer to Turbocharger Learn .
