Chevrolet
›
2010
›
Cutaway 6.6 L
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Shift Interlock System
›
Schematic and Routing Diagrams
›
Shift Lock Control Schematics
Shift Lock Control Schematics

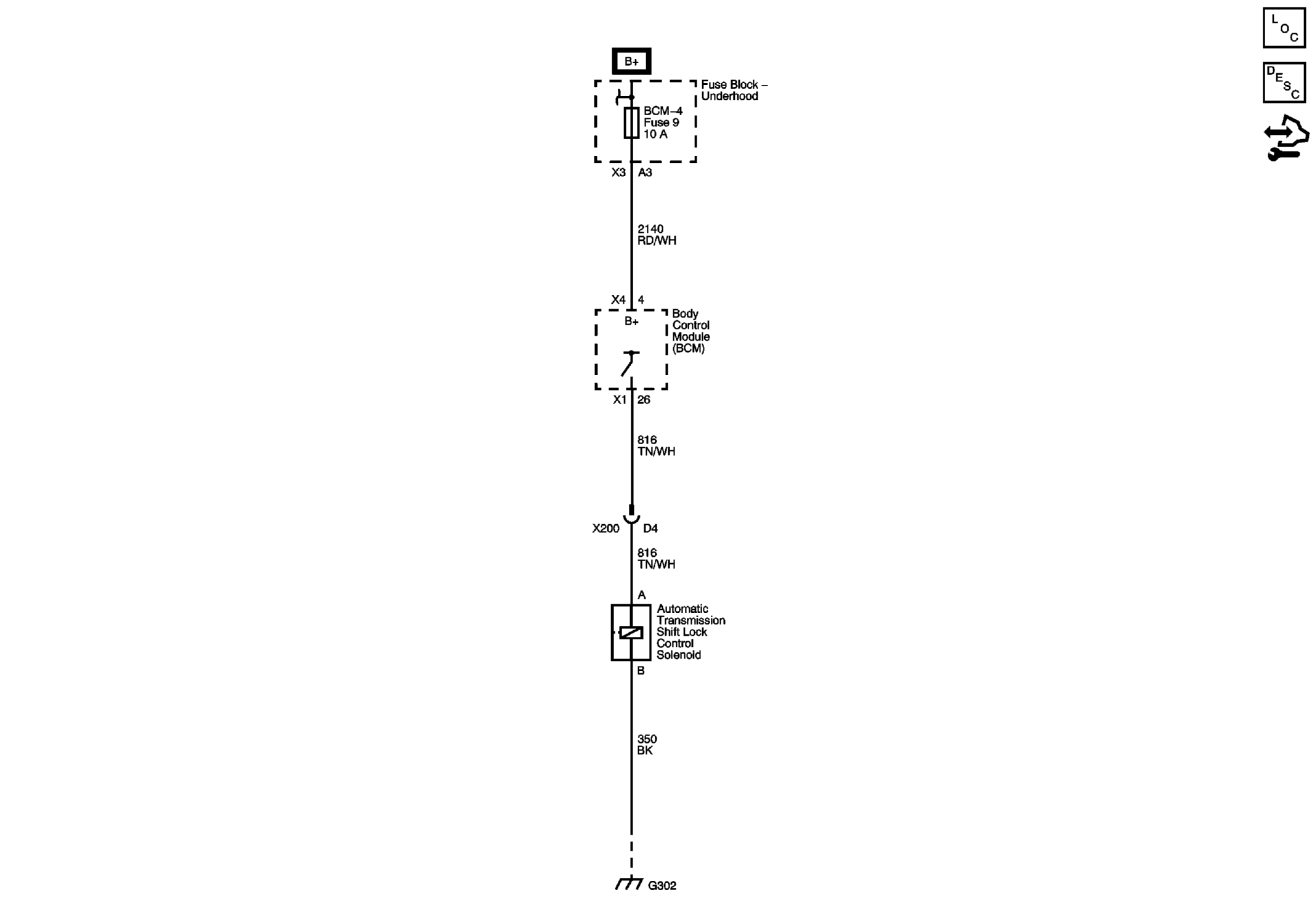

Fig 1: Shift Lock Control Circuit Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
