Steering Wheel Secondary/Configurable Control Schematics

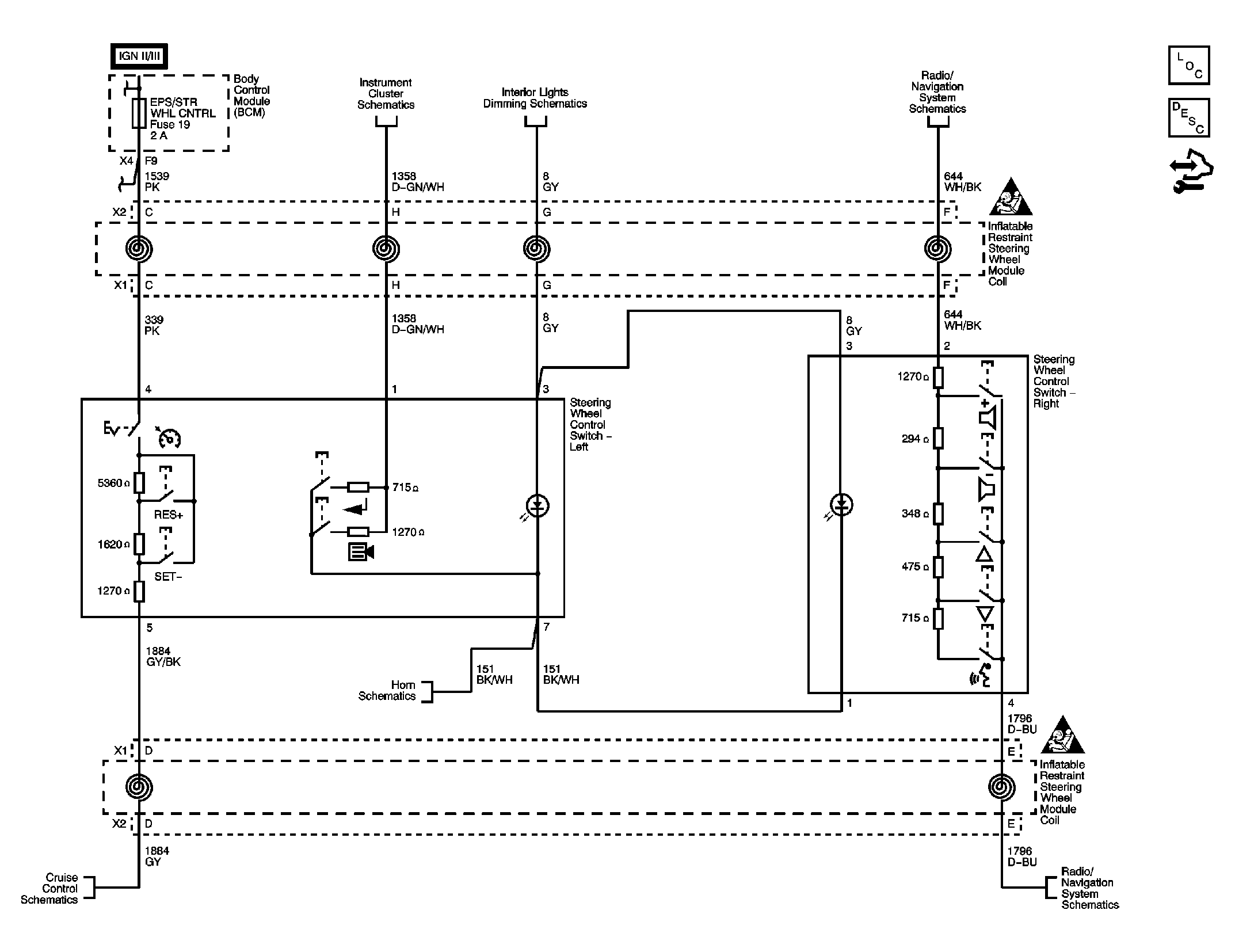

Fig 1: Steering Wheel Secondary/Configurable Control
GM2247599Courtesy of GENERAL MOTORS CORP.
