Front Side Door Window Replacement

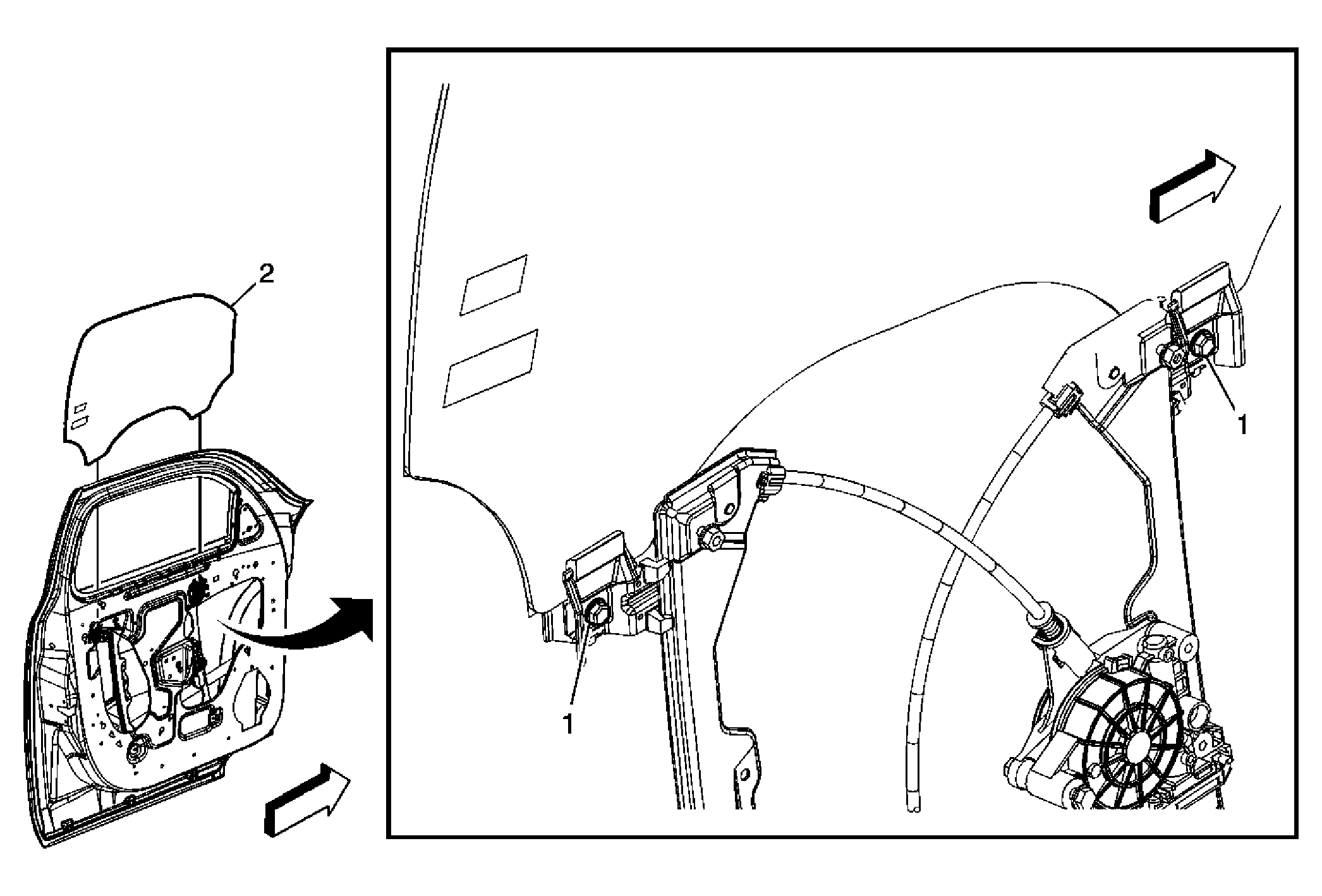

Fig 1: Front Side Door Window

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement . Remove the front side door window outer sealing strip. Refer to Front Side Door Window Belt Inner Sealing Strip Replacement . Remove the front side door window inner sealing strip. Refer to Front Side Door Window Belt Inner Sealing Strip Replacement .
1	Rear Side Door Window Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tip: Loosen the bolts enough to let the window glass move free from the window regulator clamp. Tighten: 10 N.m (89 lb in)
2	Front Side Door Window

Callout

Component Name

Preliminary Procedures

Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement .
Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
Remove the front side door window outer sealing strip. Refer to Front Side Door Window Belt Inner Sealing Strip Replacement .
Remove the front side door window inner sealing strip. Refer to Front Side Door Window Belt Inner Sealing Strip Replacement .

Rear Side Door Window Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tip: Loosen the bolts enough to let the window glass move free from the window regulator clamp.

Tighten: 10 N.m (89 lb in)

Front Side Door Window
