Air Cleaner Outlet Duct Replacement

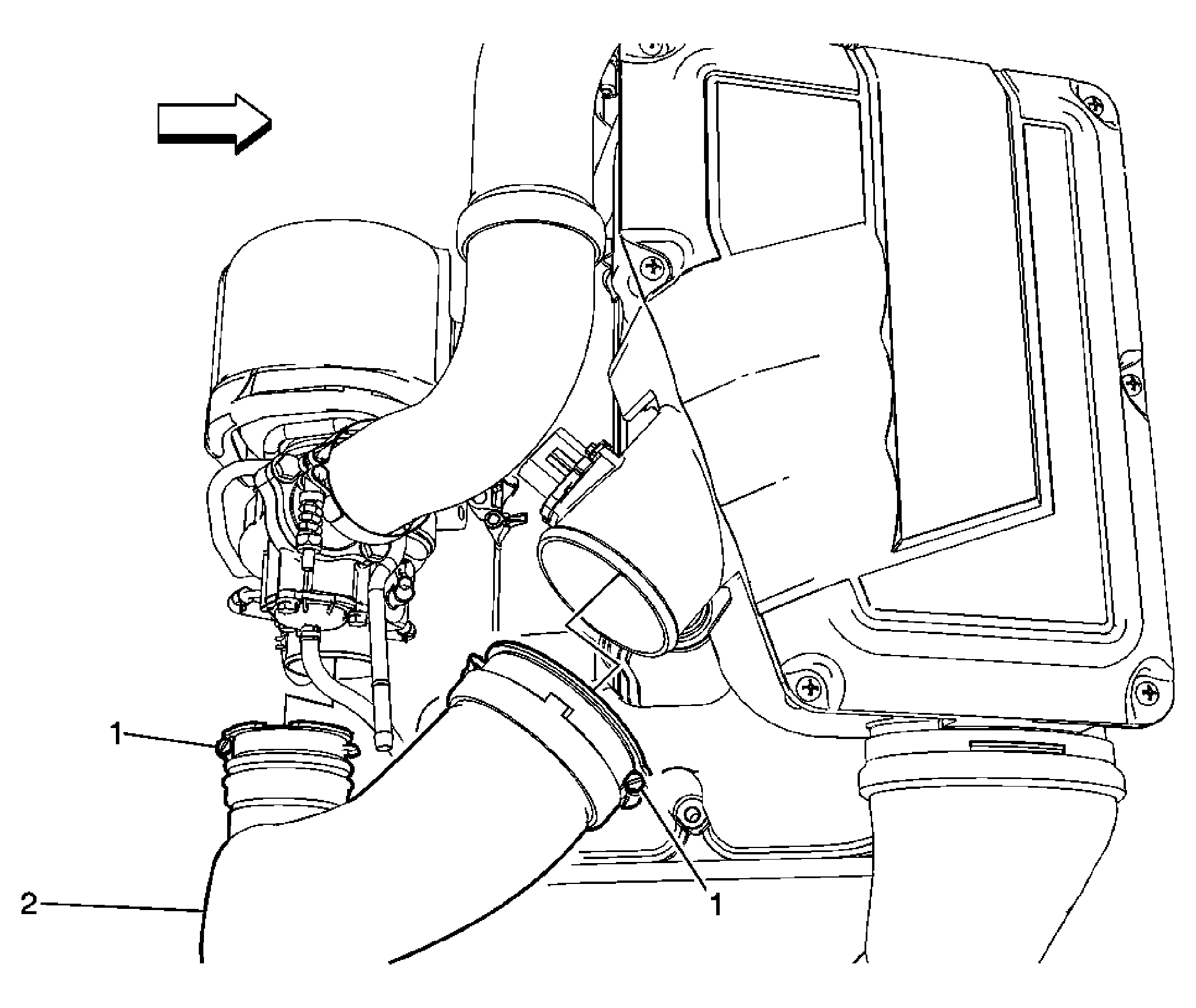

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Disconnect the positive crankcase ventilation tube from the outlet duct. Refer to Plastic Collar Quick Connect Fitting Service |
|
| 1 | Air Cleaner Outlet Duct Clamp (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 5 N.m (44 lb in) |
| 2 | Air Cleaner Outlet Duct |
