Mass Airflow Sensor Replacement

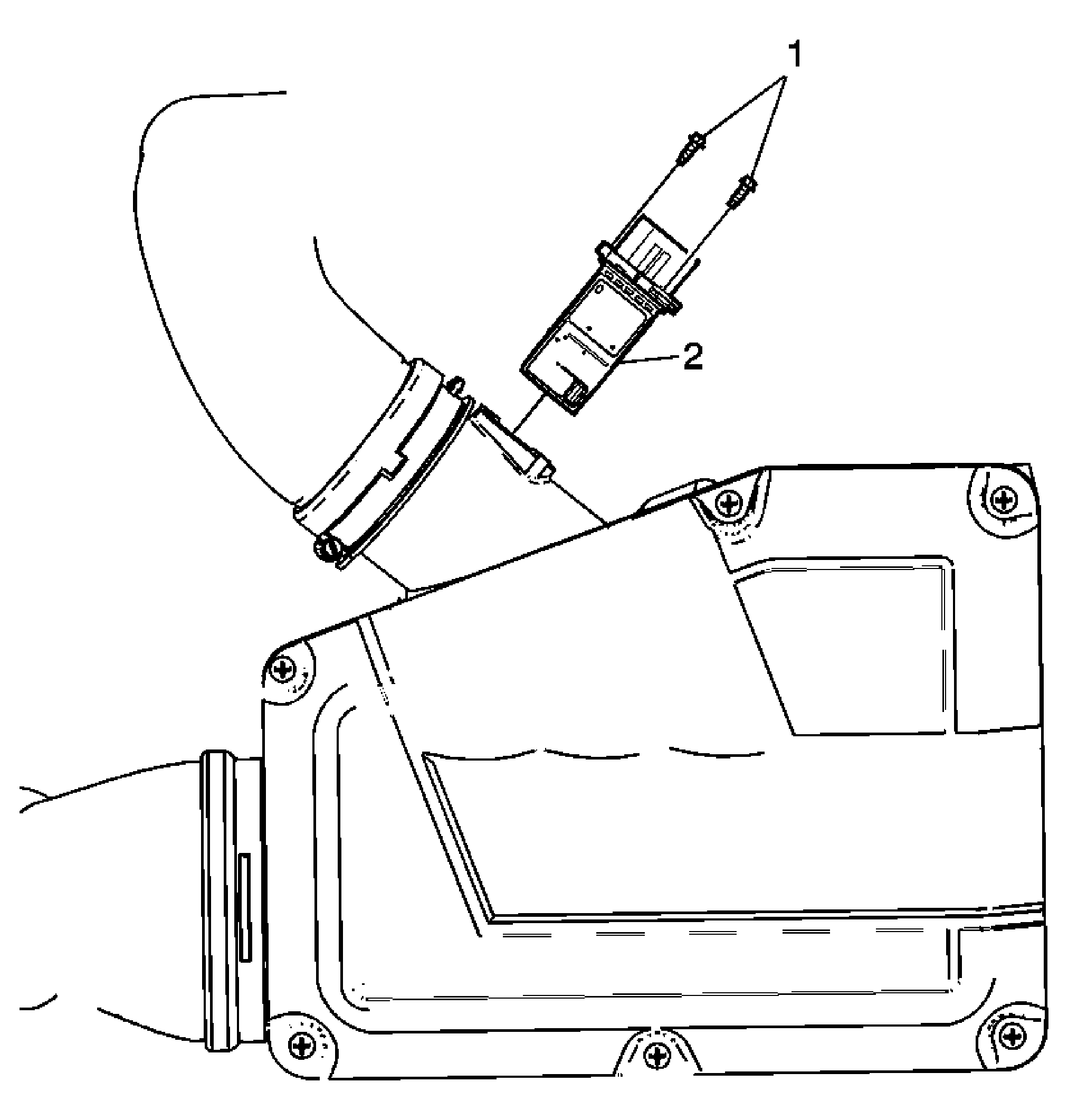

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Disconnect the negative cable. Refer to Battery Negative Cable Disconnection and Connection . |
|
| 1 | Mass Airflow (MAF) Sensor Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 0.6 N.m (5 lb in) |
| 2 | MAF Sensor |
