Door Component Views

Fig 1: Door Jamb Switches

GM1670175

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch - Left Front
2	Door Jamb Switch - Right Front
3	Door Jamb Switch - Right Rear (Except Panel Van)
4	Door Jamb Switch - Left Rear (Except Panel Van)

Fig 2: Driver Door Components

GM2193375

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Outside Rearview Mirror Motor - Driver
3	Door Lock Switch - Driver
4	Outside Rearview Mirror Switch
5	Window Switch - Driver
6	Speaker - Left Front Door
7	Window Motor - Driver
8	Inflatable Restraint Side Impact Sensor (SIS) Left (ASF)
9	Door Latch - Driver

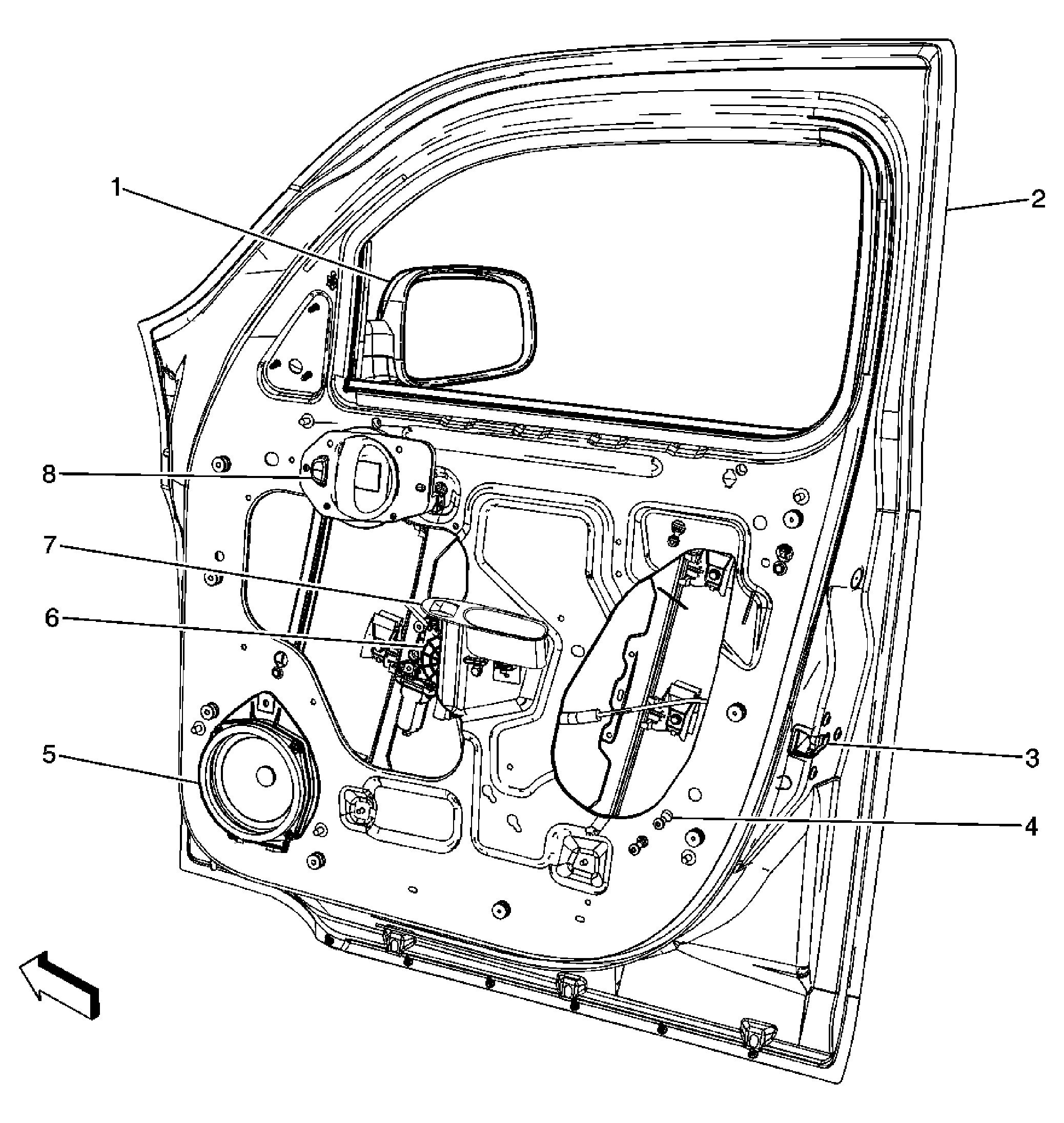

Fig 3: Passenger Door Components

GM2193376

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Motor - Passenger
2	Door Frame
3	Door Latch - Passenger
4	Inflatable Restraint Side Impact Sensor (SIS) Right (ASF)
5	Speaker - Right Front Door
6	Window Motor - Passenger
7	Window Switch - Passenger
8	Door Lock Switch - Passenger

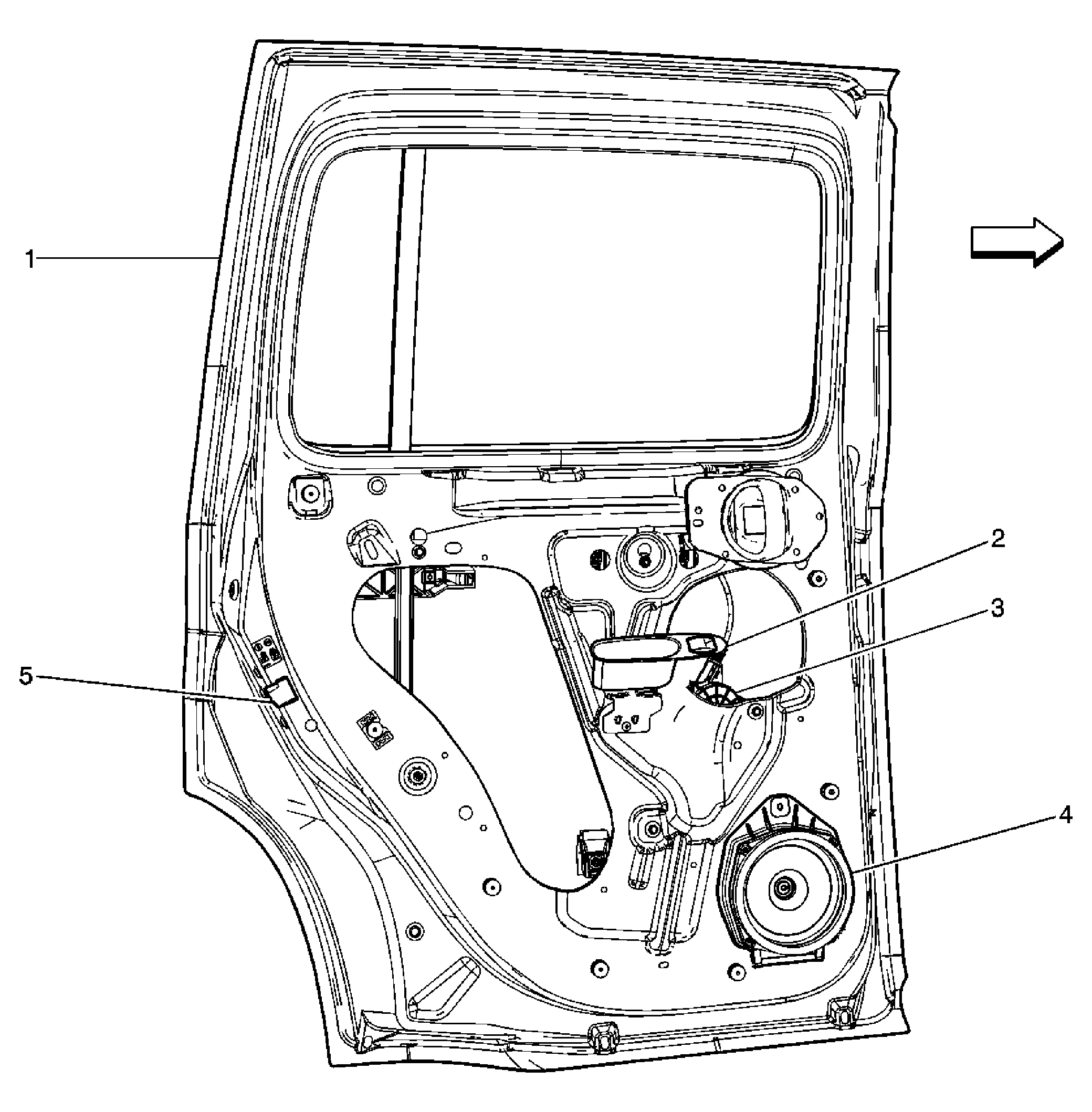

Fig 4: Left Rear Door (Except Panel Van)

GM2193377

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Window Switch - Left Rear
3	Window Motor - Left Rear
4	Speaker - Left Rear Door
5	Door Latch - Left Rear

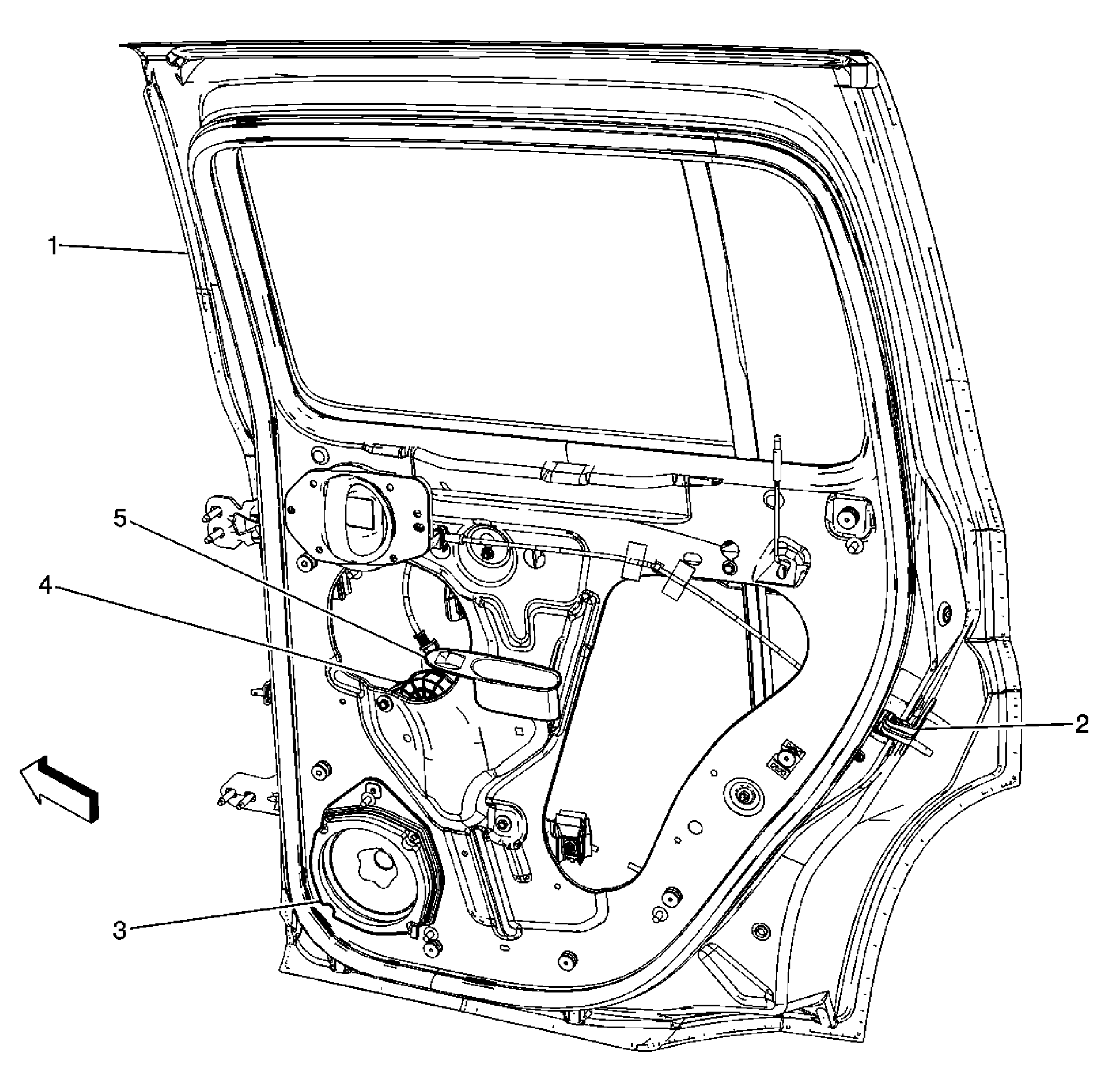

Fig 5: Right Rear Door (Except Panel Van)

GM2193378

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Door Latch - Right Rear
3	Speaker - Right Rear Door
4	Window Motor - Right Rear
5	Window Switch - Right Rear

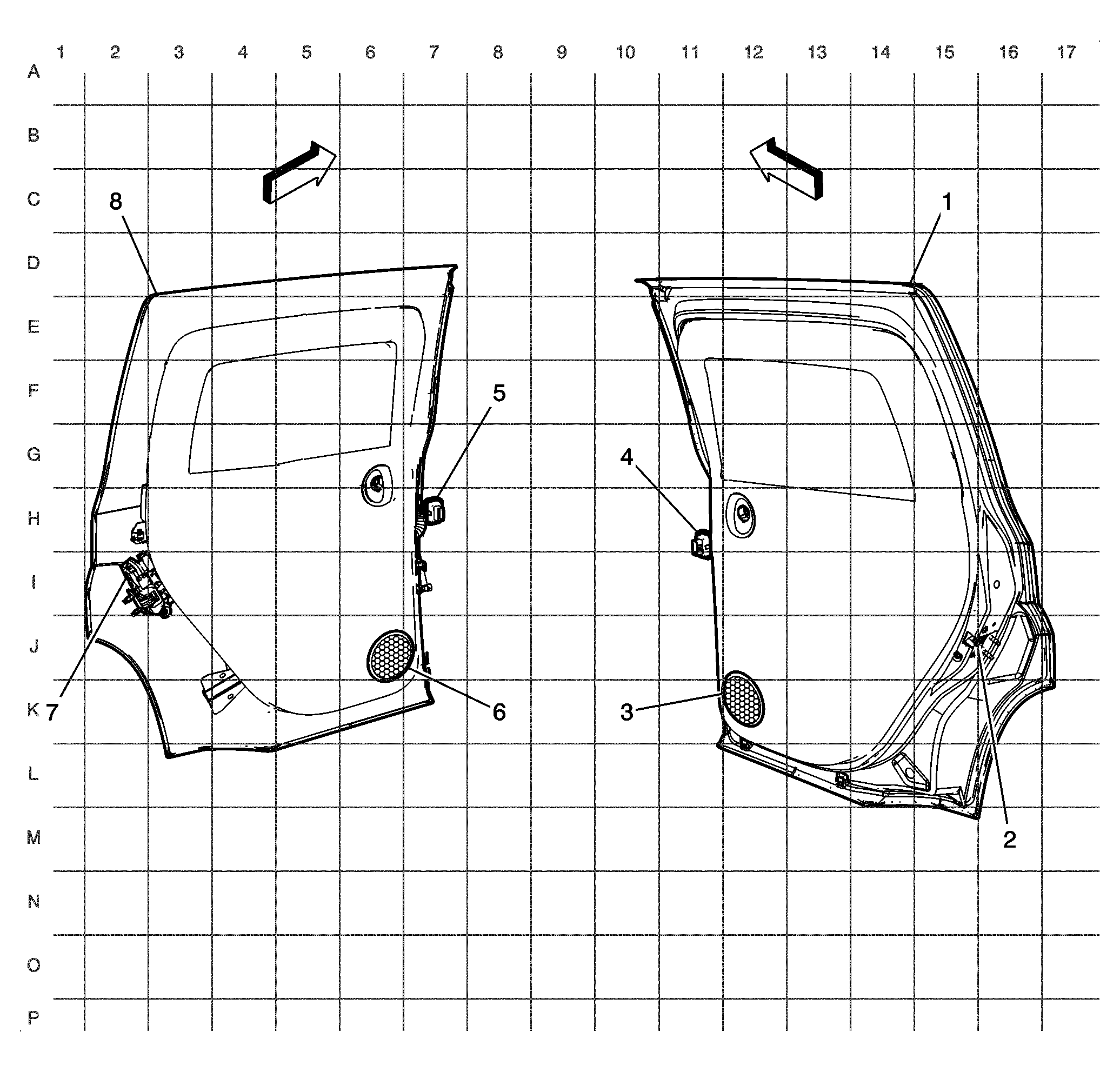

Fig 6: Rear Access Panel Components (Panel Van)

GM1863455

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Access Panel - Right Rear
2	Rear Access Panel Latch - Right Rear
3	Speaker - Right Rear
4	X700
5	X800
6	Speaker - Left Rear
7	Rear Access Panel Latch - Left Rear
8	Rear Access Panel - Left Rear
