Ground Views

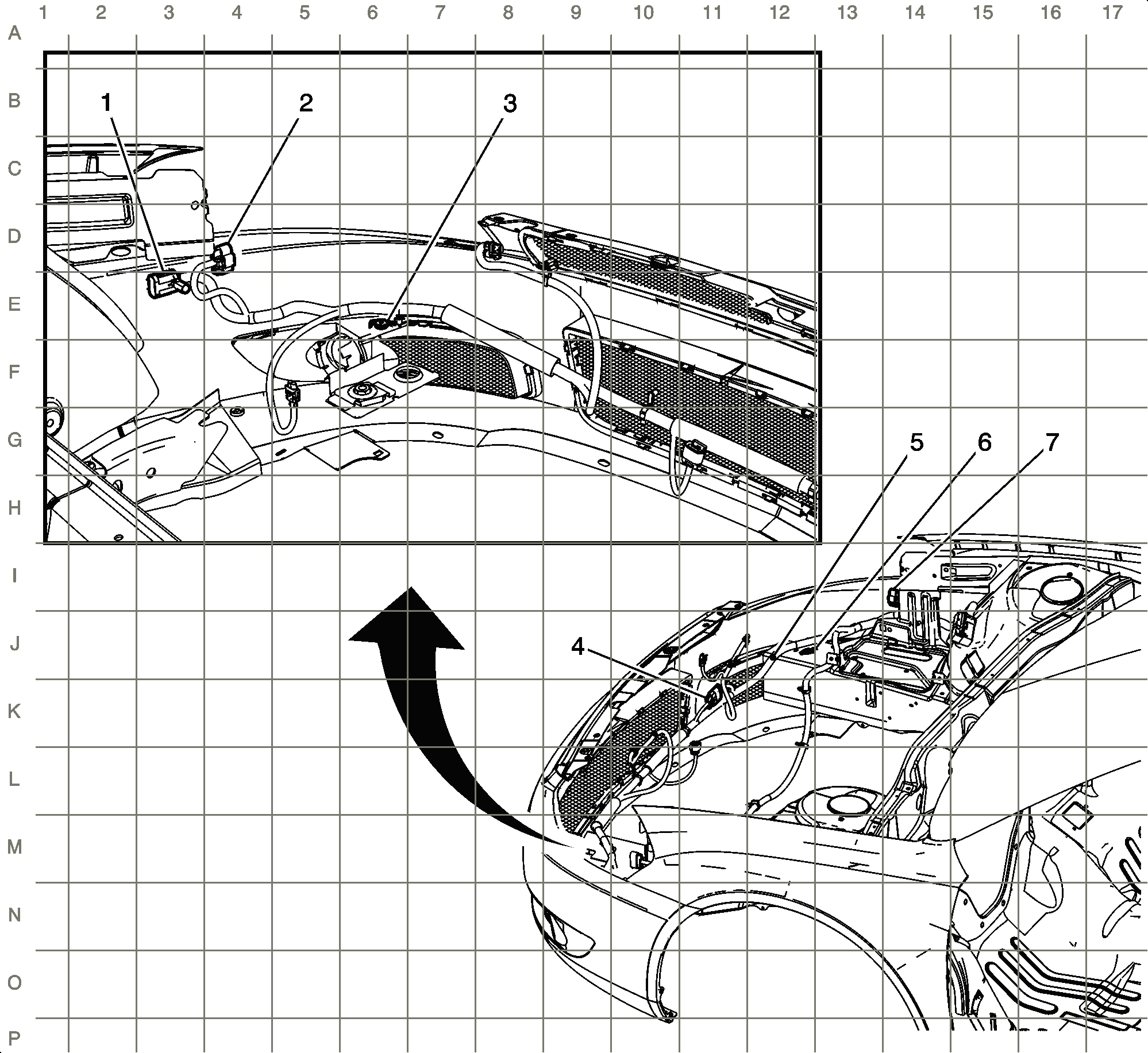

Fig 1: Forward Lamp Harness
GM1913217Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X120
2 X141
3 G101
4 X122 (9C1,9C3 w/o 6J7)
5 J124
6 G101
7 X142

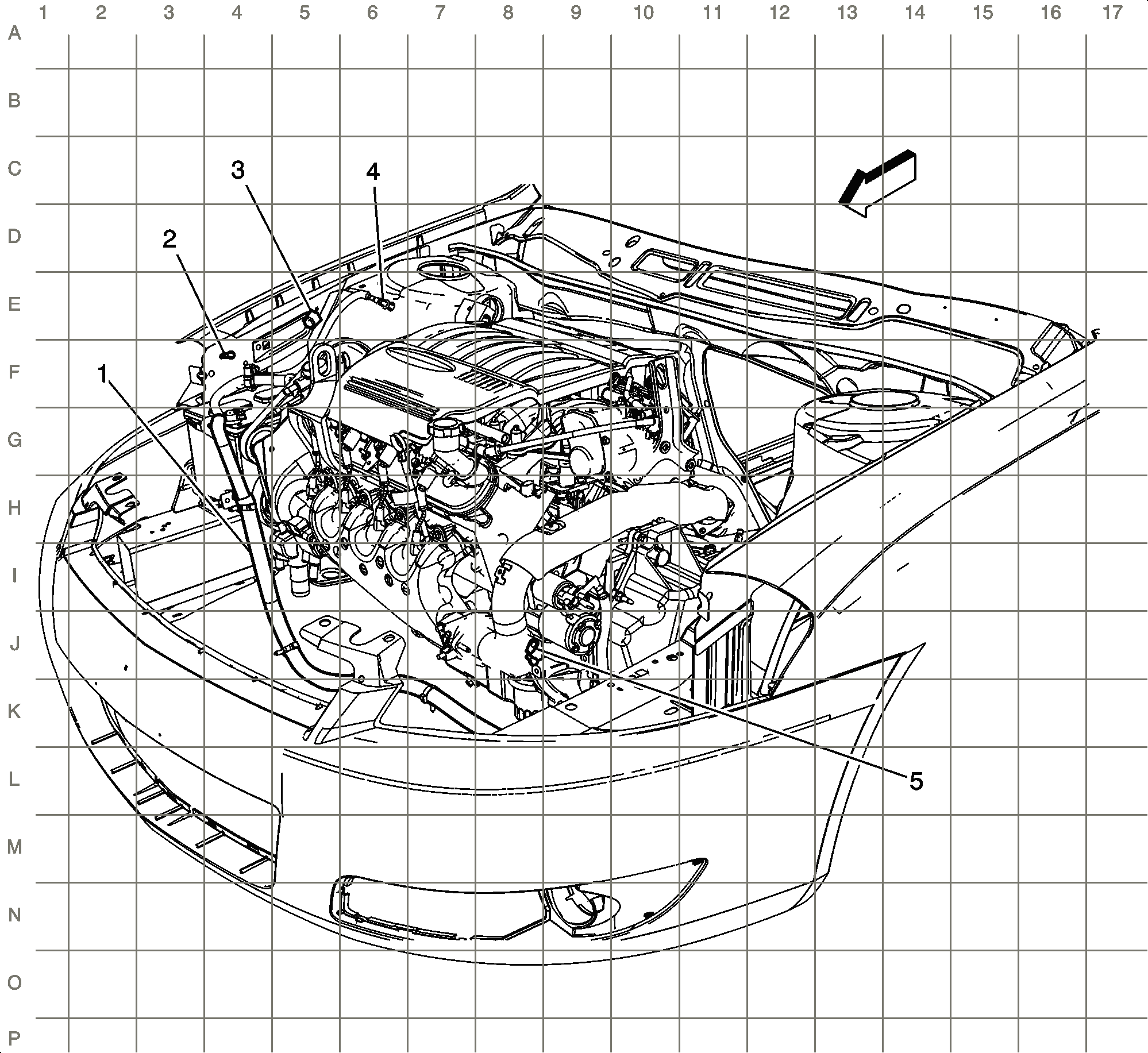

Fig 2: Battery Cable Routing (Typical)
GM1913010Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery Cables
2 G102
3 X105
4 Positive Voltage Stud
5 G111

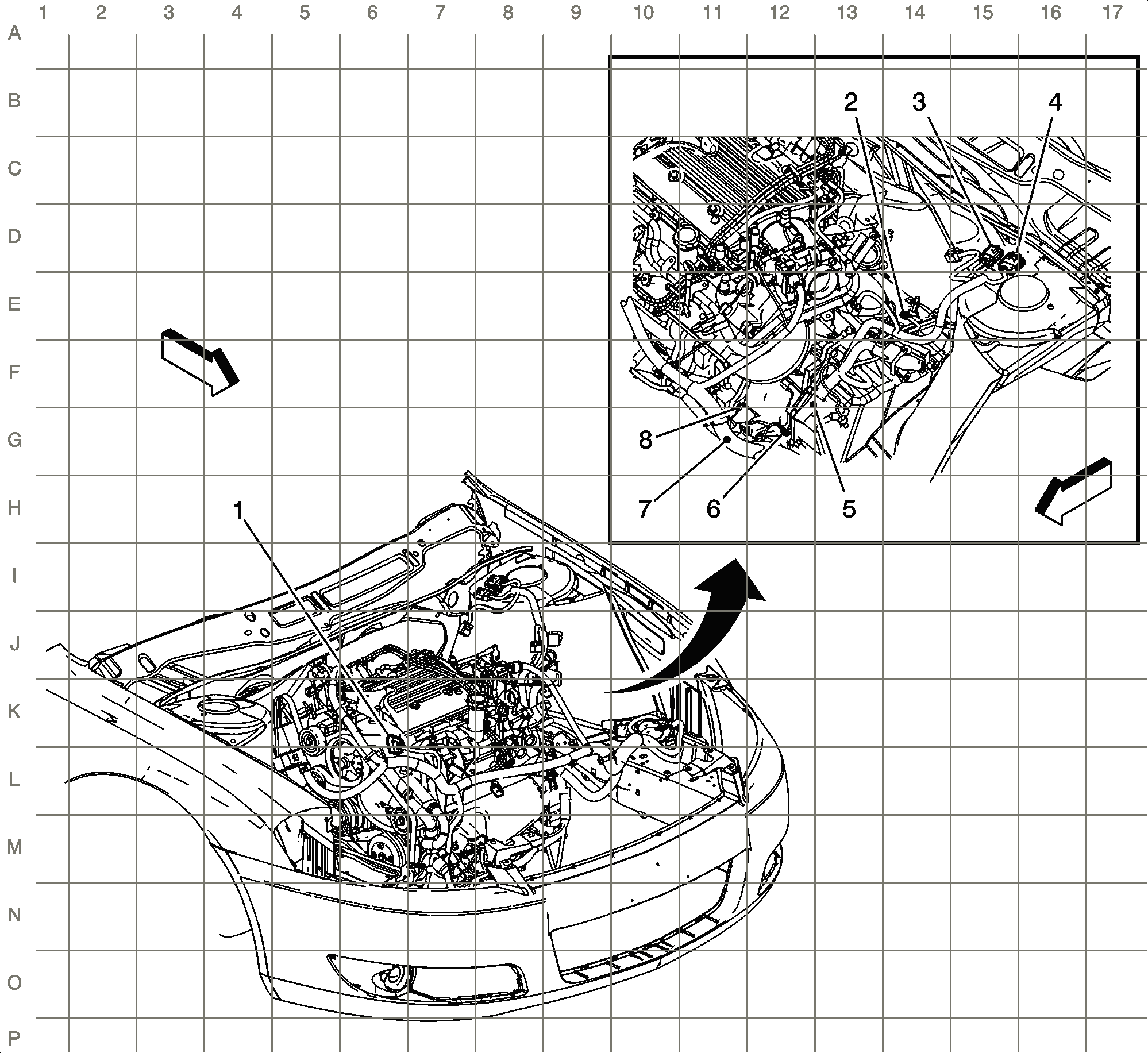

Fig 3: Front of the Engine Compartment Harness Routing
GM1912967Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X102
2 G115
3 X101
4 X111
5 J105
6 G113
7 J101
8 G111

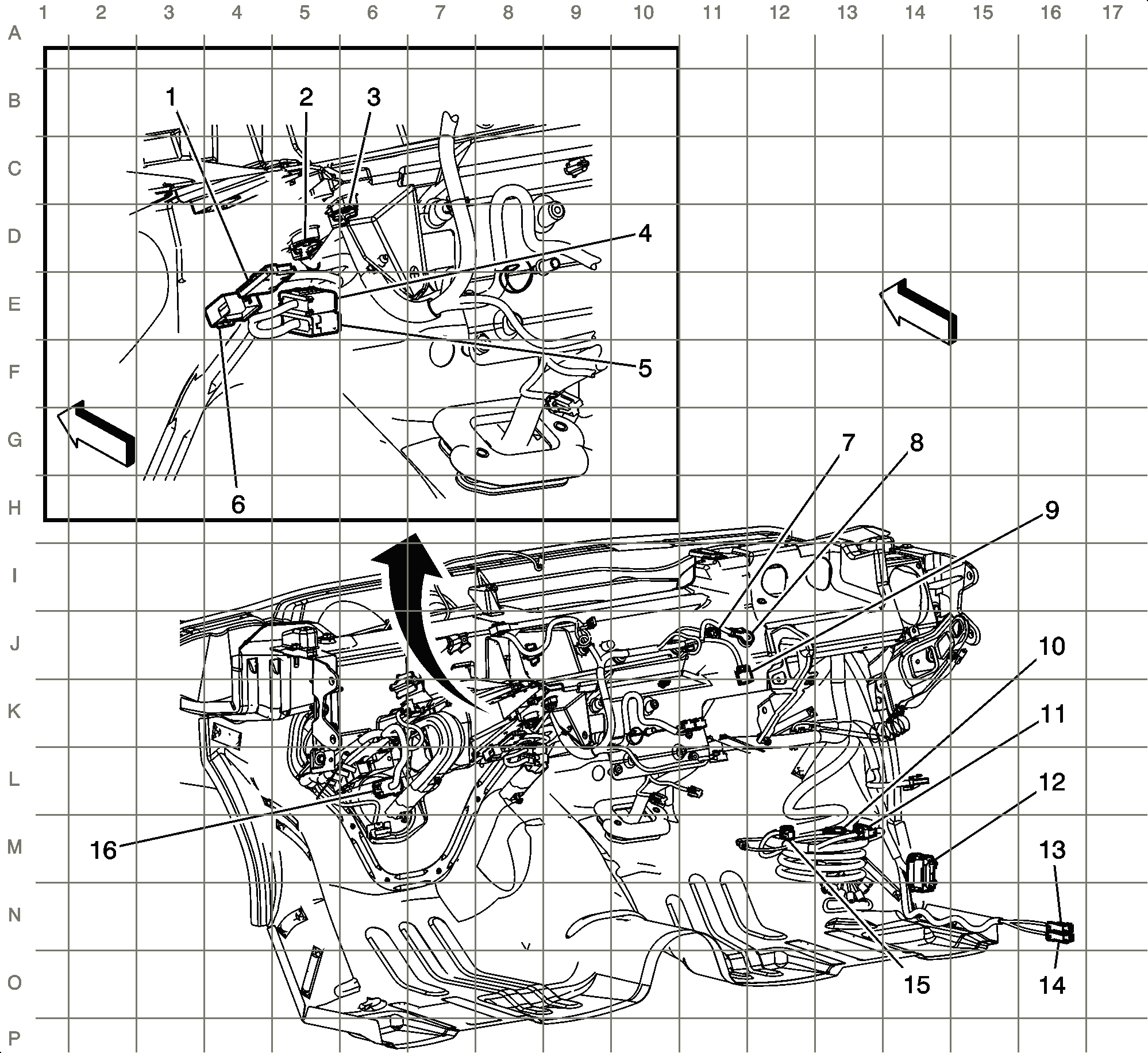

Fig 4: Instrument Panel Harness Routing - Instrument Panel
GM1912941Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 JX205
2 G202
3 G201
4 JX206
5 JX207
6 X201
7 G200
8 G204 (9C1, 9C3)
9 X210
10 X266 (9C1, 9C3)
11 X267 (9C1, 9C3)
12 X200
13 X360 (9C1, 9C3)
14 X362 (9C1, 9C3)
15 X297 (9C1, 9C3)
16 X203

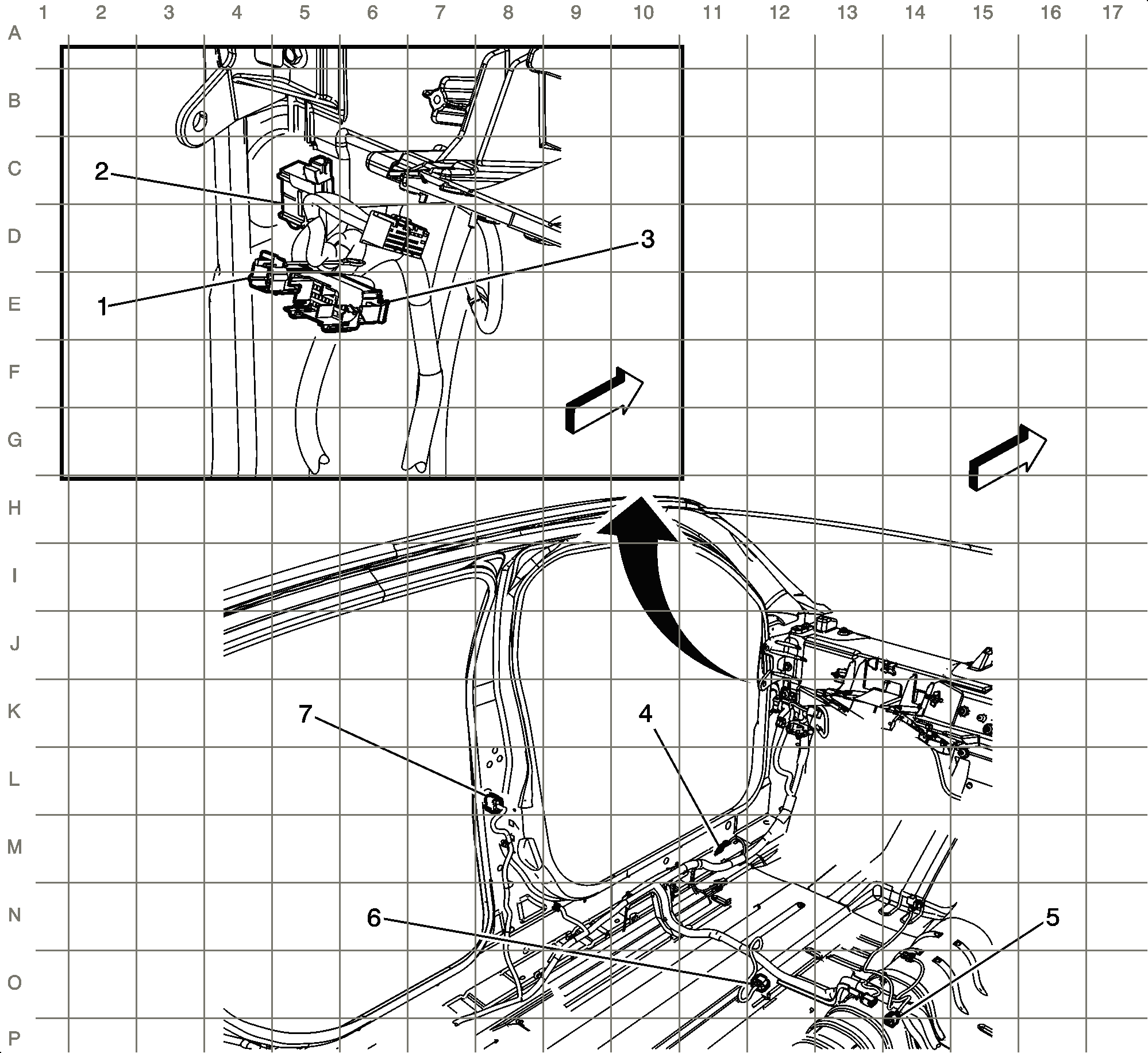

Fig 5: Body Harness Routing - Left Front Passenger Compartment
GM1912936Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X250
2 X301
3 X203
4 G301
5 X340
6 X311
7 X355

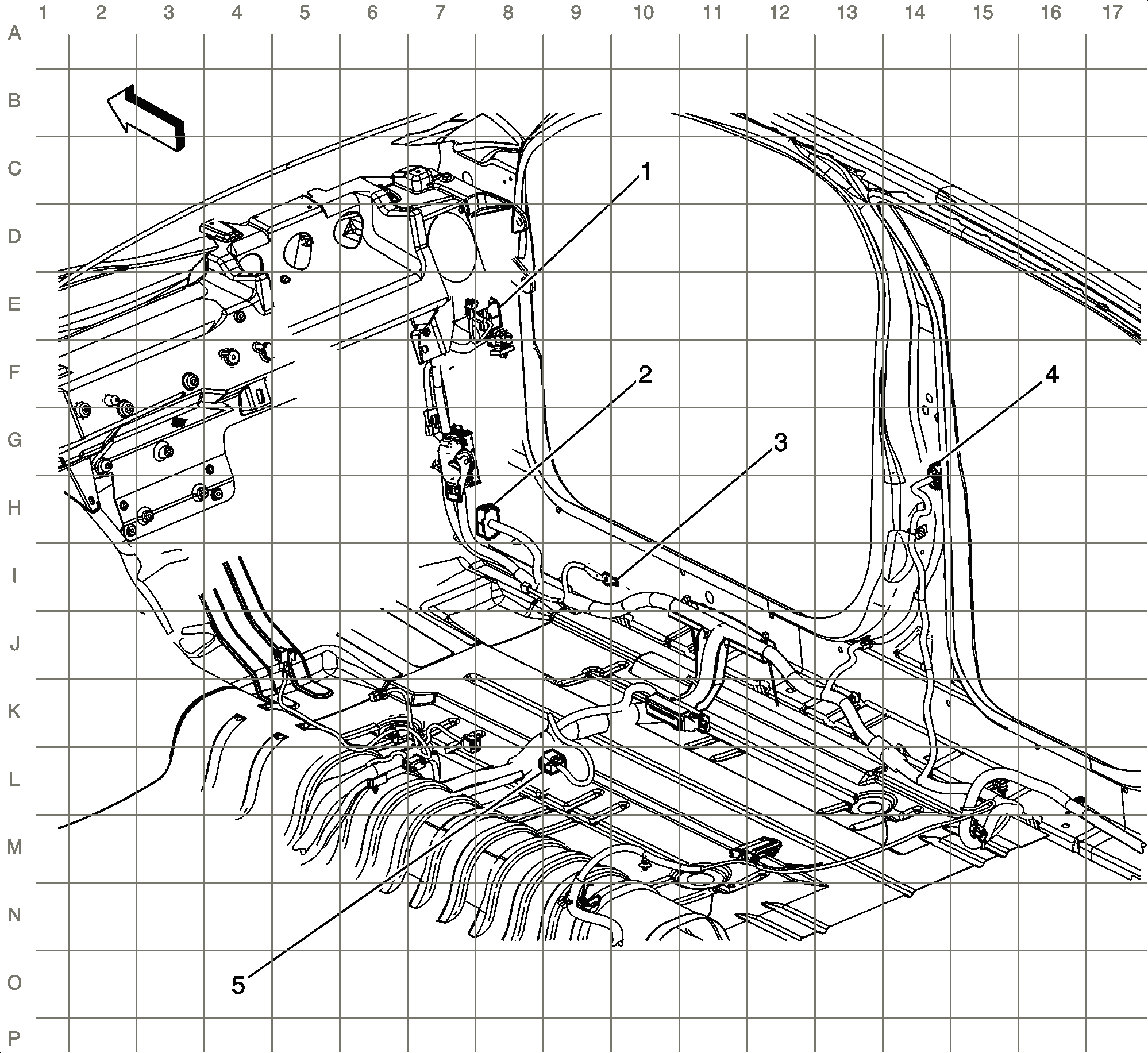

Fig 6: Body Harness Routing - Right Front Passenger Compartment
GM1912934Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X302
2 X360 (9C1, 9C3)
3 G302
4 X356
5 X313

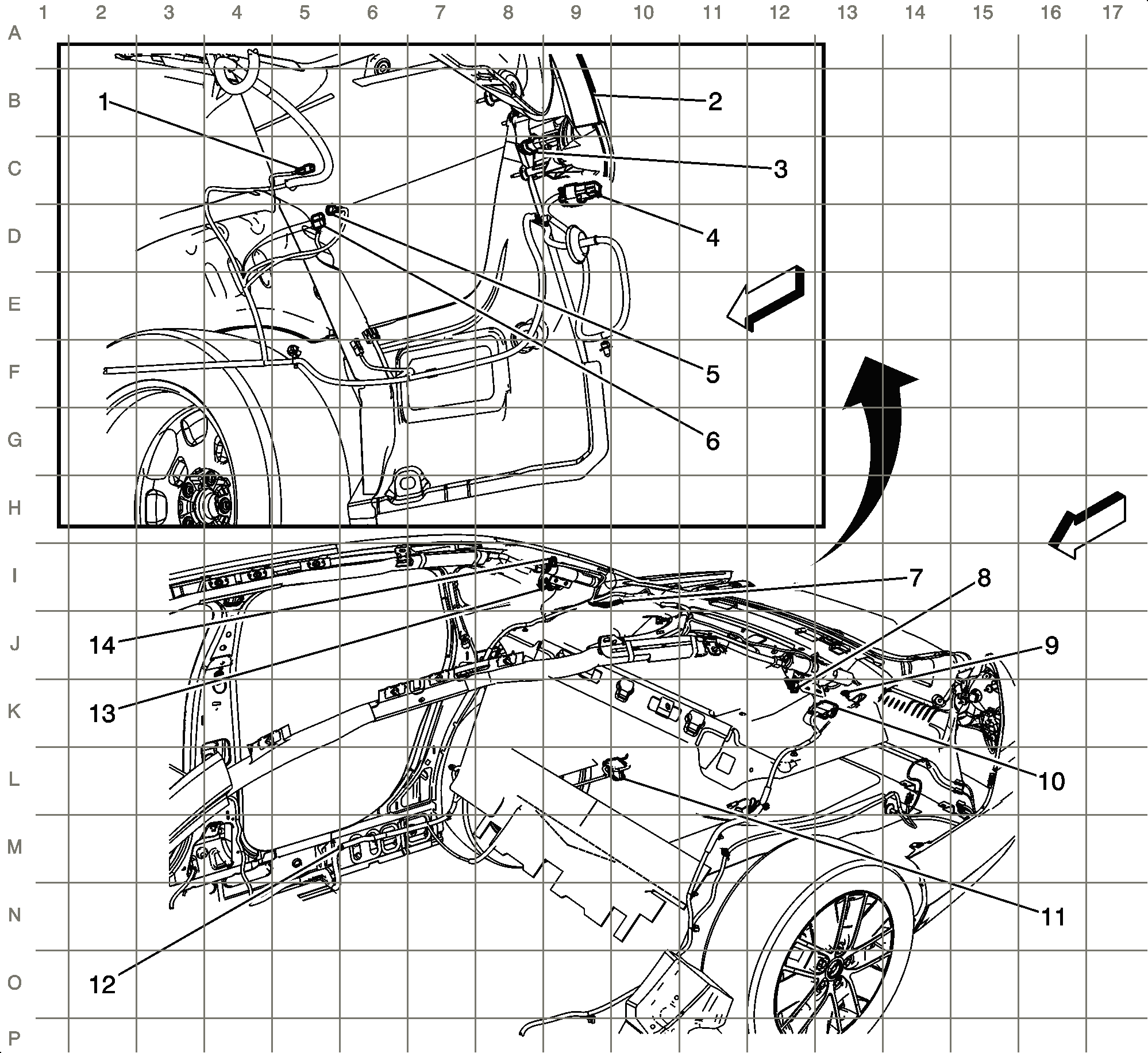

Fig 7: Body Harness Routing - Rear Compartment Area
GM1912859Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X409 (9C1, 9C3)
2 Tail Lamp - RH
3 X402
4 X406
5 Junction Block - Rear (6J1) Positive Voltage Stud
6 Junction Block - Rear (6J1) Positive Voltage Stud
7 G404
8 X412
9 G403
10 X490
11 X405
12 J324
13 X414
14 X322 (9C1, 9C3) Taped to Harness

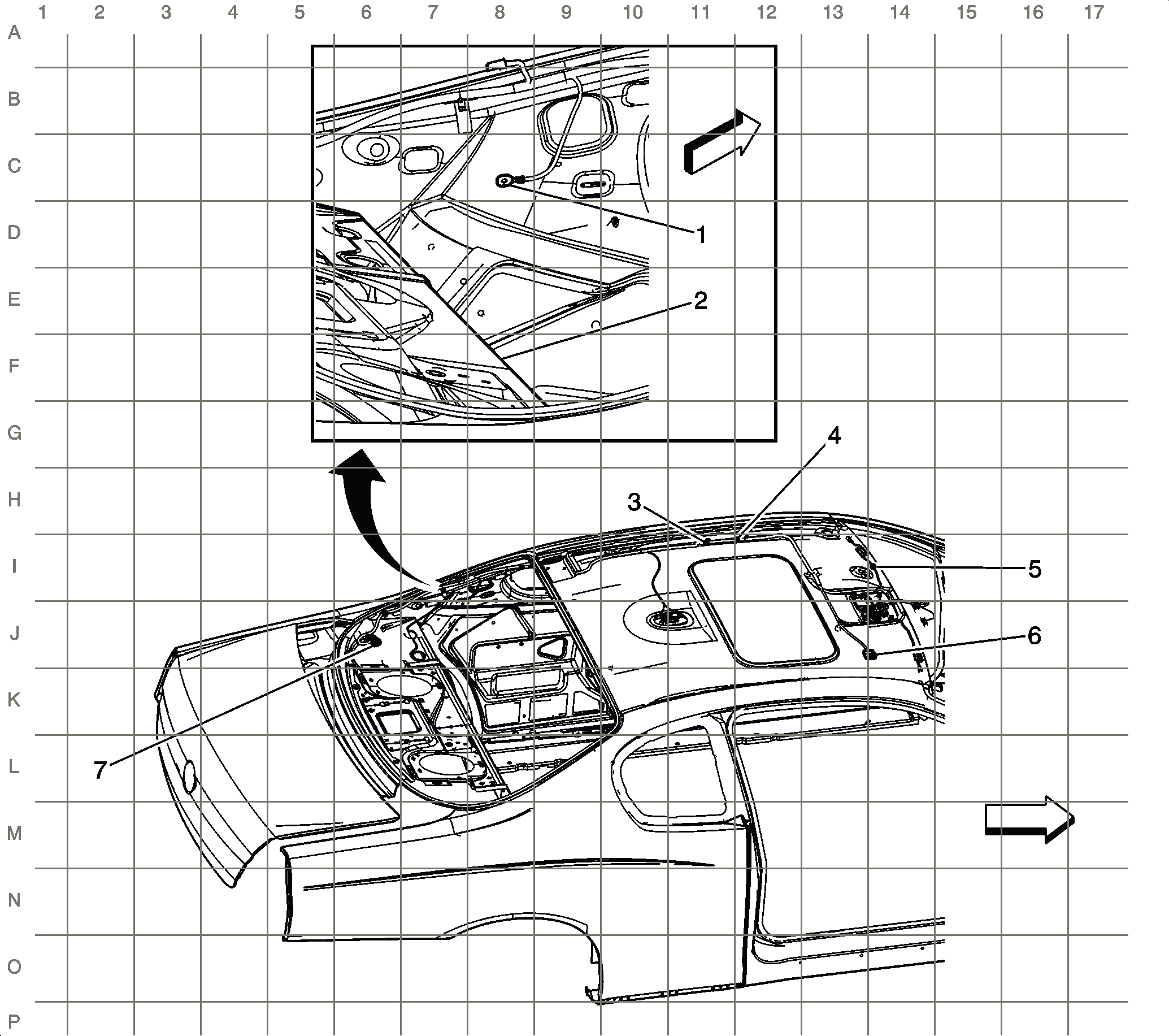

Fig 8: Sunroof and Headliner Harness Routing
GM1568647Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G403
2 Rear Shelf
3 J393
4 J390
5 J364
6 X398 (CF5)
7 X490
