Data Communication Schematics

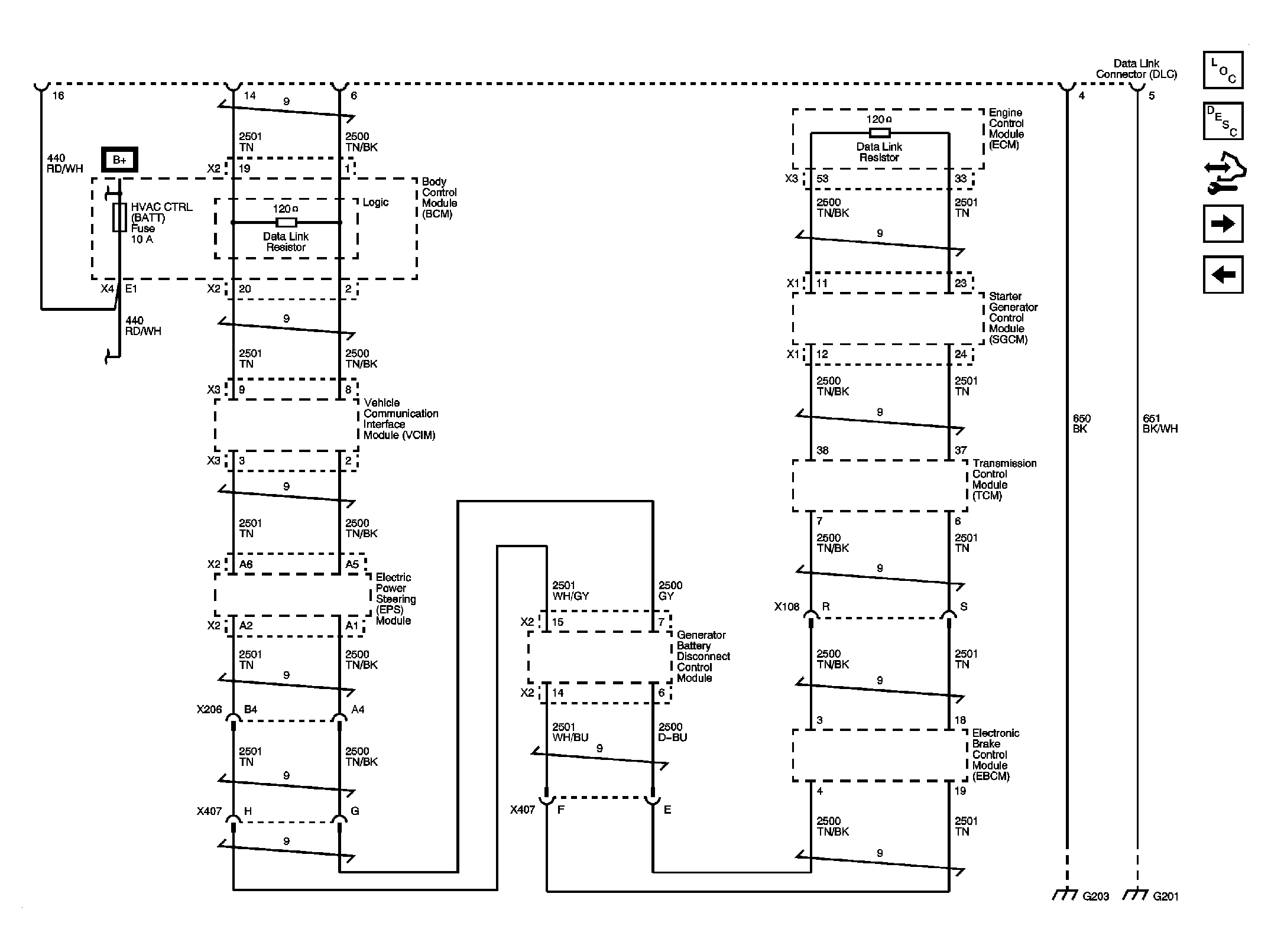

Fig 1: Power, Ground, and High Speed Serial Data (without HP7)

Courtesy of GENERAL MOTORS CORP.

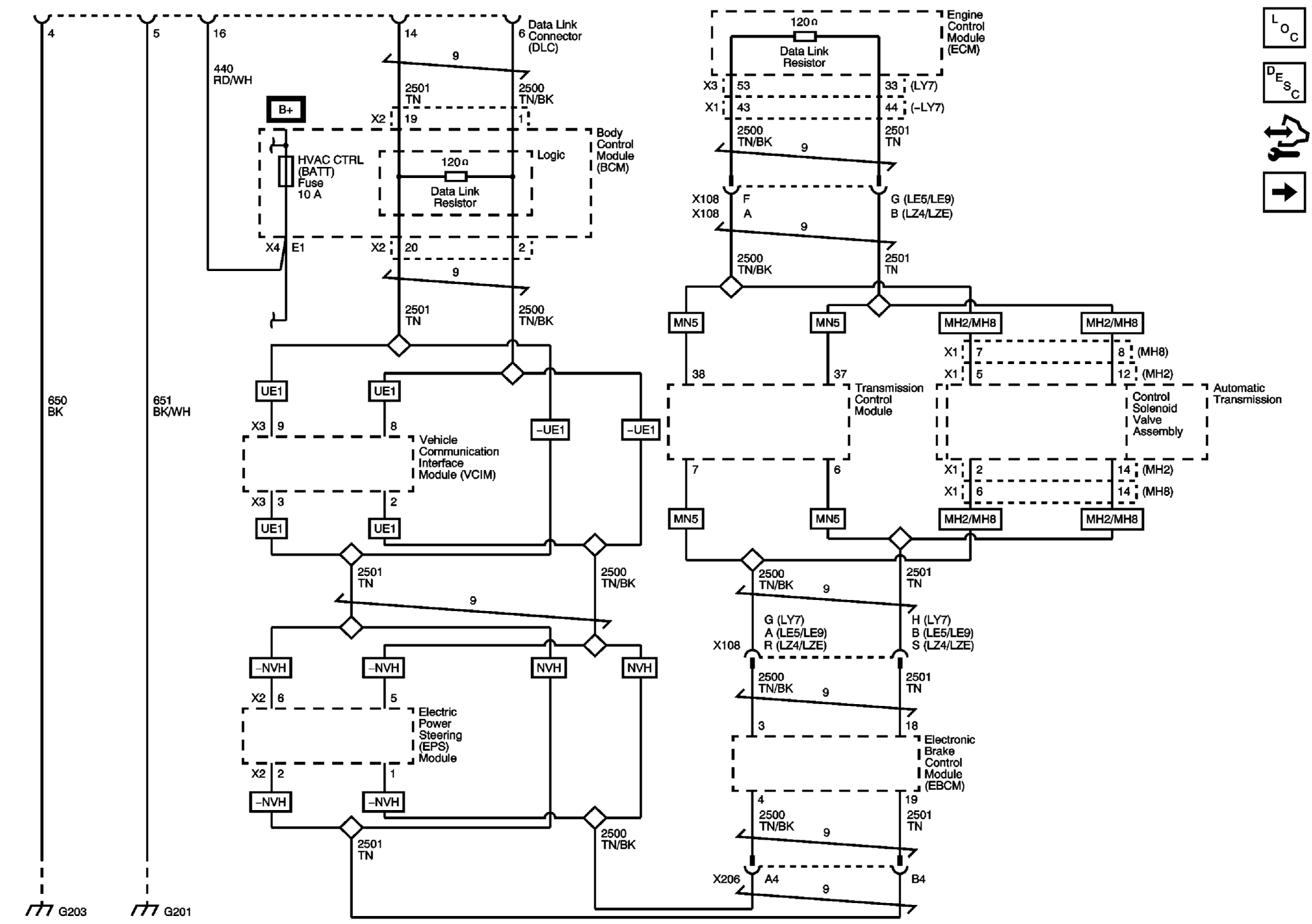

Fig 2: Power, Ground, and High Speed Serial Data (HP7)

Courtesy of GENERAL MOTORS CORP.

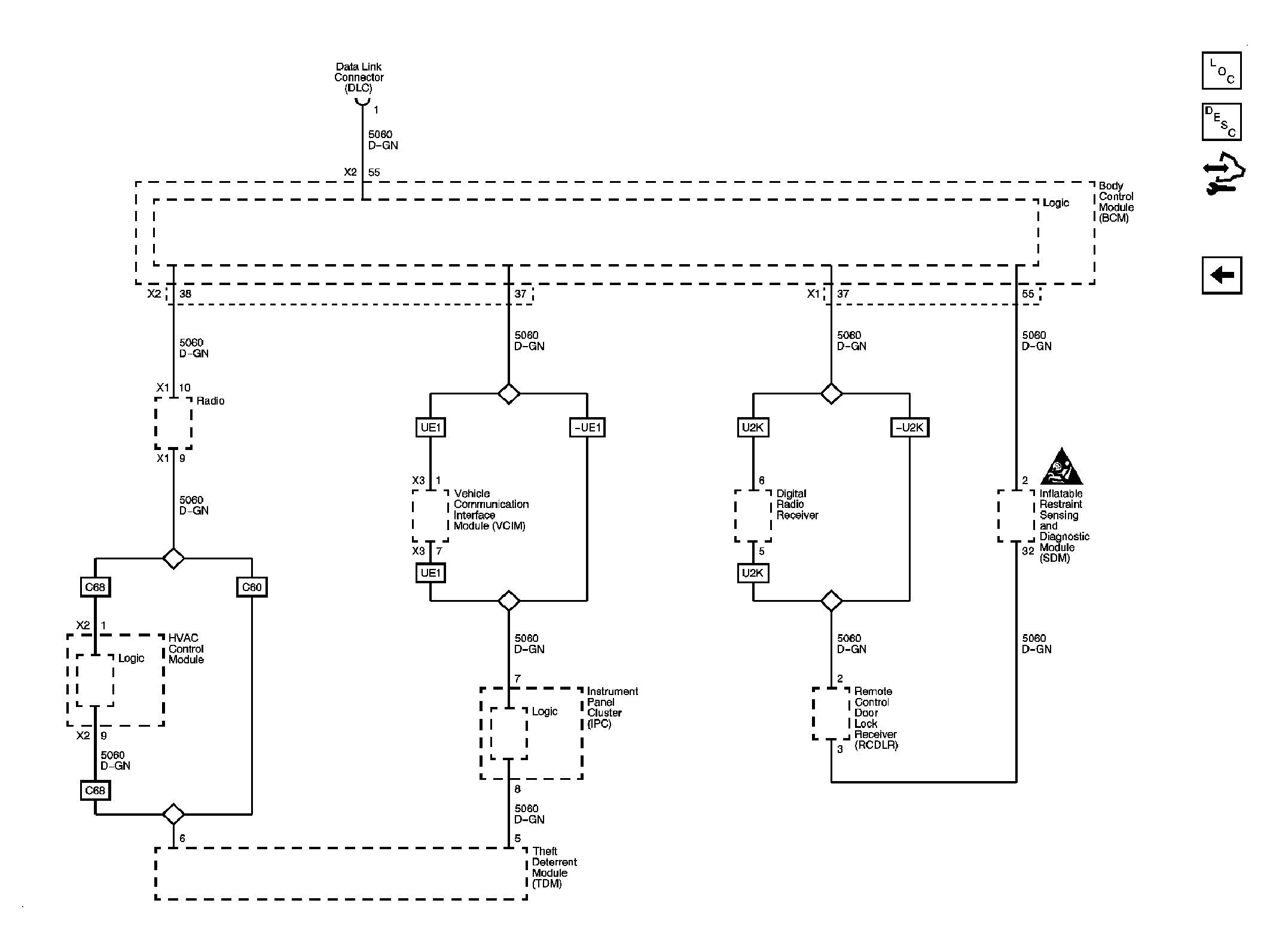

Fig 3: Low Speed Serial Data

Courtesy of GENERAL MOTORS CORP.
