Installation Procedure

    Fig 1: View Of CKP Sensor
    GM1587763Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the CKP sensor O-ring with clean engine oil.
  2. Remove the CKP sensor.
    3. CAUTION: Refer to Fastener Caution .
  3. Remove the CKP sensor stud.

    Tighten:  Tighten the stud to 10 N.m (89 lb in).

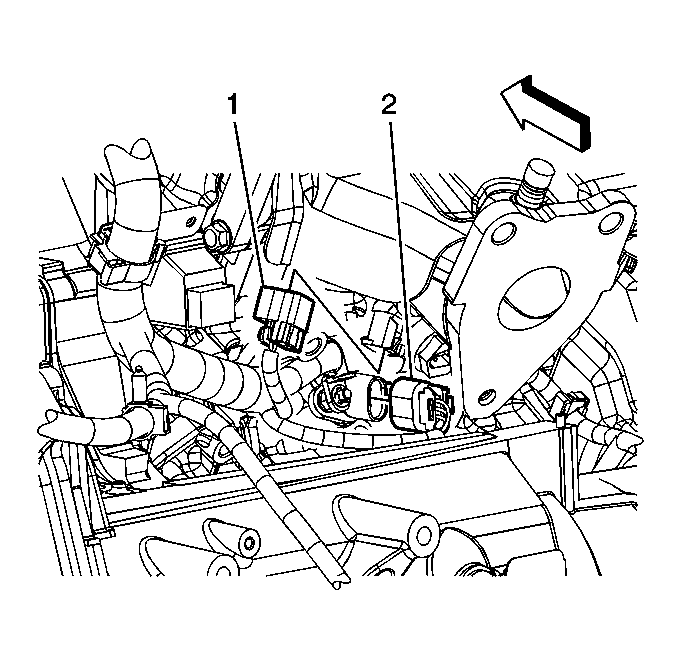

    4. Fig 2: Identifying Knock Sensor & CKP Engine Wiring Harness Connector
    GM1777192Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine wiring harness electrical connector (2) to the CKP sensor.
  5. Lower the vehicle.
  6. Perform the CKP system variation learn procedure. Refer to Crankshaft Position System Variation Learn .
