High Mount Stop Lamp Replacement (Traverse)

WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

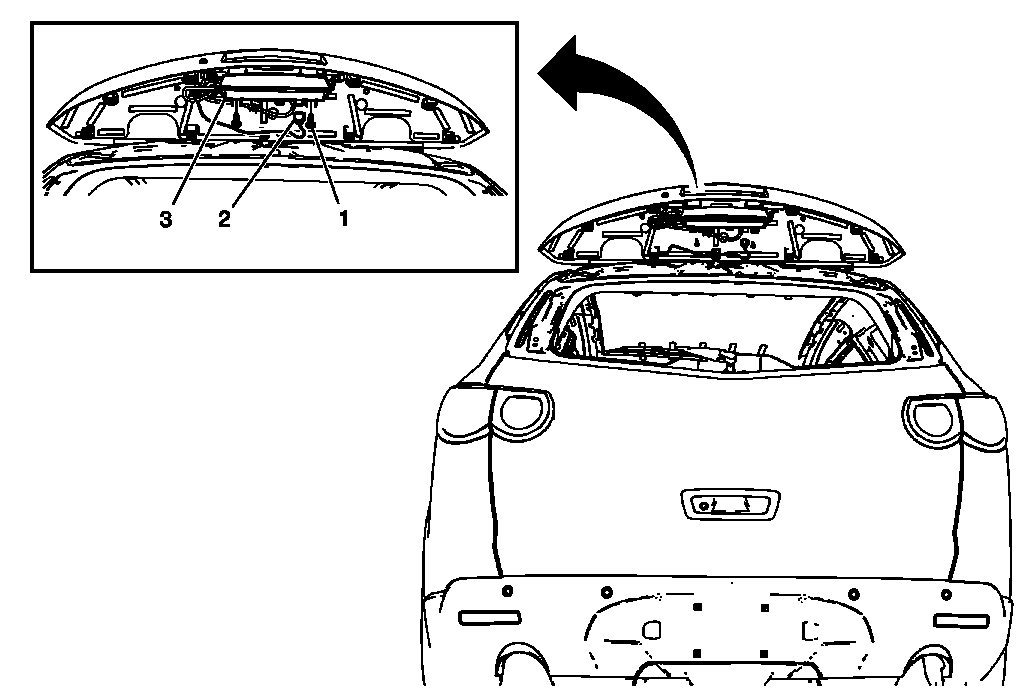

Fig 1: Identifying High Mount Stop Lamp (Traverse)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Open the liftgate. Remove the rear spoiler. Refer to Rear Spoiler Replacement (Enclave, Traverse) , Rear Spoiler Replacement (Acadia) . Place the rear spoiler on a clean protected surface in order to remove the Light Emitted Diode (LED) high mounted stop lamp.
1	High Mount Stop Lamp Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	High Mount Stop Lamp Electrical Connector
3	High Mount Stop Lamp Assembly Procedure Remove the high mount (LED) stop lamp from the bottom side of the rear spoiler.
