Data Communication Schematics

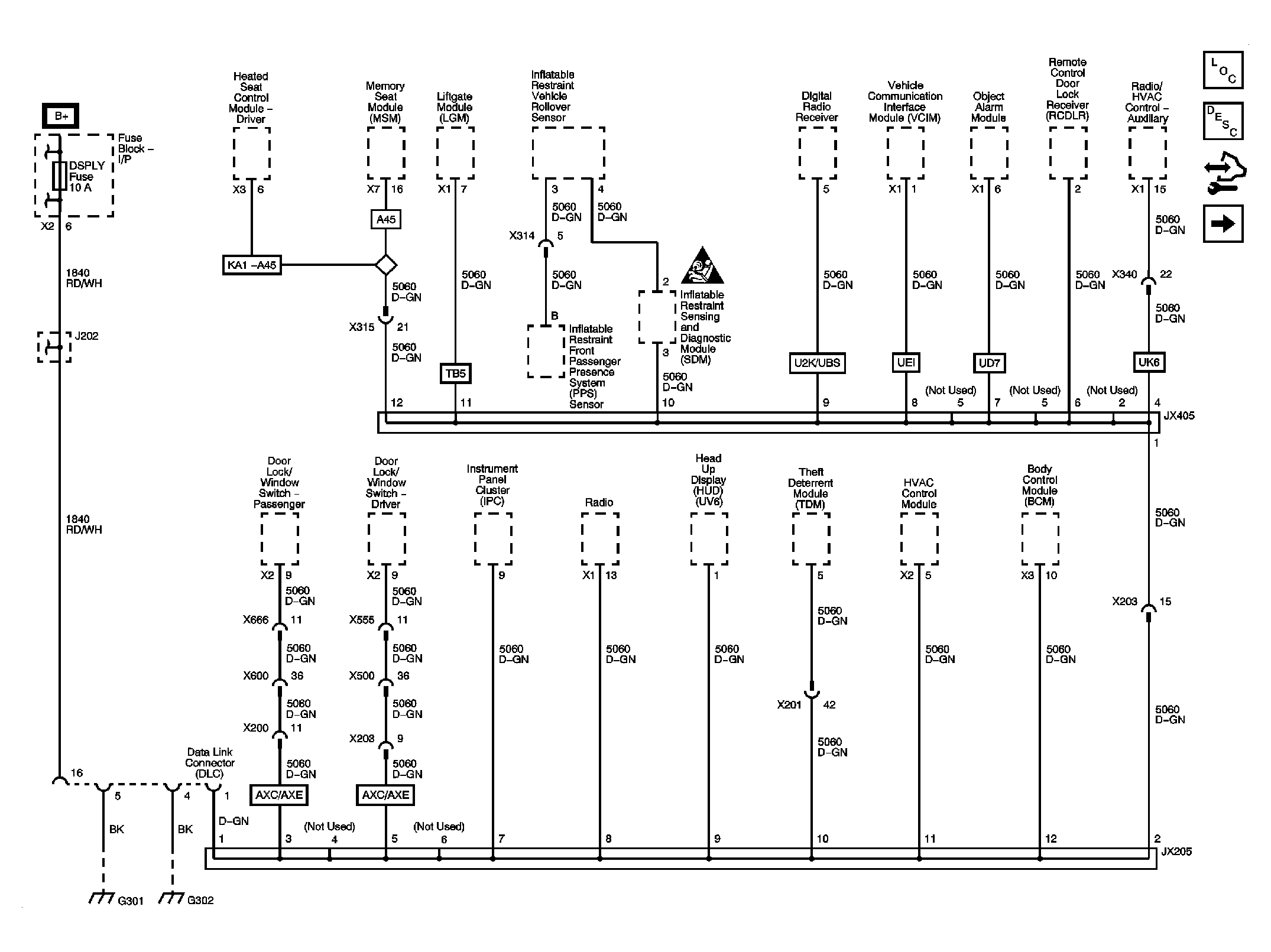

Fig 1: Data Communication Circuit Schematic - Low Speed GMLAN

Courtesy of GENERAL MOTORS CORP.

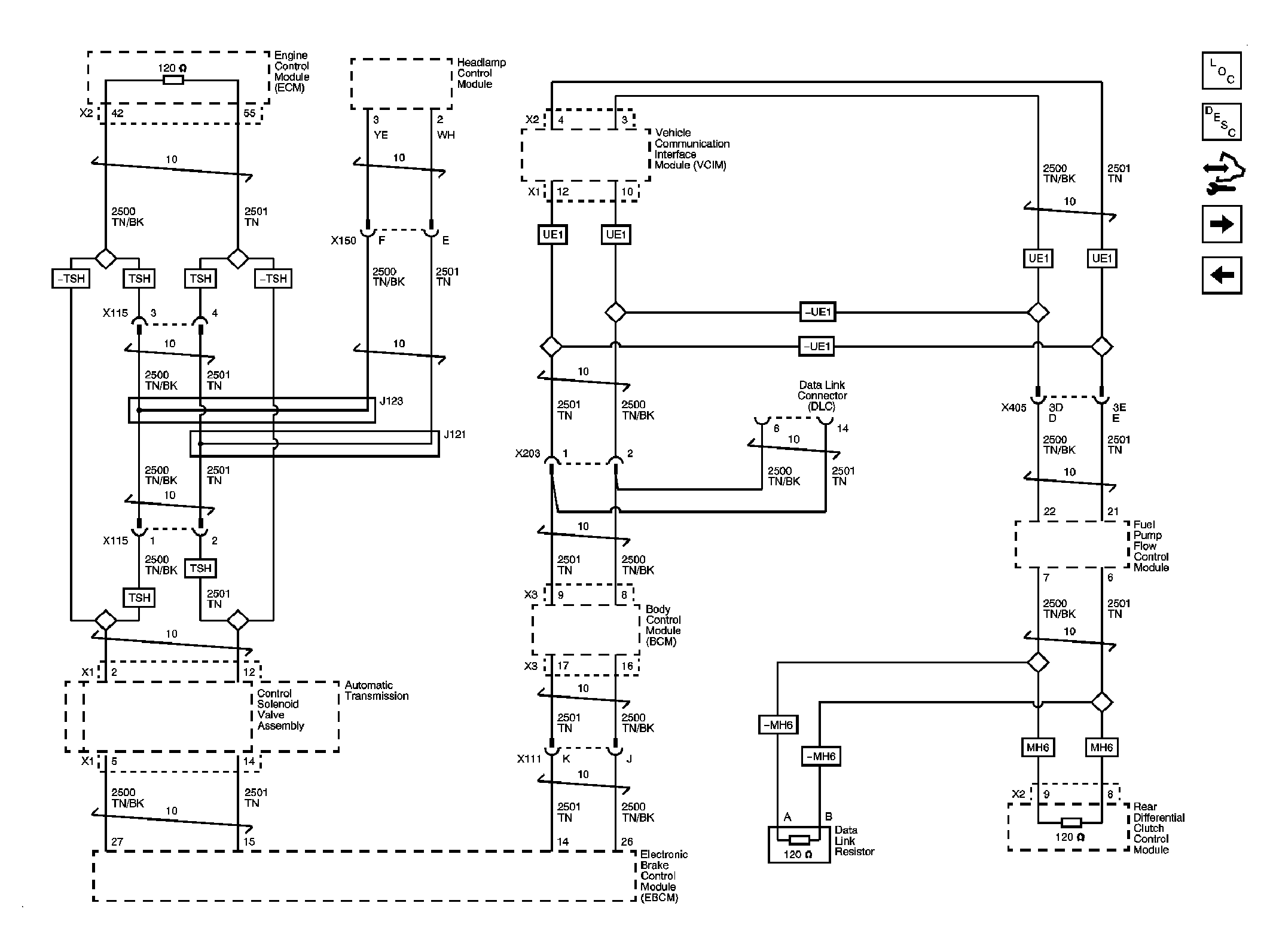

Fig 2: Data Communication Circuit Schematic - High Speed GMLAN

Courtesy of GENERAL MOTORS CORP.

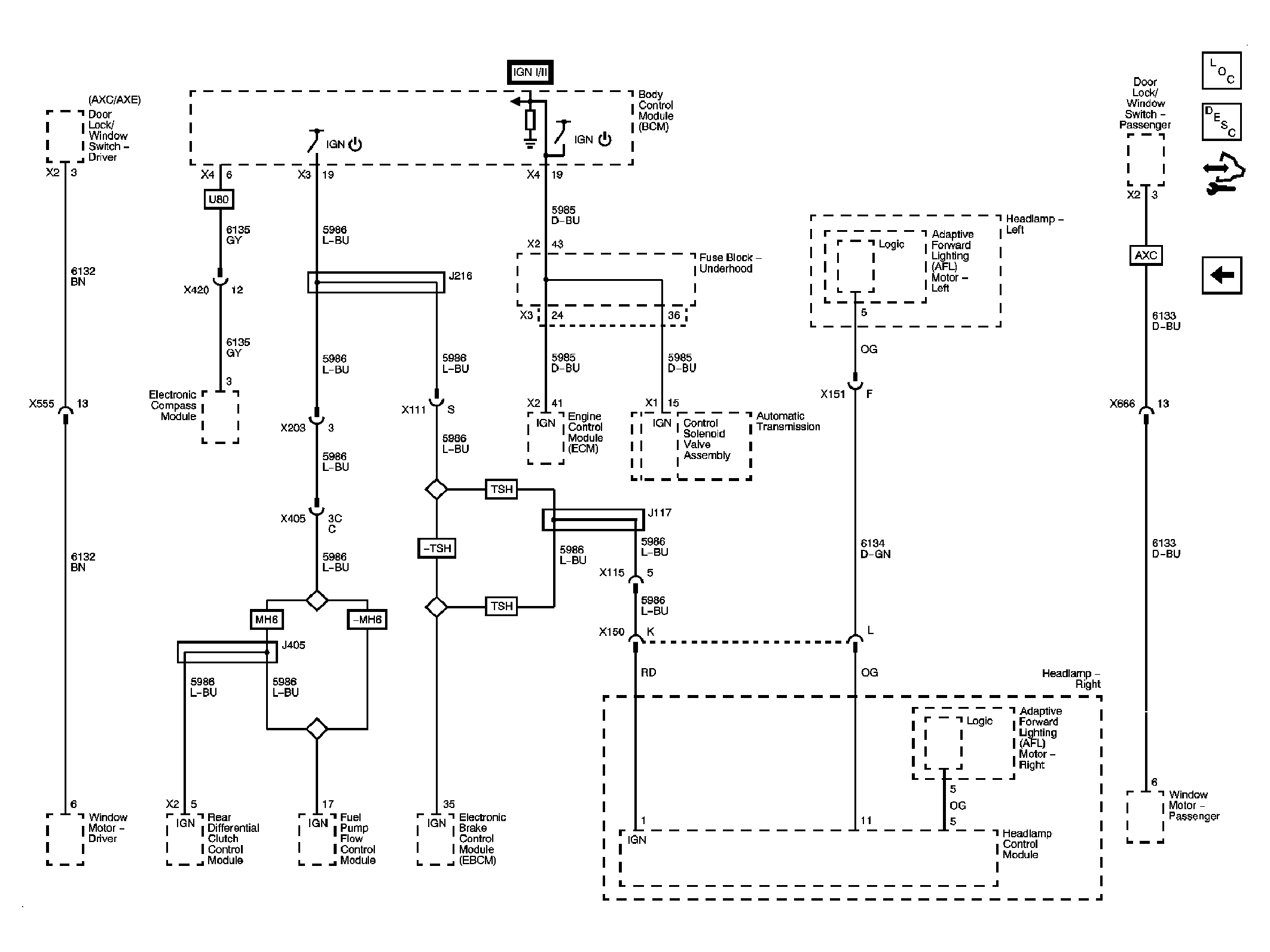

Fig 3: Communication Enable and Local Interconnect Network Circuit Schematic - (LIN)

Courtesy of GENERAL MOTORS CORP.
