Installation Procedure

    Fig 1: Identifying Crankshaft Position (CKP) Sensor
    GM1311144Courtesy of GENERAL MOTORS CORP.
  1. Install the crankshaft position sensor.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the crankshaft position sensor bolt and tighten to 10 N.m (89 lb in).

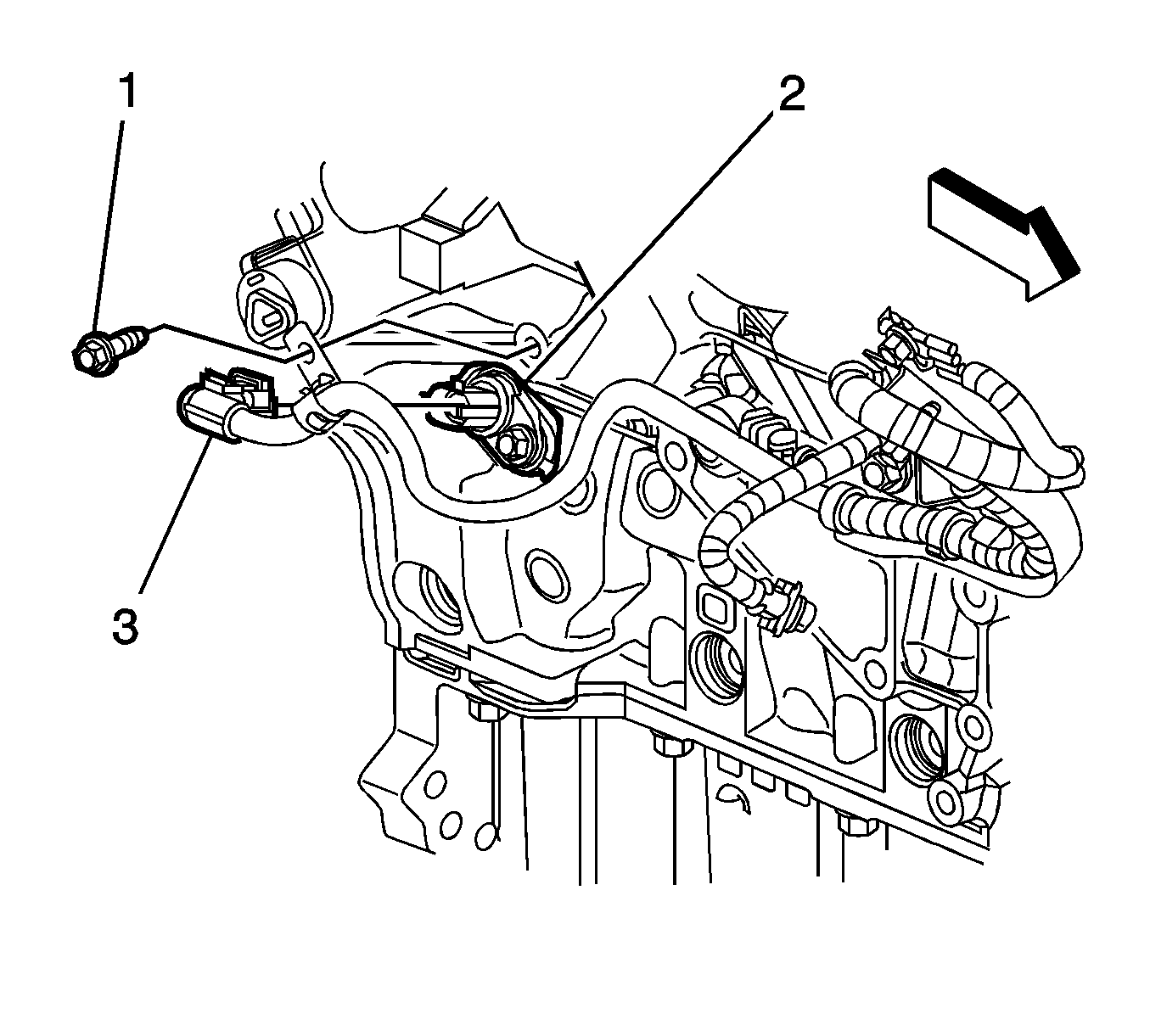

    3. Fig 2: Locating CKP Electrical Connector
    GM887868Courtesy of GENERAL MOTORS CORP.
  3. Connect the CKP electrical connector (3).
  4. Lower the vehicle.
