Shift Lock Control Wiring Schematics

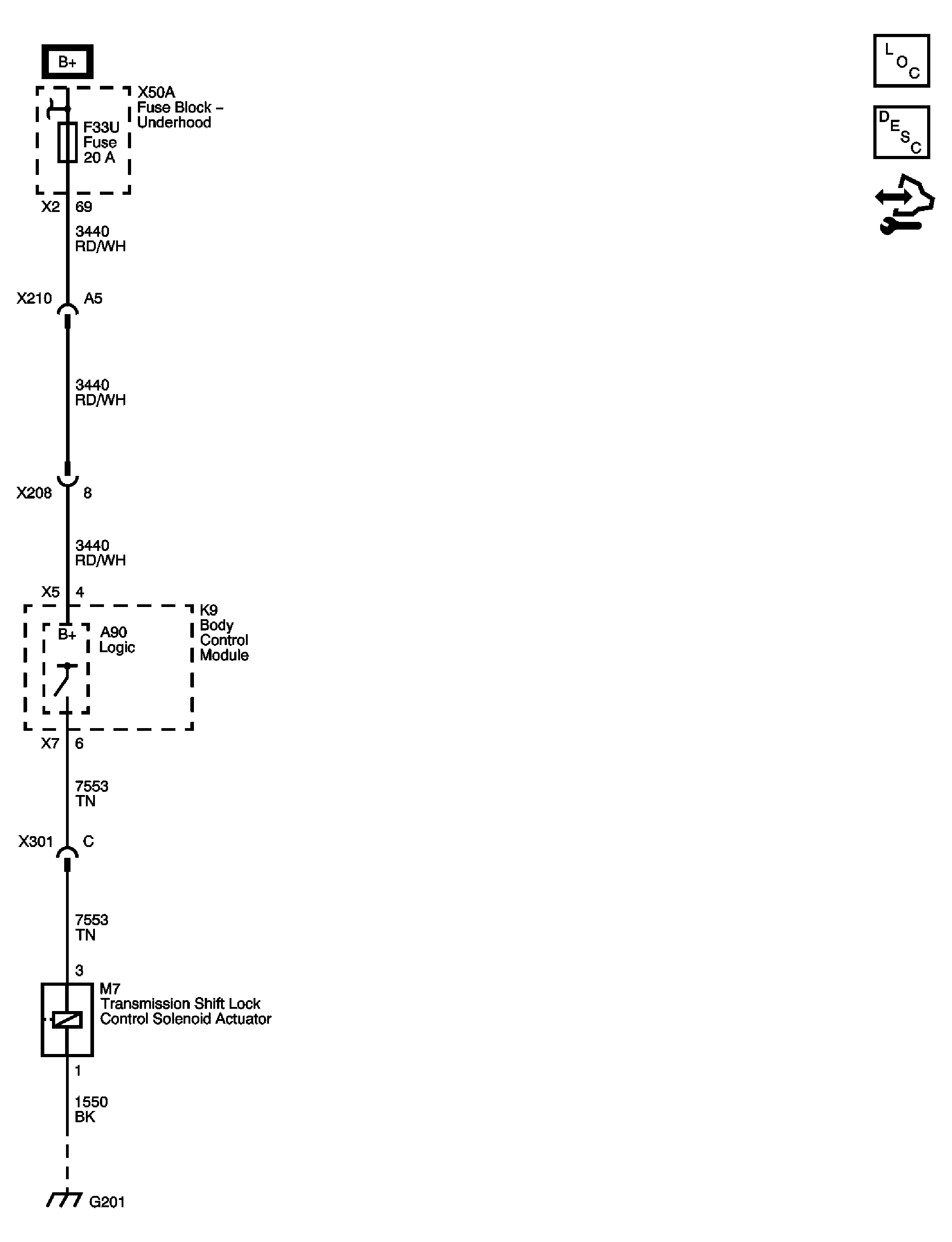

Fig 1: Shift Lock Control Wiring Schematics
GM2404112Courtesy of GENERAL MOTORS CORP.
