Electronic Traction Control Switch Replacement

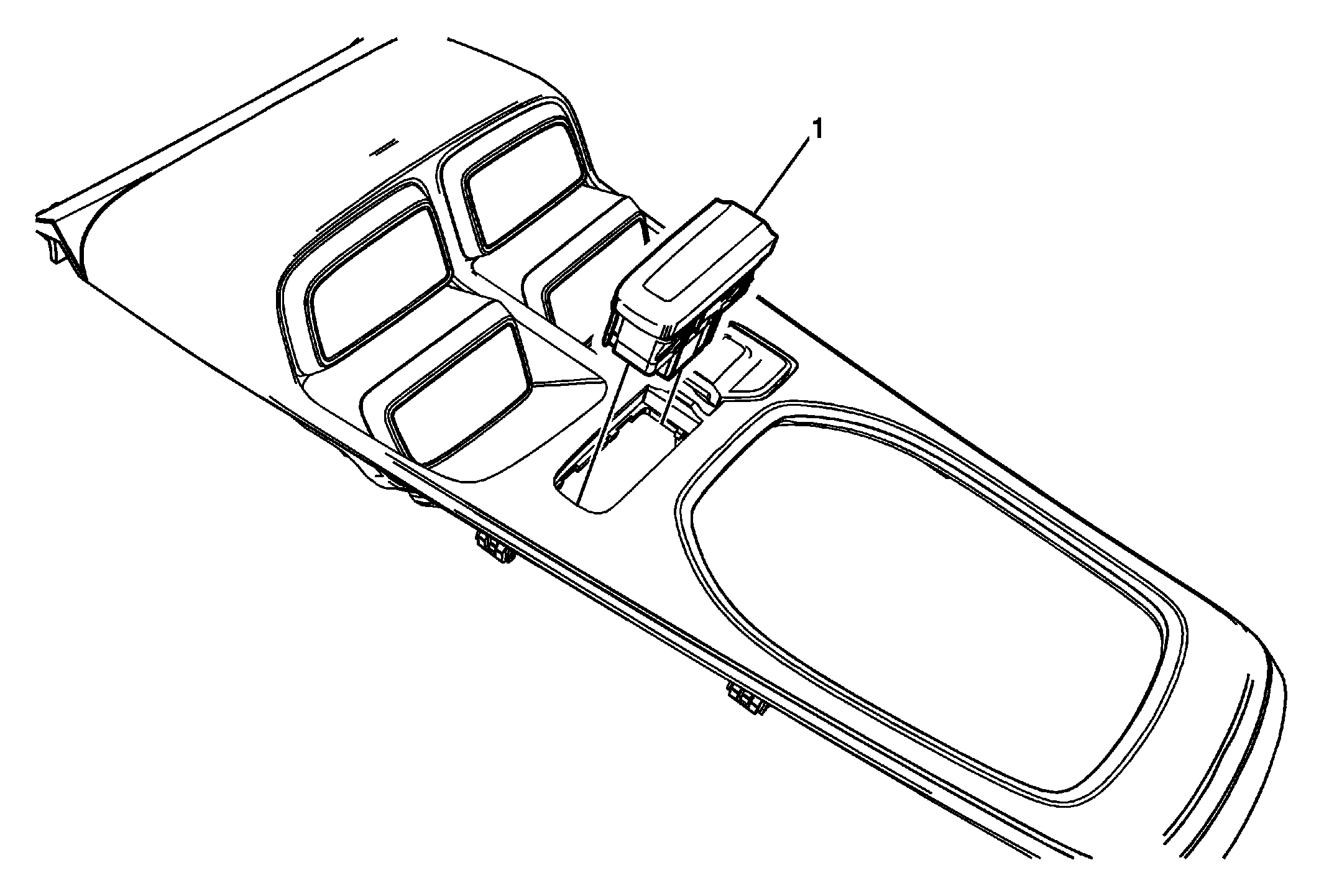

Fig 1: Electronic Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front floor console front cover. Refer to Front Floor Console Front Cover Replacement (Without UMQ) or Front Floor Console Front Cover Replacement (With UMQ) .
1	Traction Control Switch Assembly Procedure Squeeze the tabs in order to release the switch from the trim plate. Disconnect electrical connector.

Callout

Component Name

Traction Control Switch Assembly

Procedure
