Installation Procedure

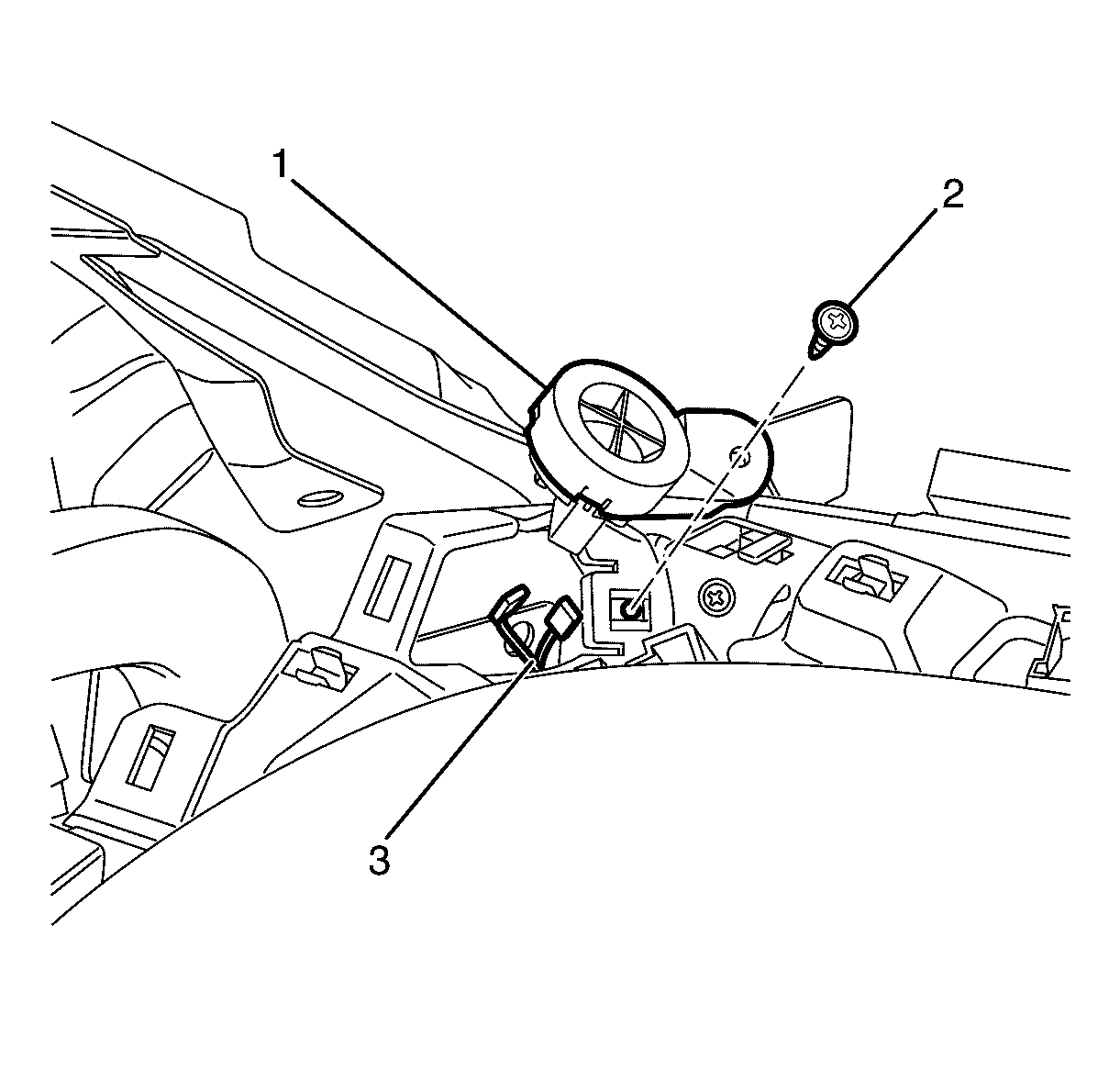

    Fig 1: Identifying Tweeter Speaker To I/P Attaching Screw
    GM1957841Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector (3).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the tweeter speaker to I/P attaching screw (2) and tighten to 2 N.m (18 lb in).
  3. Install the instrument panel upper trim plate. Refer to Instrument Panel Upper Trim Plate Replacement .
