Installation Procedure

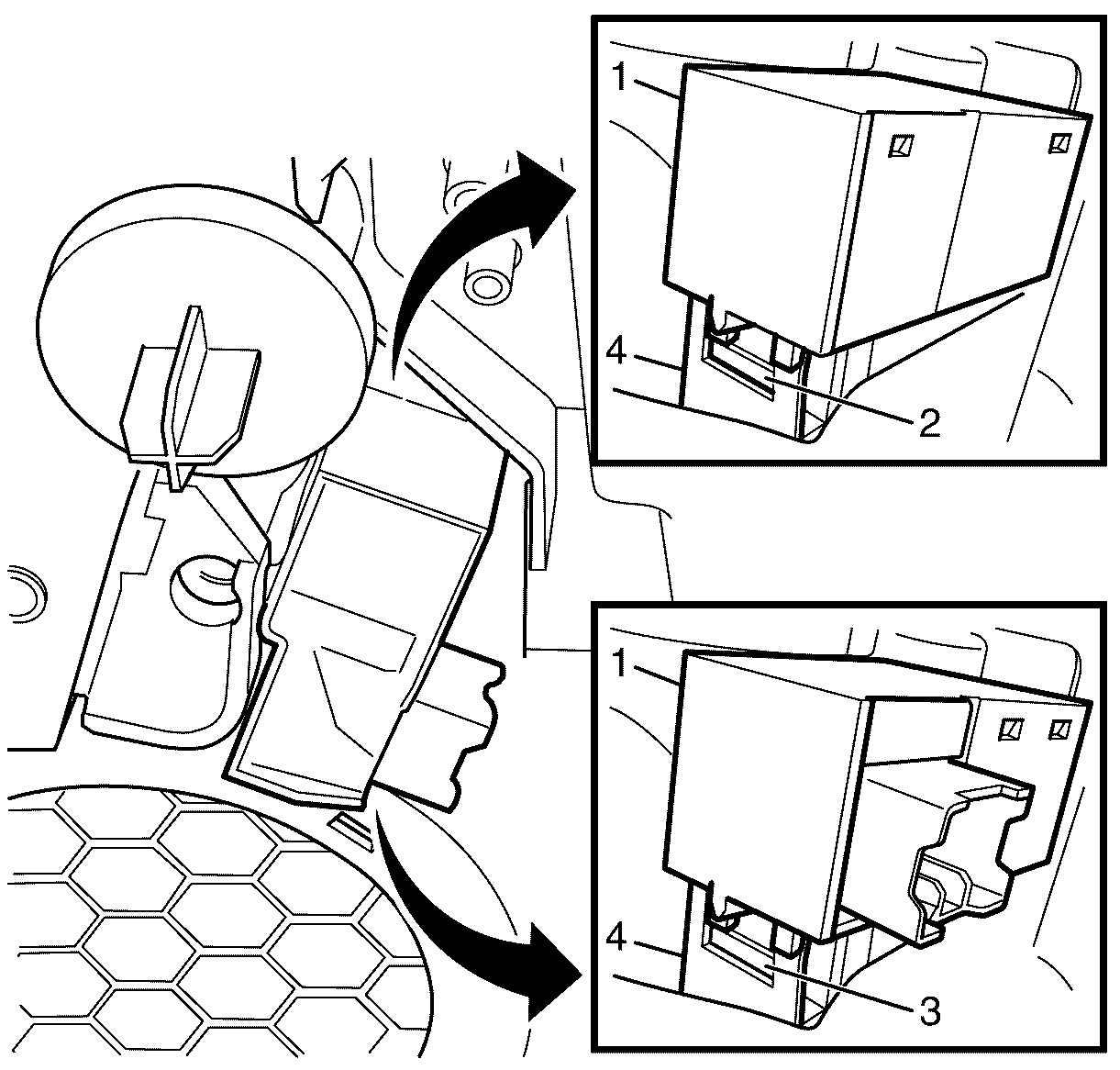

Fig 1: Rear Side Door Window Switch

Courtesy of GENERAL MOTORS CORP.

NOTE:

Make sure the rear side door window switch lower retaining tang (3) and the rear side door window switch upper retaining tang (2) engage securely into the rear side door inside handle (4)

Install the rear side door window switch (1) to the rear side door inside handle (4).
Install the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement .
Check the operation of the rear side door window switch (1).
