Installation Procedure

    Fig 1: Identifying Wheel Speed Sensor Jumper Harness & Electrical Connector
    GM1943670Courtesy of GENERAL MOTORS CORP.
    NOTE:

    Ensure the wheel speed sensor harness is routed correctly.

  1. Connect the wheel speed sensor harness electrical connector (1).
  2. Install the wheel speed sensor harness the front strut bracket (2).
  3. Install the wheel speed sensor harness (3) to the wheel house bracket (4).
  4. Install the left front wheel and tire assembly. Refer to Tire and Wheel Removal and Installation .
  5. Lower the vehicle.

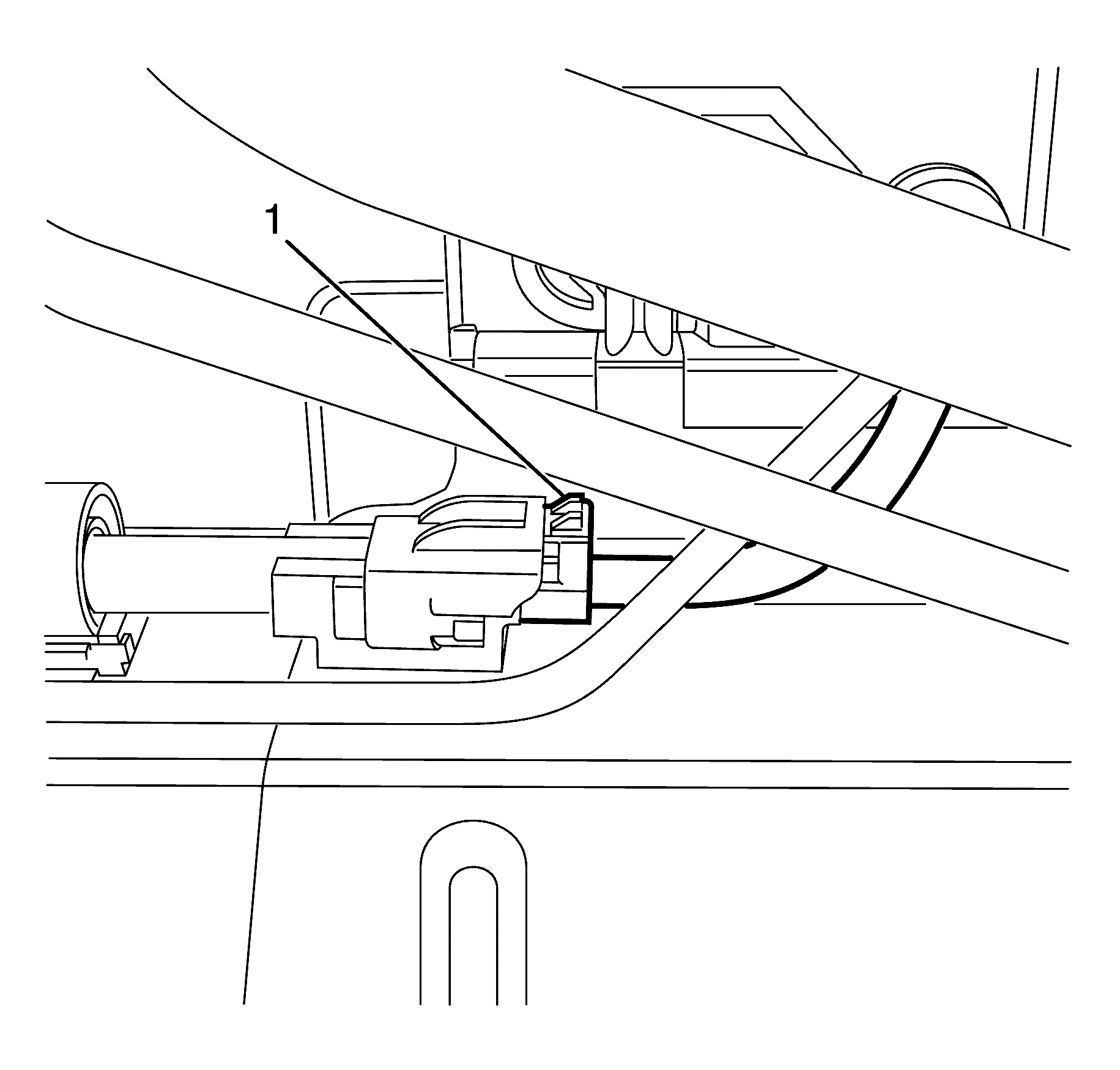

    6. Fig 2: Wheel Speed Sensor Harness Electrical Connector
    GM1943681Courtesy of GENERAL MOTORS CORP.
  6. Connect the wheel speed sensor harness electrical connector (1).
  7. Perform the Diagnostic System Check - Vehicle .
