Ground Views: G303

G303

Component Name Callout
Radio Connector 1
Cigar Lighter Connector 2
G303 3
X223 4

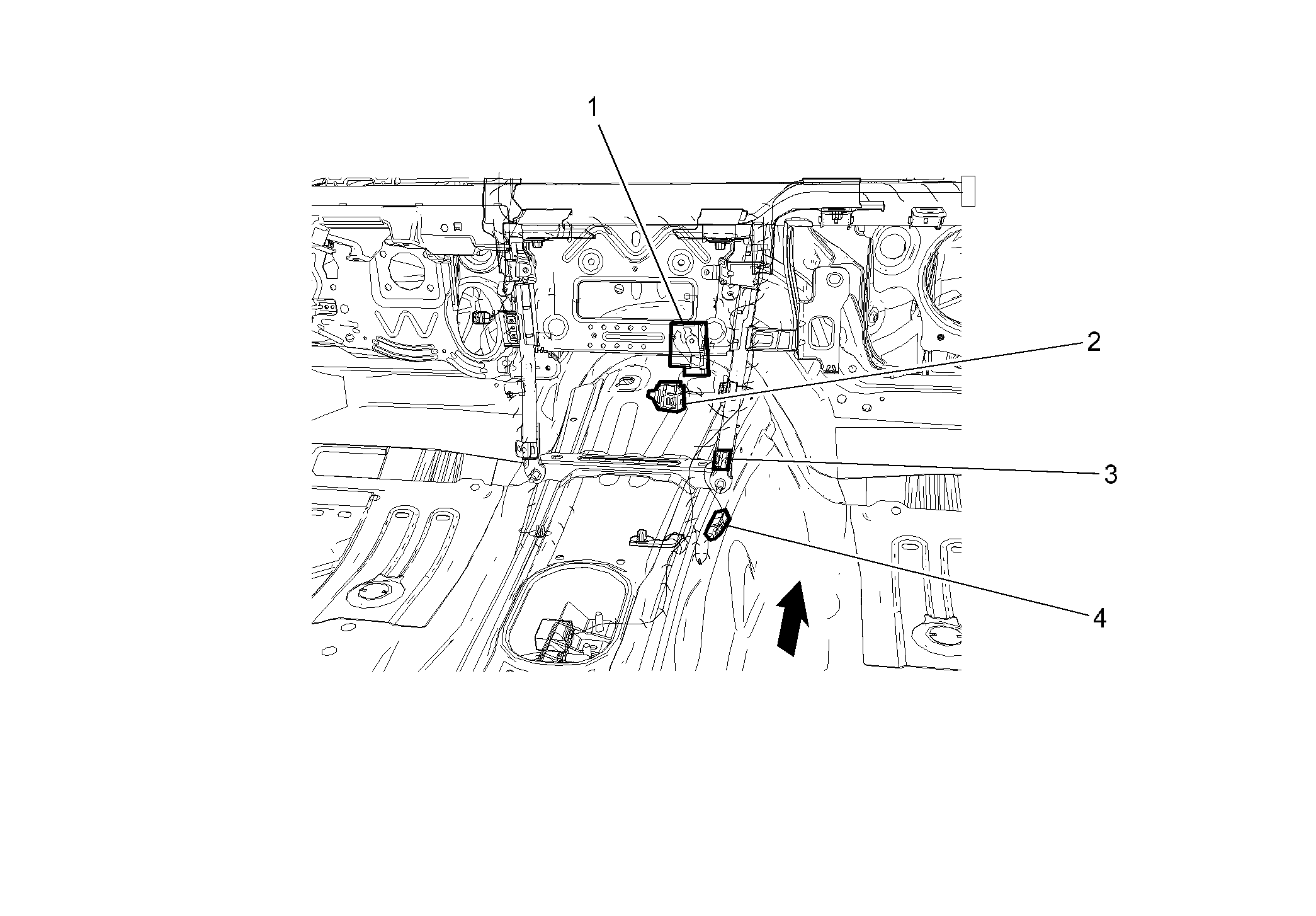

Fig 1: G303
GM2249747Courtesy of GENERAL MOTORS CORP.
