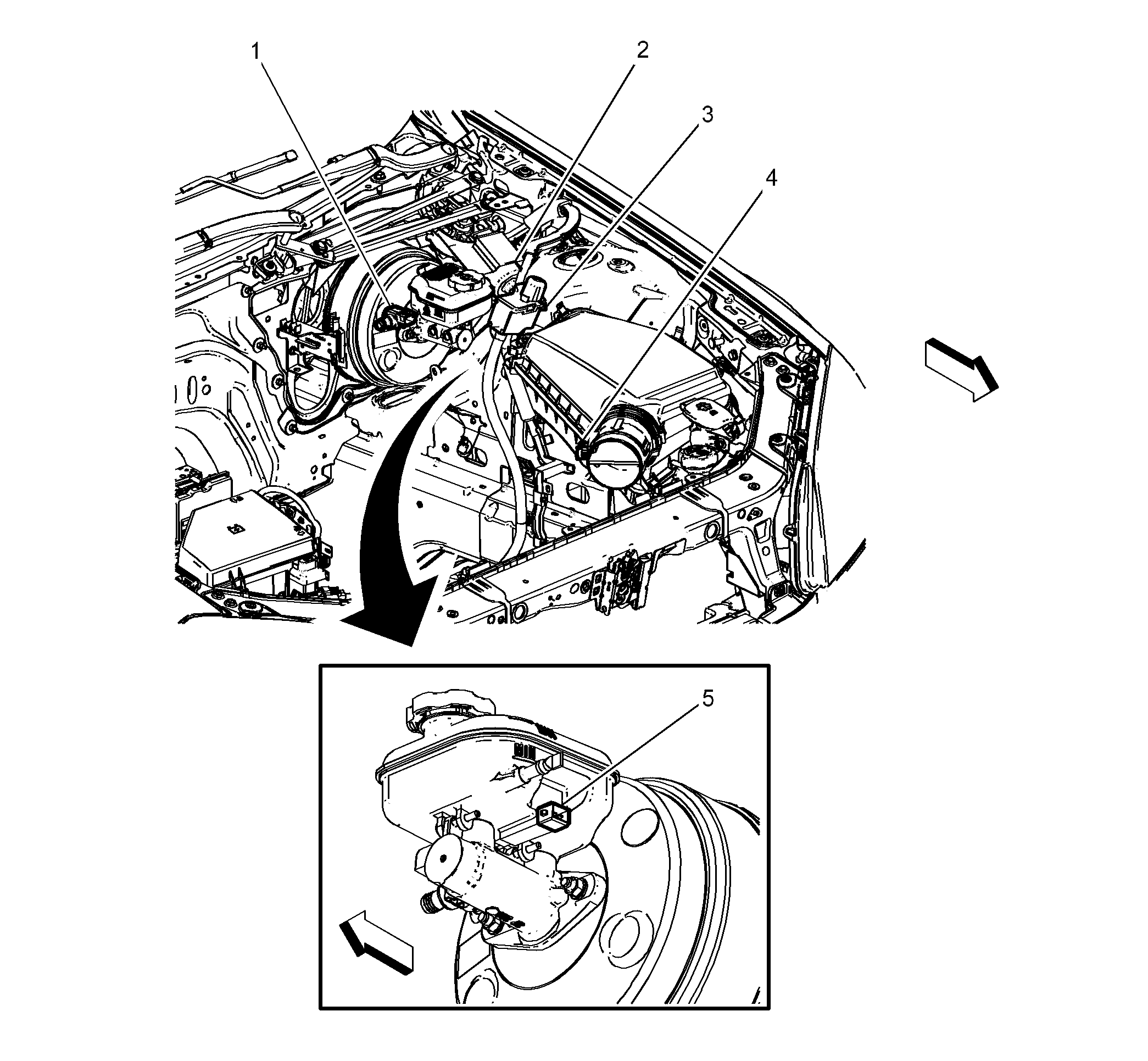

Left Side of the Engine Compartment Components
Left Side of the Engine Compartment Components
| Component Name |
Callout |
| B19B Brake Booster Vacuum Sensor |
1 |
| M75 Windshield Wiper Motor |
2 |
| X60A Junction Block - Underhood |
3 |
| B75B Mass Air Flow/Intake Air Temperature Sensor |
4 |
| B20 Brake Fluid Level Switch |
5 |
Courtesy of GENERAL MOTORS CORP.
