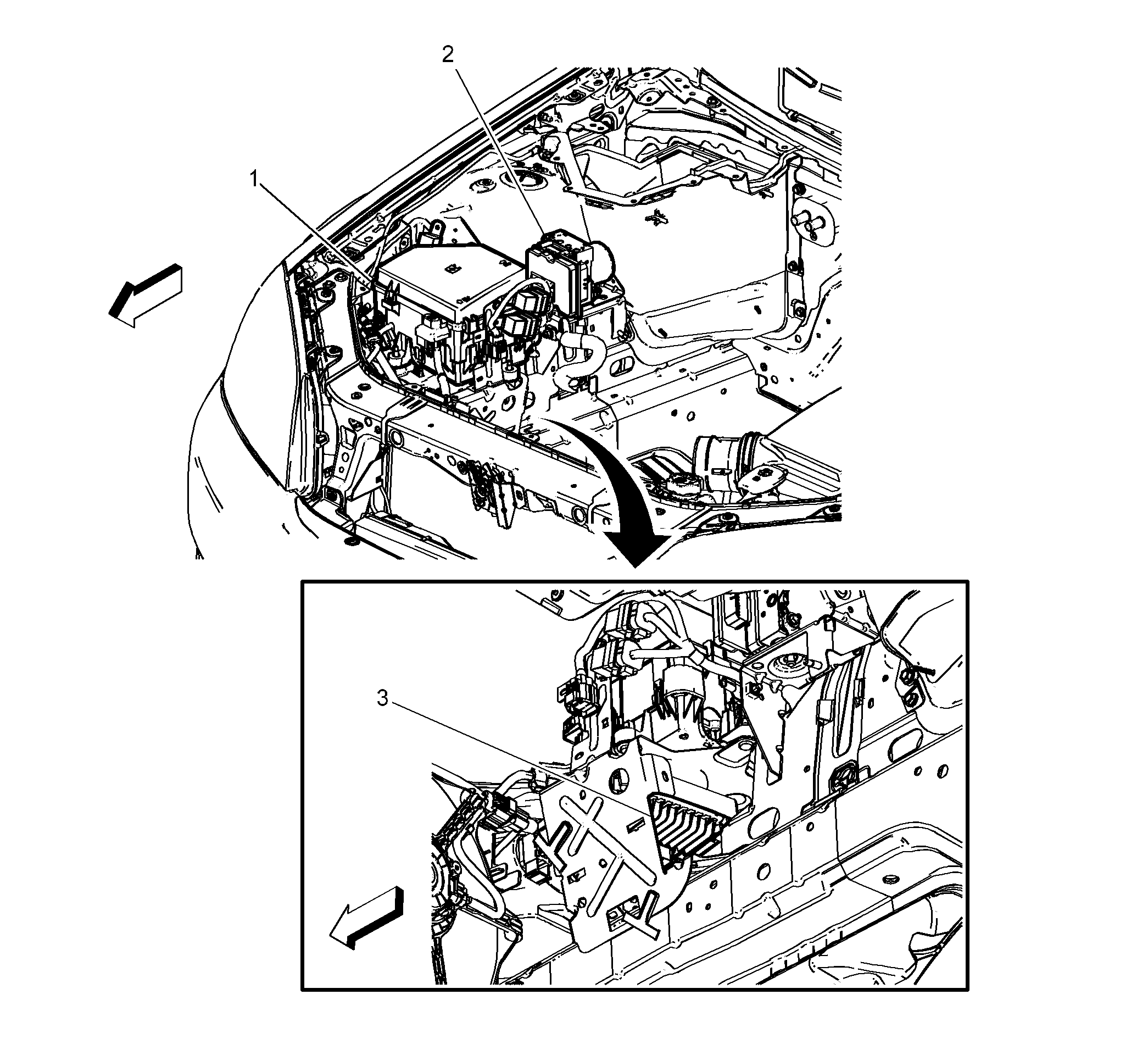

Right Side of the Engine Compartment Components
Right Side of the Engine Compartment Components
| Component Name |
Callout |
| X50A Fuse Block - Underhood |
1 |
| Cooling Fan Relay |
2 |
| Cooling Fan Relay |
3 |
| K17 Electronic Brake Control Module |
4 |
| Cooling Fan Relay |
5 |
| K20 Engine Control Module |
6 |
Courtesy of GENERAL MOTORS CORP.
