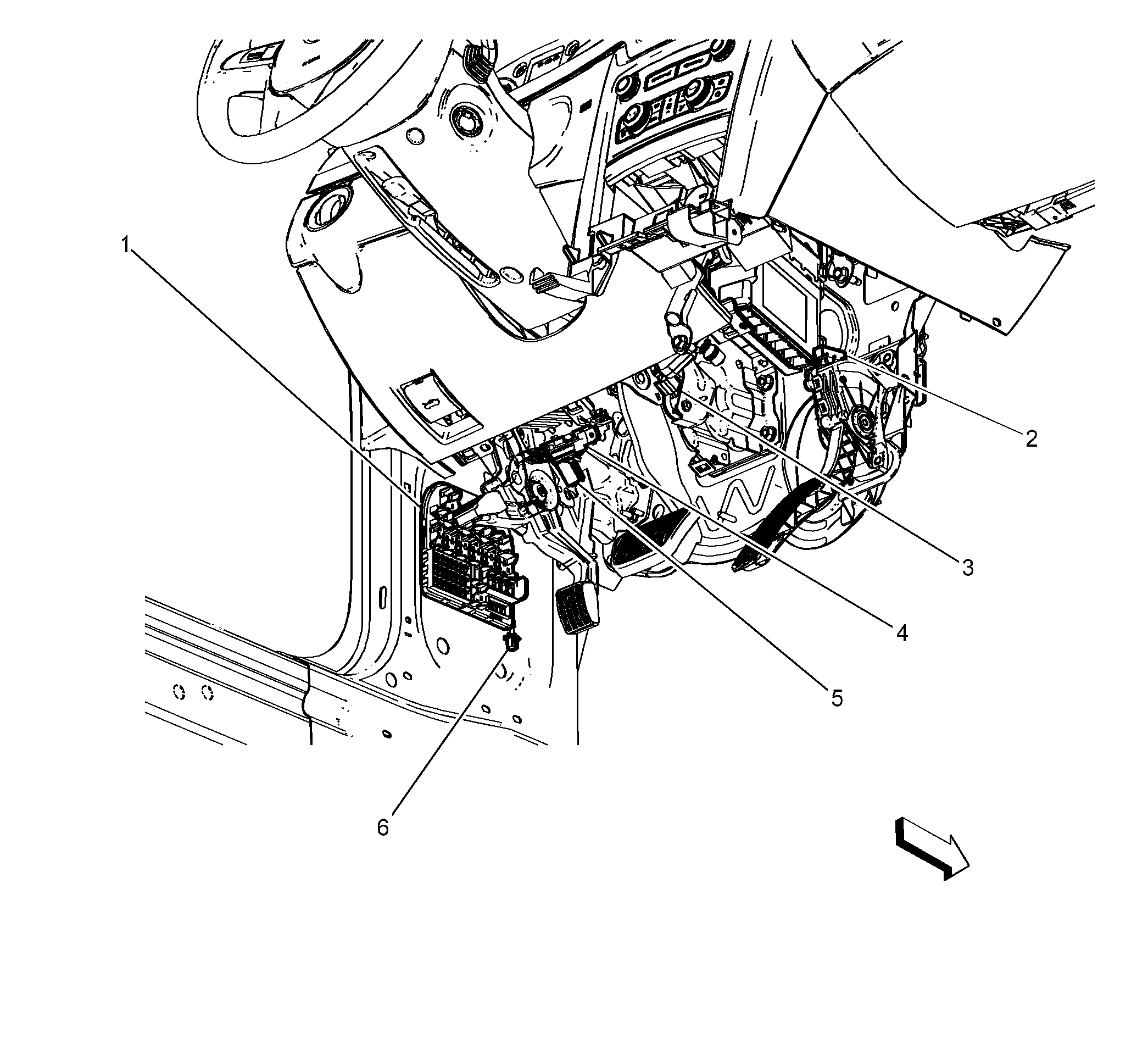

Below the Left Side of the Instrument Panel Components
Below the Left Side of the Instrument Panel Components
| Component Name |
Callout |
| X51A Fuse Block - Instrument Panel |
1 |
| B107 Accelerator Pedal Position Sensor |
2 |
| B22 Brake Pedal Position Sensor |
3 |
| X84 Data Link Connector |
4 |
| B80 Park Brake Switch |
5 |
| T2 Antenna |
6 |
Courtesy of GENERAL MOTORS CORP.
