Instrument Cluster Replacement

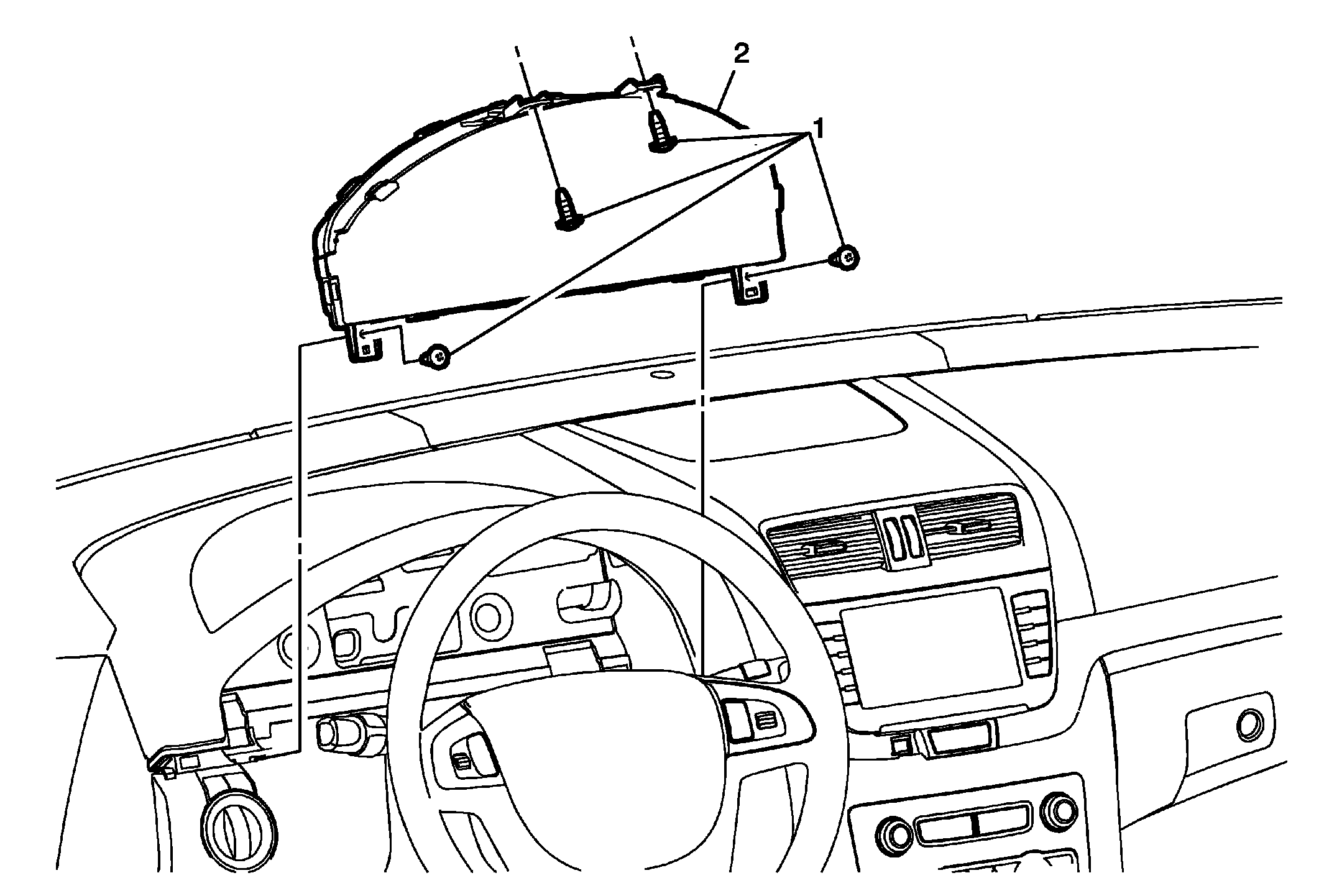

Fig 1: Instrument Cluster

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the instrument panel cluster trim plate. Refer to Instrument Panel Cluster Trim Plate Replacement .
1	Instrument Cluster Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Instrument Cluster Assembly Procedures Disconnect the electrical connector. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel cluster trim plate. Refer to Instrument Panel Cluster Trim Plate Replacement .

Instrument Cluster Fasteners (Qty: 4)

CAUTION:

Instrument Cluster Assembly

Procedures
