Installation Procedure

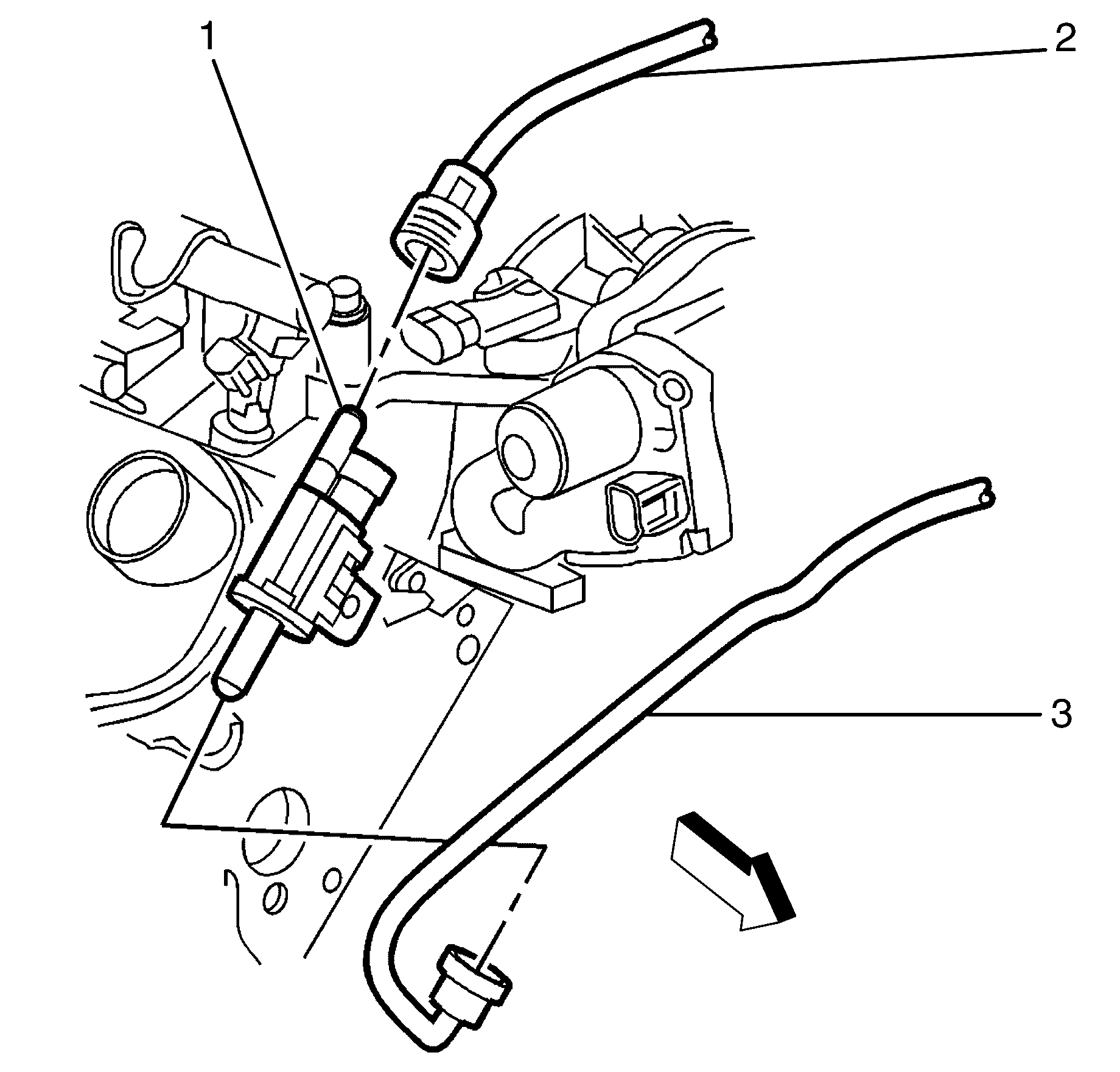

    Fig 1: Identifying EVAP Engine Tube & Valve Solenoid
    GM1950745Courtesy of GENERAL MOTORS CORP.
  1. Install the EVAP engine tube (2) to the EVAP valve solenoid. Refer to Plastic Collar Quick Connect Fitting Service .

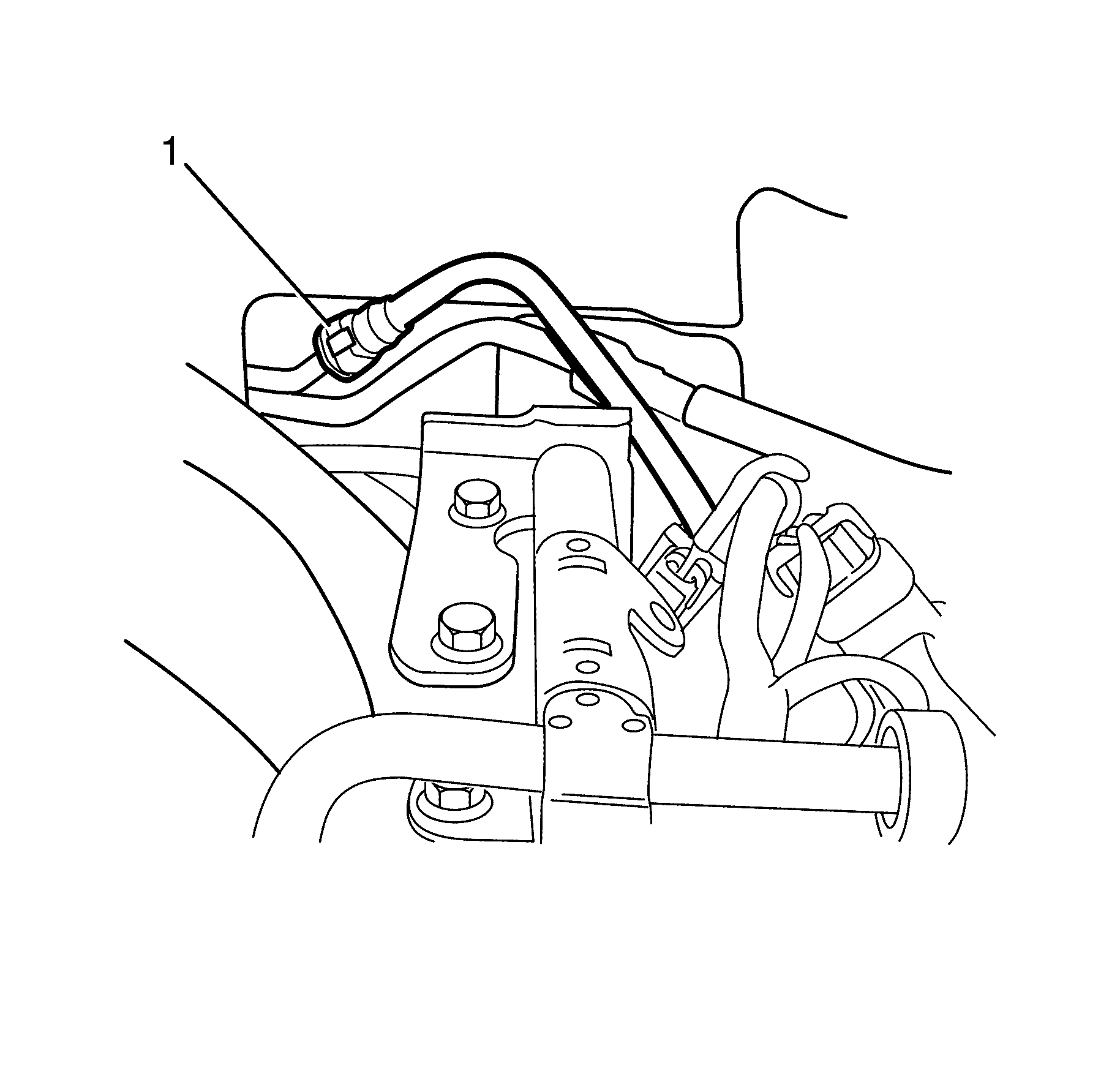

    2. Fig 2: Identifying EVAP Engine Tube & Chassis Pipe
    GM1950805Courtesy of GENERAL MOTORS CORP.
  2. Connect the EVAP engine tube (1) to the EVAP chassis pipe. Refer to Plastic Collar Quick Connect Fitting Service .
  3. Install the oil filler cap.
  4. Connect the negative battery cable.
