Flexible Fuel Sensor Replacement

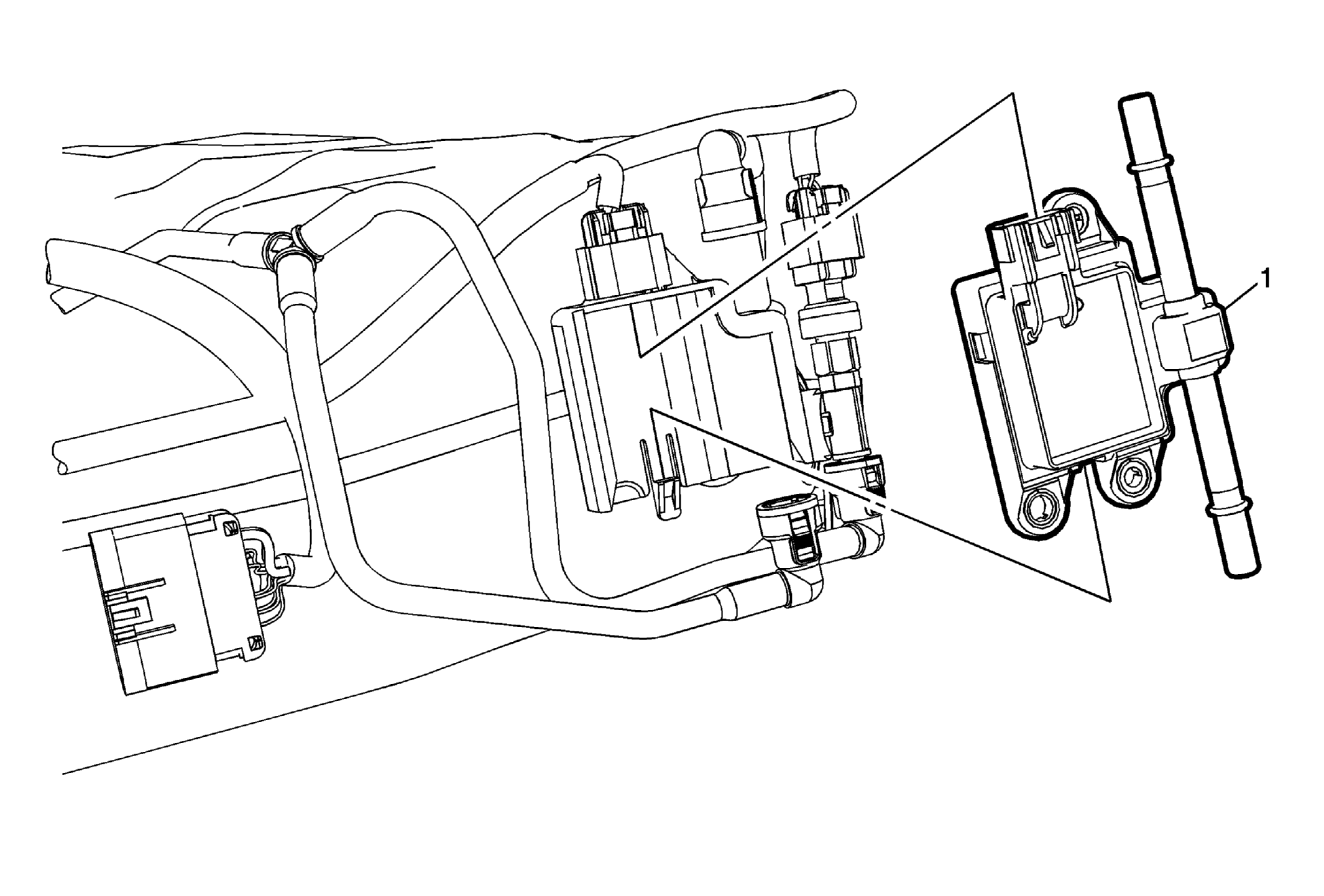

Fig 1: Flexible Fuel Sensor
GM2535667Courtesy of GENERAL MOTORS CORP.
Flexible Fuel Sensor Replacement

Callout Component Name

Preliminary Procedure

  1. Relieve the fuel system pressure. Refer to Fuel Pressure Relief .
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  3. Disconnect the fuel line connectors. Refer to Plastic Collar Quick Connect Fitting Service .
1 Flexible Fuel Sensor

Procedure

  1. Release the plastic retaining tab.
  2. Disconnect the electrical connector.
