Chevrolet
›
2011
›
Caprice
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communications System
›
Schematic Wiring Diagrams
›
Body Control System Wiring Schematics
›
Subsystem References Wiring Schematics (2 of 3)
Subsystem References Wiring Schematics (2 of 3)

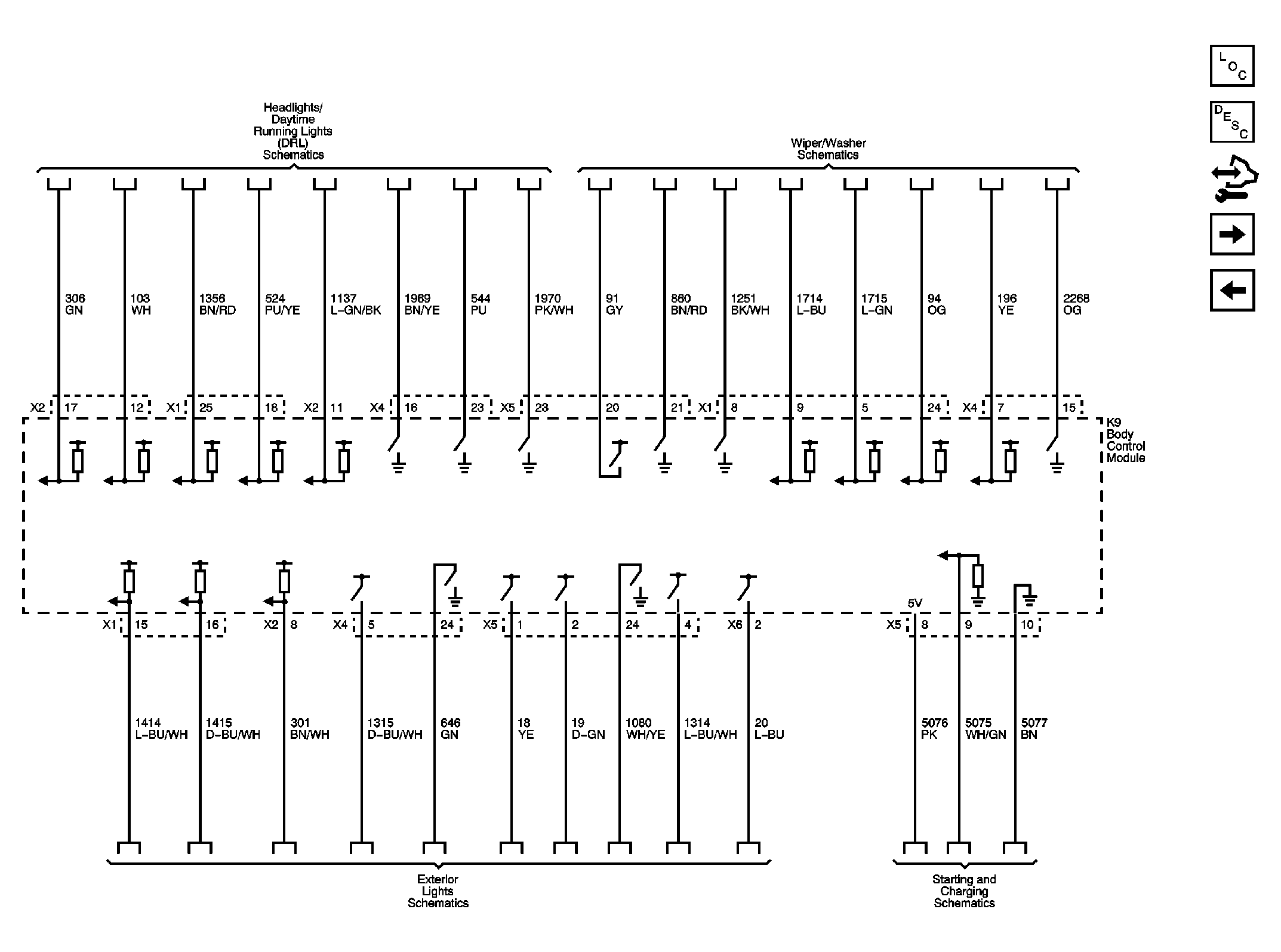

Fig 1: Subsystem References Wiring Schematic (2 of 3)
Courtesy of GENERAL MOTORS CORP.
