Chevrolet
›
2011
›
Caprice
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communications System
›
Schematic Wiring Diagrams
›
Data Communication Wiring Schematics
›
Accessory Wakeup Serial Data Wiring Schematics
Accessory Wakeup Serial Data Wiring Schematics

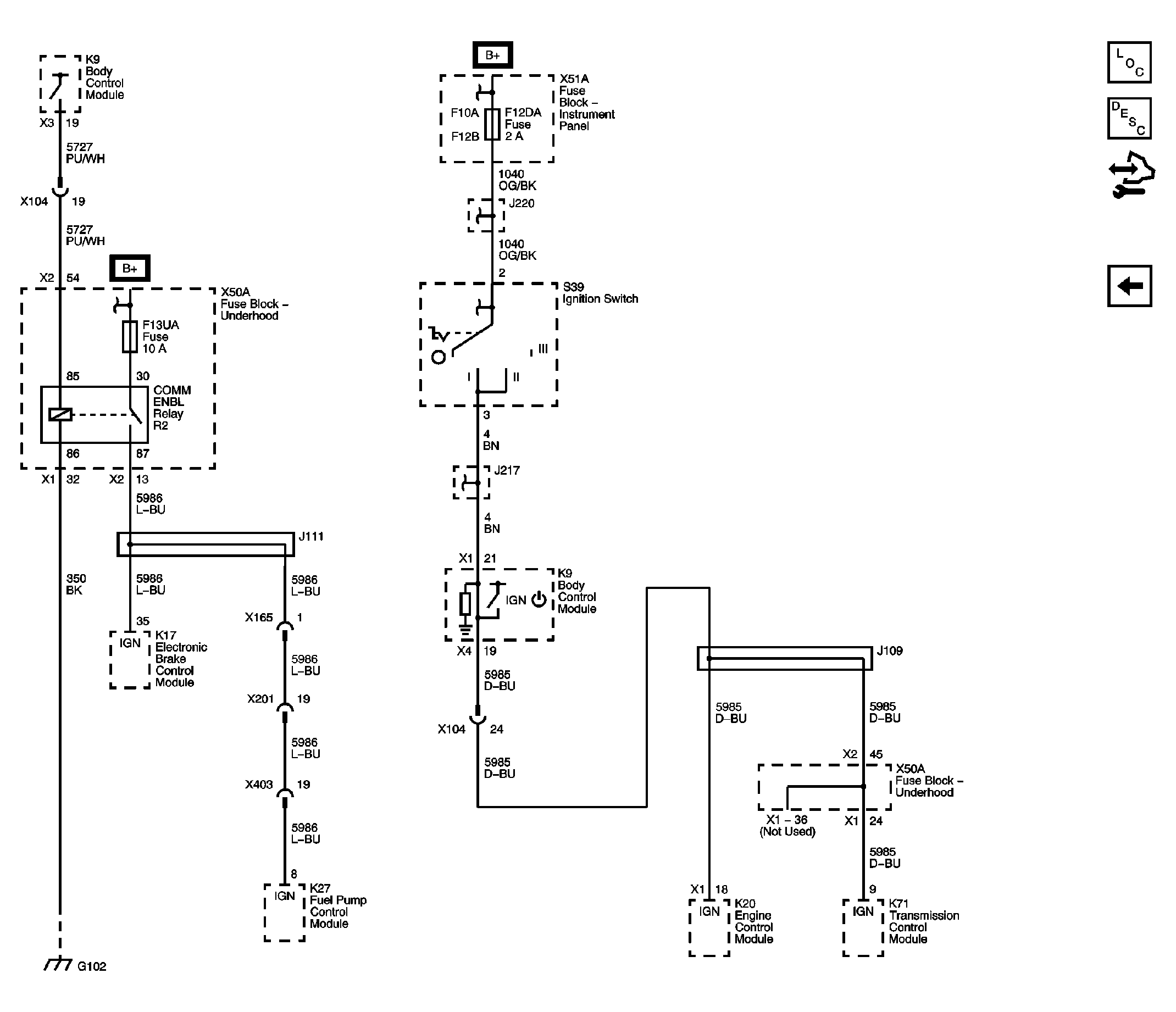

Fig 1: Accessory Wakeup Serial Data Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
