Caprice
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communications System
›
Schematic Wiring Diagrams
›
Data Communication Wiring Schematics
›
Low Speed GMLAN Wiring Schematics
Low Speed GMLAN Wiring Schematics

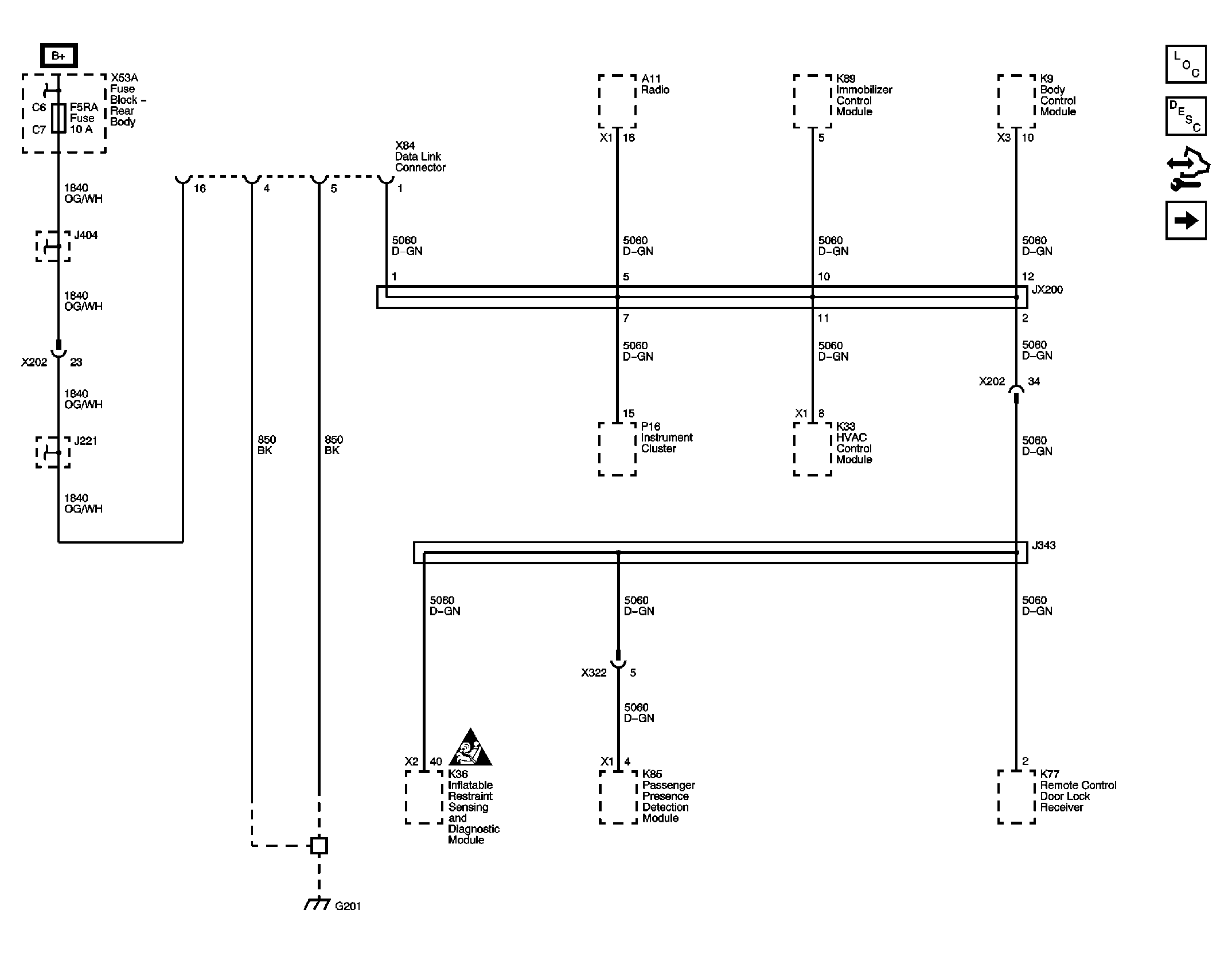

Fig 1: Low Speed GMLAN Wiring Schematic
