Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

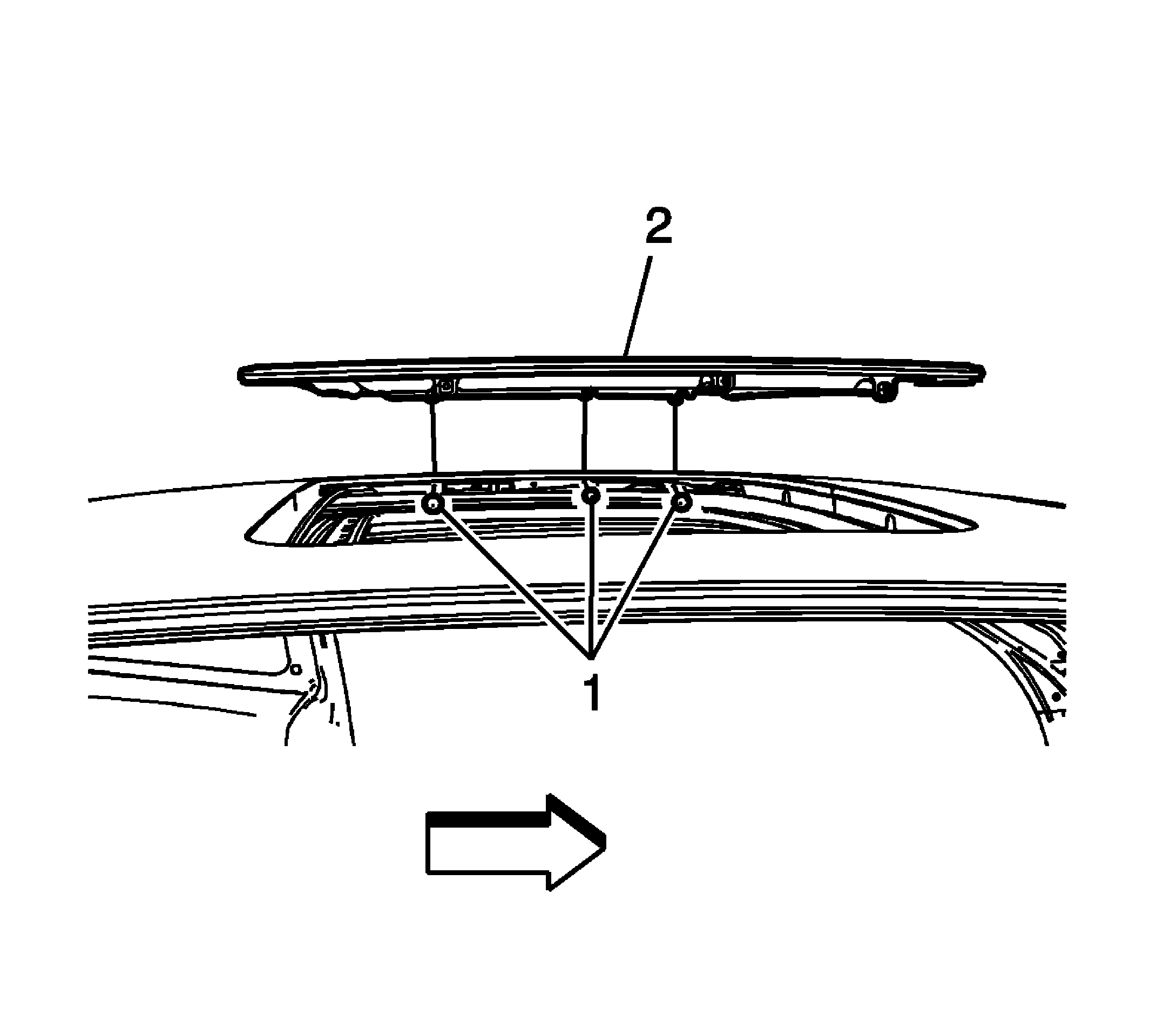

    Fig 1: Sunroof Window Screws
    GM2196272Courtesy of GENERAL MOTORS CORP.
  1. Position the sunroof window into the opening.
  2. Ensure that the window trade mark is to the rear of the opening and that sunroof window attachment tabs are to the inboard side of the mounting arms.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the sunroof window screws (1) to each side of the window (2). Do not tighten the screws.

    Tighten the screws to 8.5 N.m (75 lb in).

  4. Carefully close the sunroof window from the vent position to the full closed position.
  5. Adjust the sunroof window. Refer to Sunroof Window Height and Opening Fit Adjustment .
  6. Close the sunshade.
  7. Cycle the sunroof window to ensure proper operation and fit.
