Courtesy Lamp Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

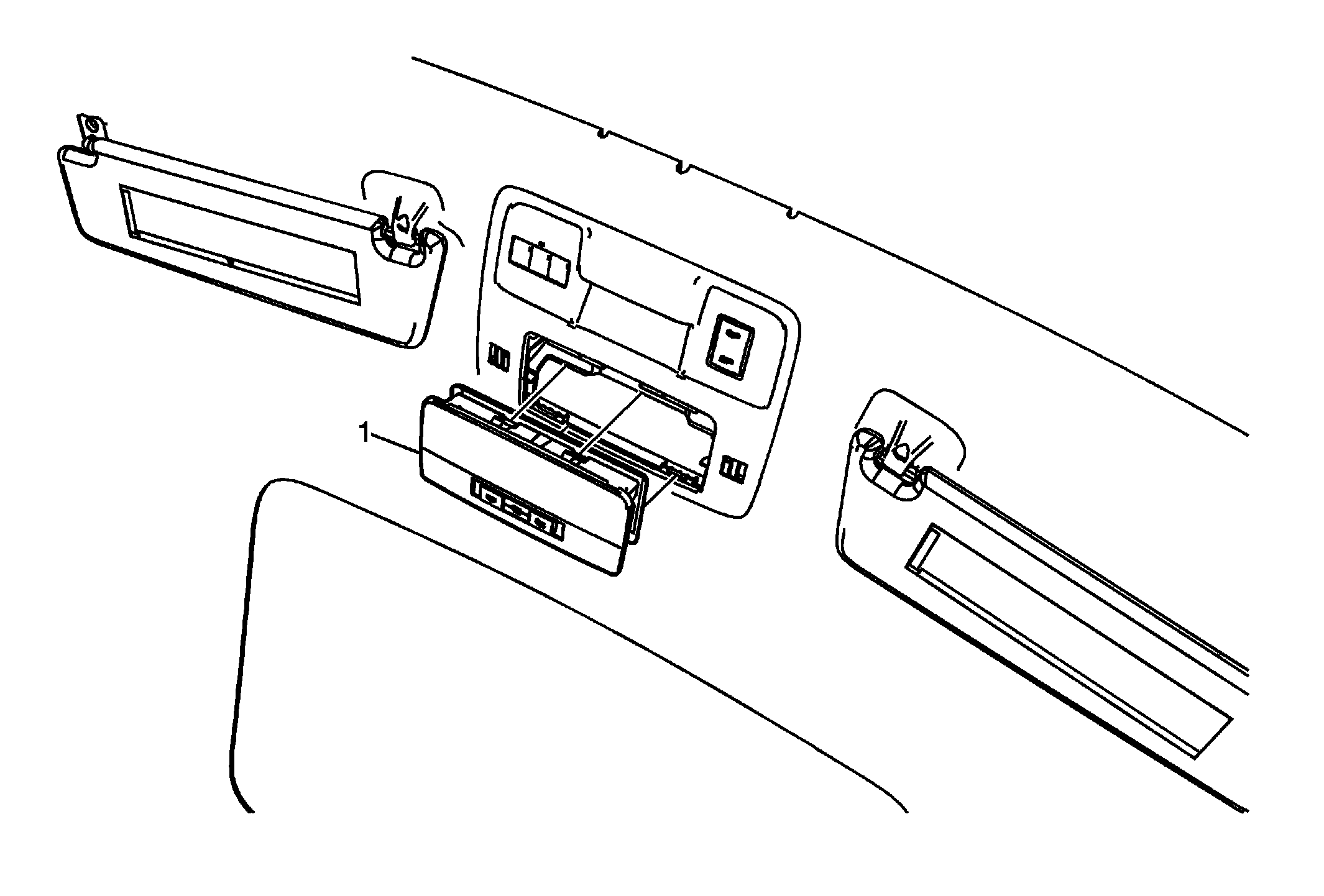

Fig 1: Courtesy Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the dome and reading lamp lens. Refer to Dome and Reading Lamp Lens Replacement
1	Courtesy Lamp Procedure Insert a flat bladed plastic tool into slot. Depress the integral 2 tabs to remove the courtesy lamp from the roof console. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure:
Remove the dome and reading lamp lens. Refer to Dome and Reading Lamp Lens Replacement

Courtesy Lamp

Procedure

Insert a flat bladed plastic tool into slot. Depress the integral 2 tabs to remove the courtesy lamp from the roof console.
Disconnect the electrical connector.
