High Mount Stop Lamp Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

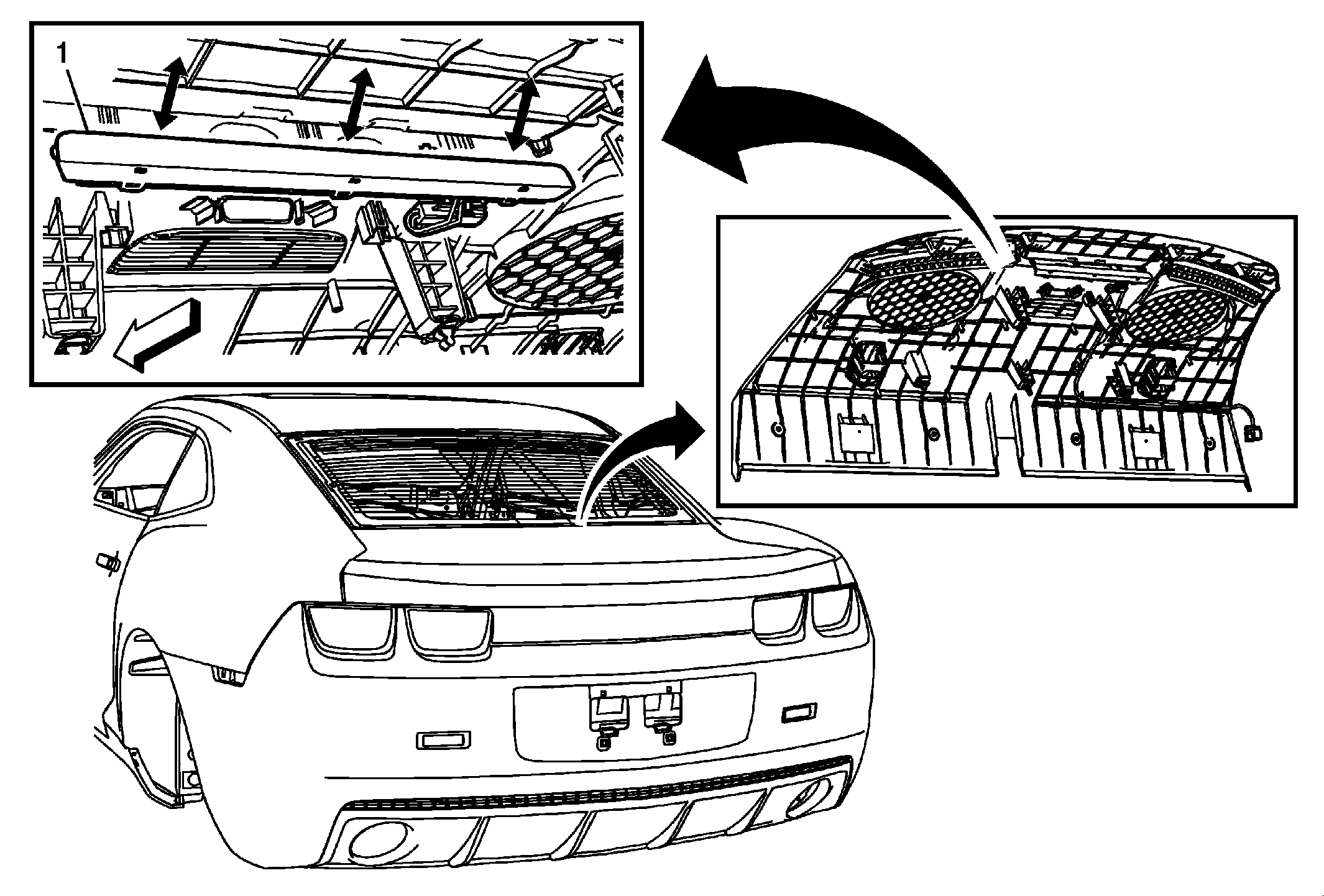

Fig 1: High Mount Stop Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement . Pull back the window panel acoustic trim filler in order to access the high mount stop lamp. Disengage the high mount stop lamp electrical connector from the rear window trim panel. Pull the high mount stop lamp from the rear window panel trim.
1	High Mount Stop Lamp Tip: The high mount stop lamp is serviced as one part.

Callout

Component Name

Preliminary Procedures

Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement .
Pull back the window panel acoustic trim filler in order to access the high mount stop lamp.
Disengage the high mount stop lamp electrical connector from the rear window trim panel.
Pull the high mount stop lamp from the rear window panel trim.

High Mount Stop Lamp
Tip: The high mount stop lamp is serviced as one part.
