Remote Control Door Lock Receiver Replacement (With BTV)

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

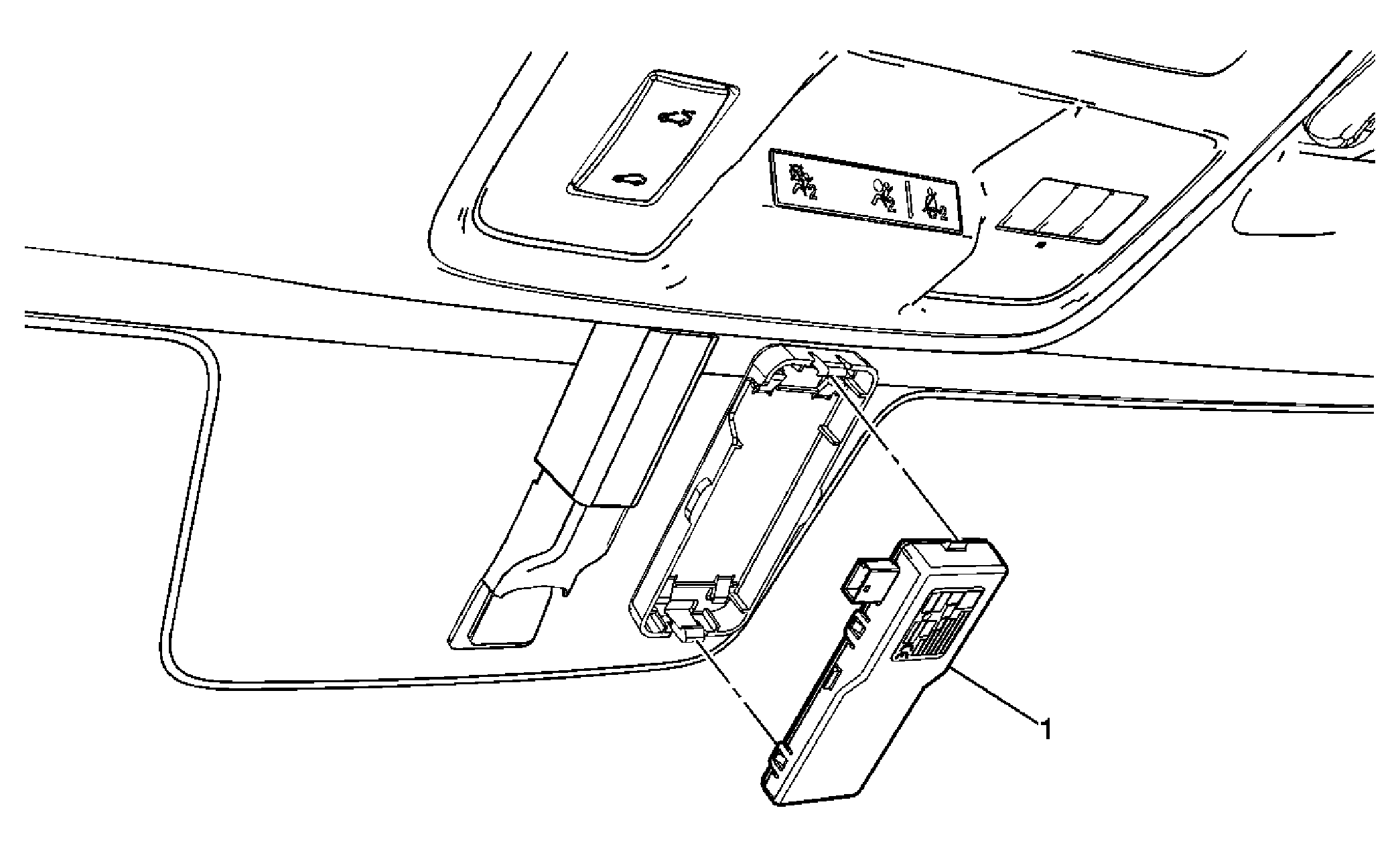

Fig 1: Remote Control Door Lock Receiver (With BTV)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Control Door Lock Receiver Procedure Remove the module trim cover. Disconnect the electrical connector. Remove cover and unsnap the receiver from the windshield bracket. For programming and set up, refer to Control Module References
