Installation Procedure

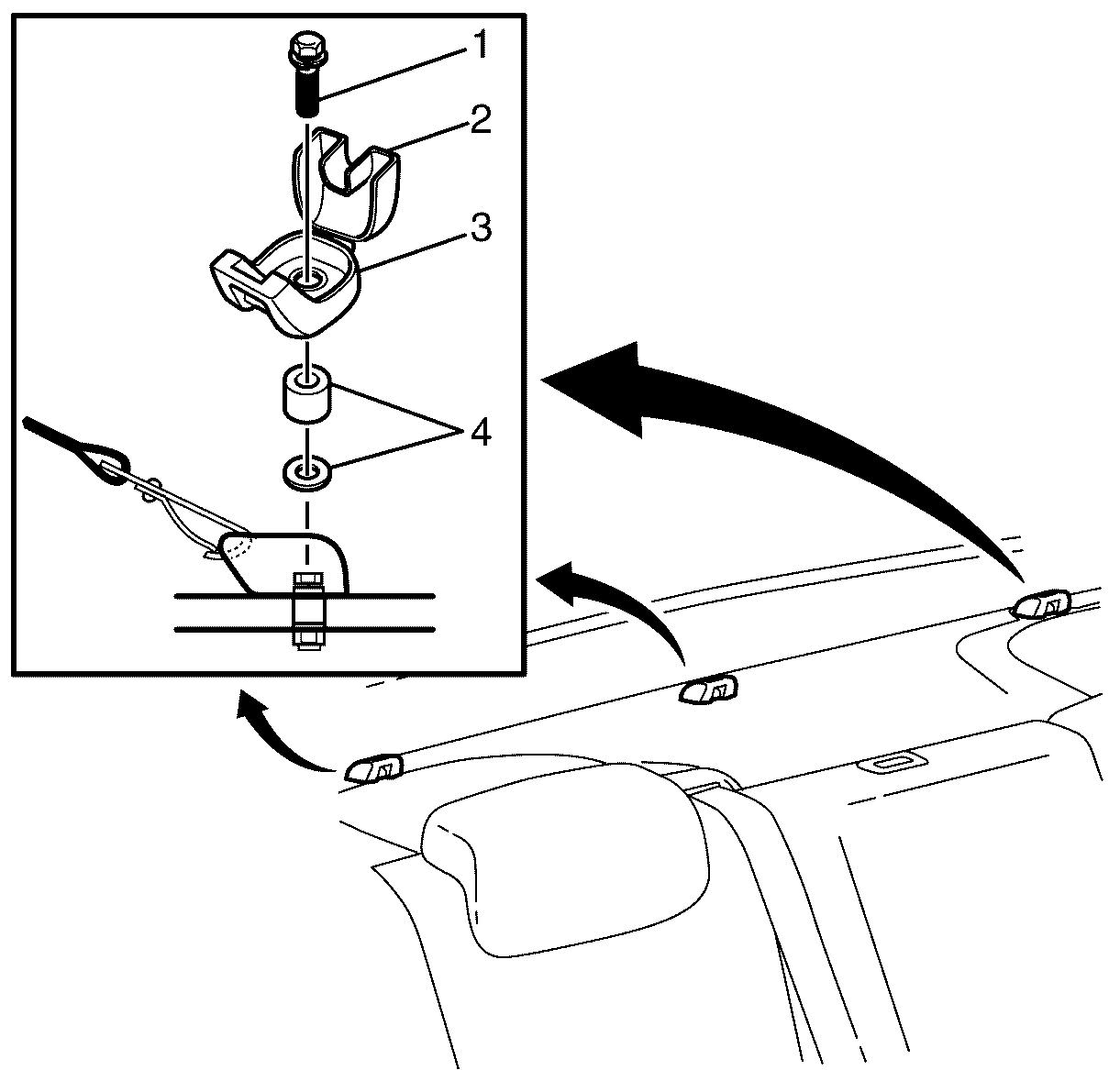

    Fig 1: Child Restraint Tether Anchor Cover
    GM2290944Courtesy of GENERAL MOTORS CORP.
  1. Install the child restraint tether anchor (3) and spacing washers (4) to the rear window shelf panel.
    2. CAUTION:

    Refer to Component Fastener Tightening Caution .

  2. Install the child restraint tether anchor to rear window shelf panel retaining bolt (1) and tighten to 20 N.m (15 lb ft).
  3. Attach the child restraint tether anchor cover (2).
