Removal Procedure

NOTE:

If servicing the steering knuckle, it is NOT necessary to completely remove the front lower control arm from the vehicle. Separate the front lower control arm from the steering knuckle.

  1. Raise and Support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
    3. Fig 1: Lower Control Arm Nut & Bolt
    GM2352112Courtesy of GENERAL MOTORS CORP.
  3. Remove the front lower control arm front nut (1) and the front bolt (2).

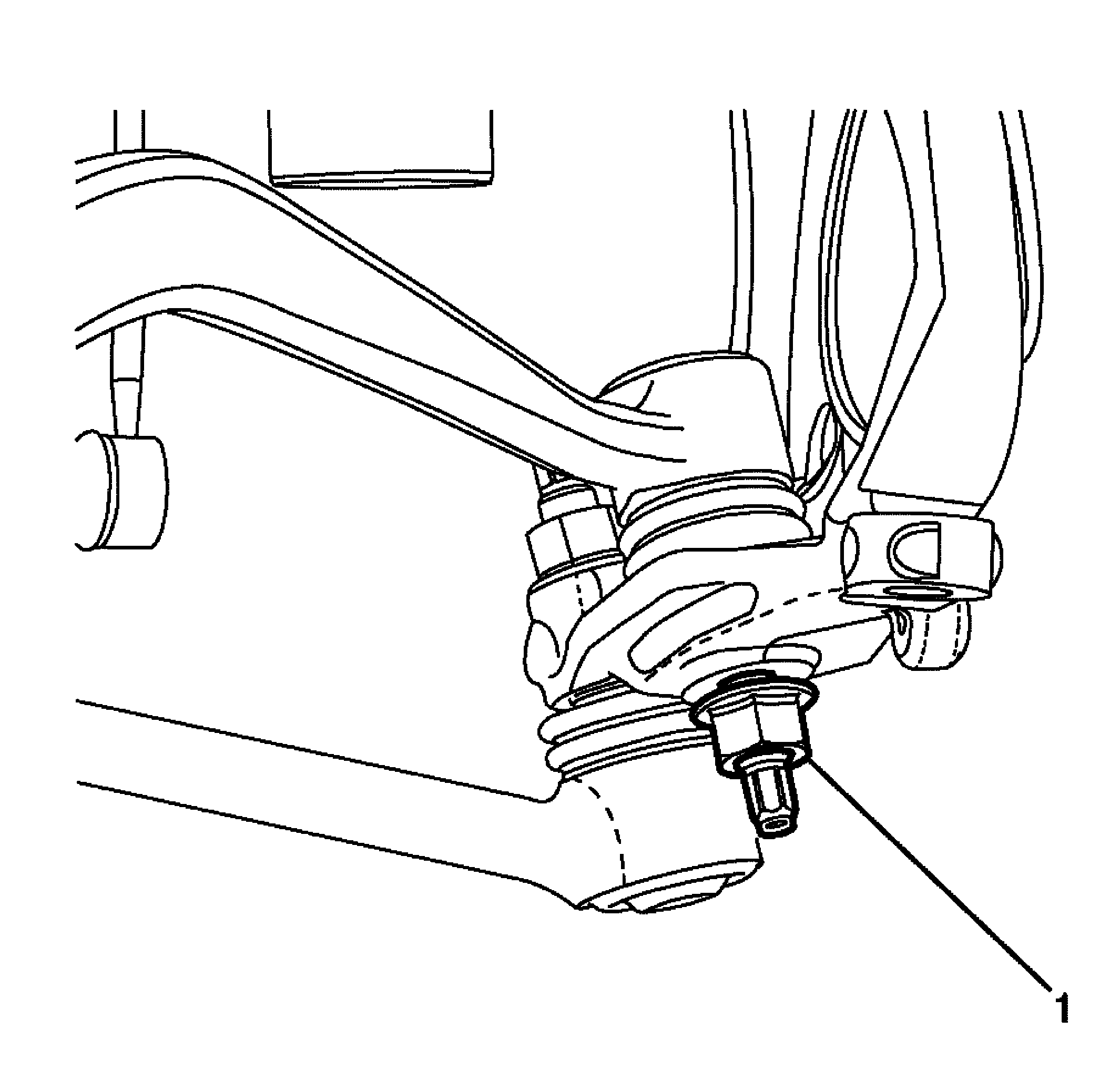

    4. Fig 2: Identifying Driver Side Caster Arm To Steering Knuckle Retaining Nut
    GM2144711Courtesy of GENERAL MOTORS CORP.
  4. Loosen, but DO NOT remove the front lower control arm rear nut (1).

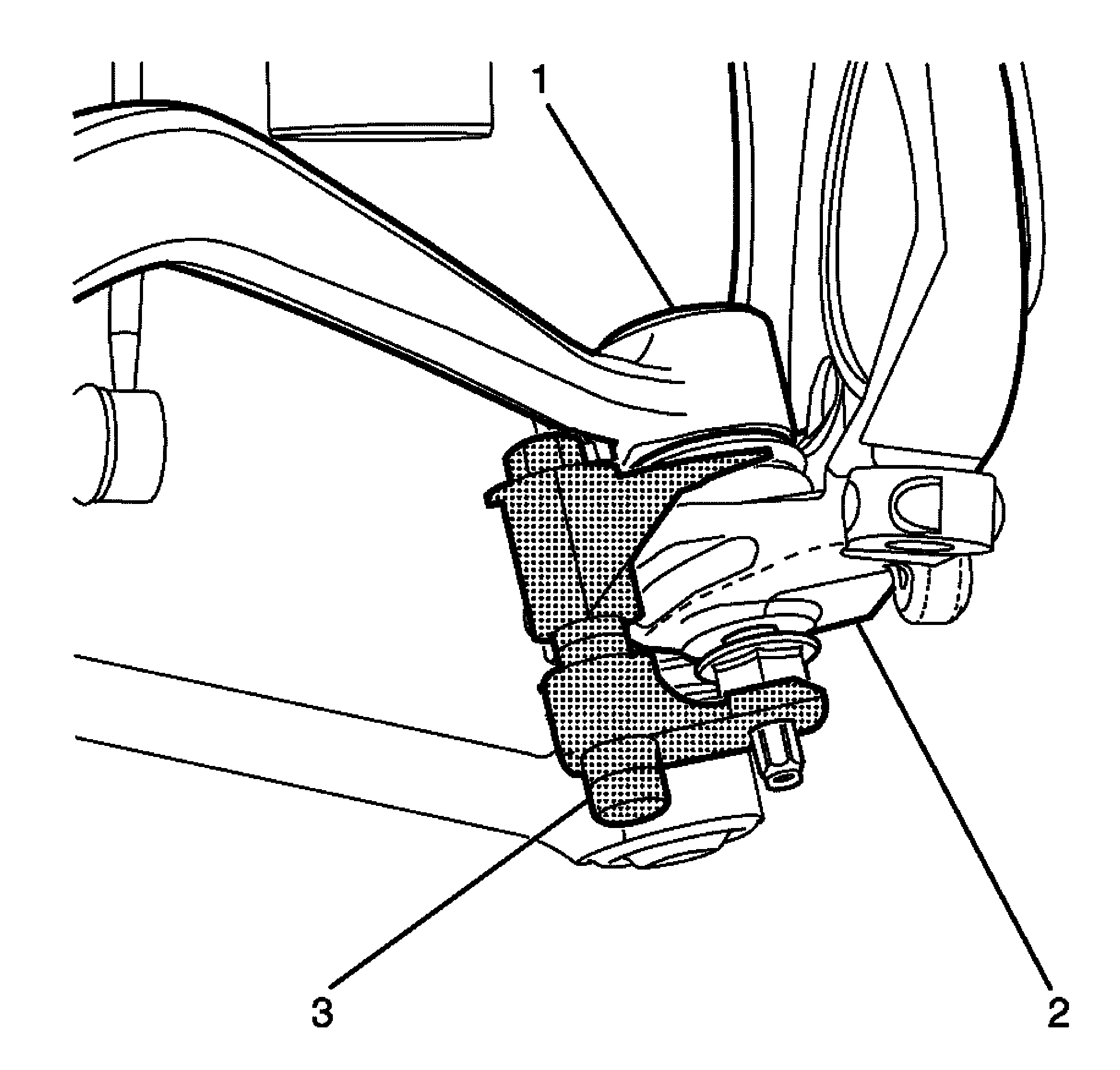

    5. Fig 3: View Of J-42188-B, Driver Side Caster Arm & Steering Knuckle
    GM2144712Courtesy of GENERAL MOTORS CORP.
  5. Using the J 42188  separator(3), separate the front lower control arm from the steering knuckle (1).
    6. Fig 4: Front Lower Control Nut & Control Arm
    GM2193043Courtesy of GENERAL MOTORS CORP.
  6. Remove the front lower control rear nut (1) and the front lower control arm (2) from the frame and the steering knuckle.
