Installation Procedure

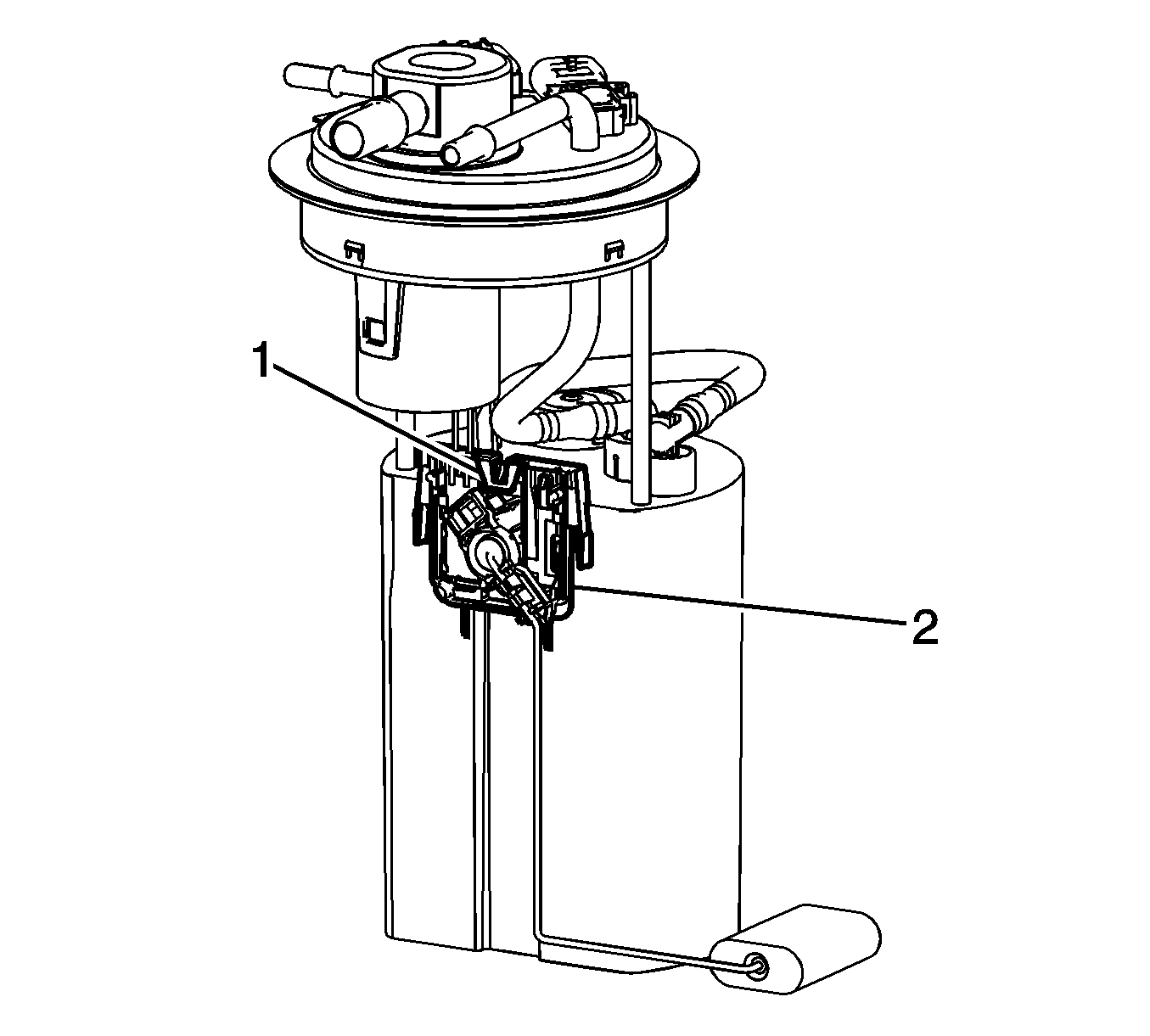

    Fig 1: Fuel Level Sensor And Retainer
    GM1940129Courtesy of GENERAL MOTORS CORP.
  1. Slide the fuel level sensor (2) up onto the reservoir.
  2. Gently lift up the fuel level sensor retainer (1) in order to engage the retainer to the sensor.
  3. Connect the fuel level sensor wiring pigtail electrical connector to the module cover.
  4. Install the fuel tank fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement .
