Installation Procedure

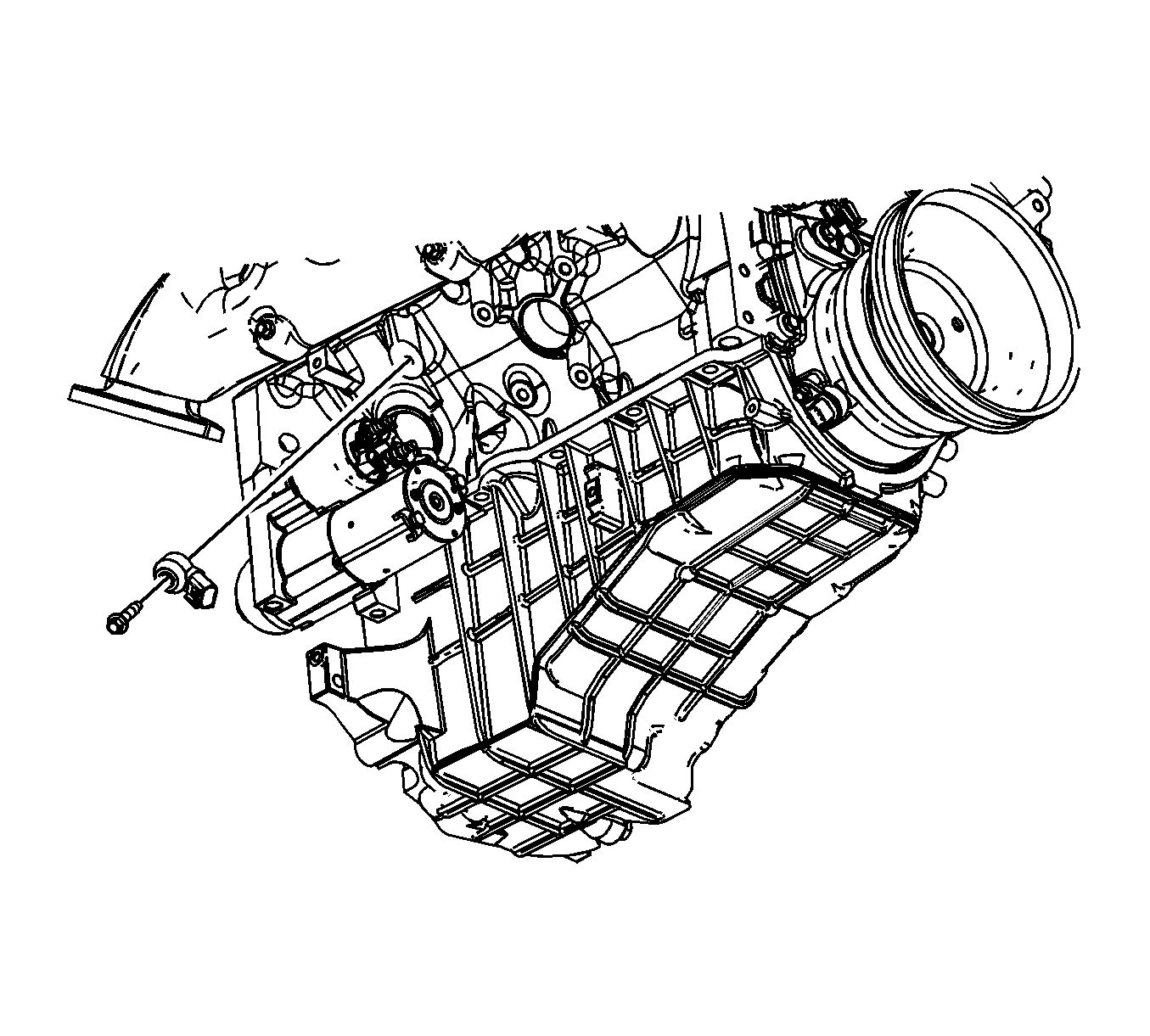

    Fig 1: Knock Sensor And Bolt
    GM1877020Courtesy of GENERAL MOTORS CORP.
    CAUTION:

    Refer to Fastener Caution .

  1. Position the knock sensor to the engine block and install the bolt and tighten to 25 N.m (18 lb ft).

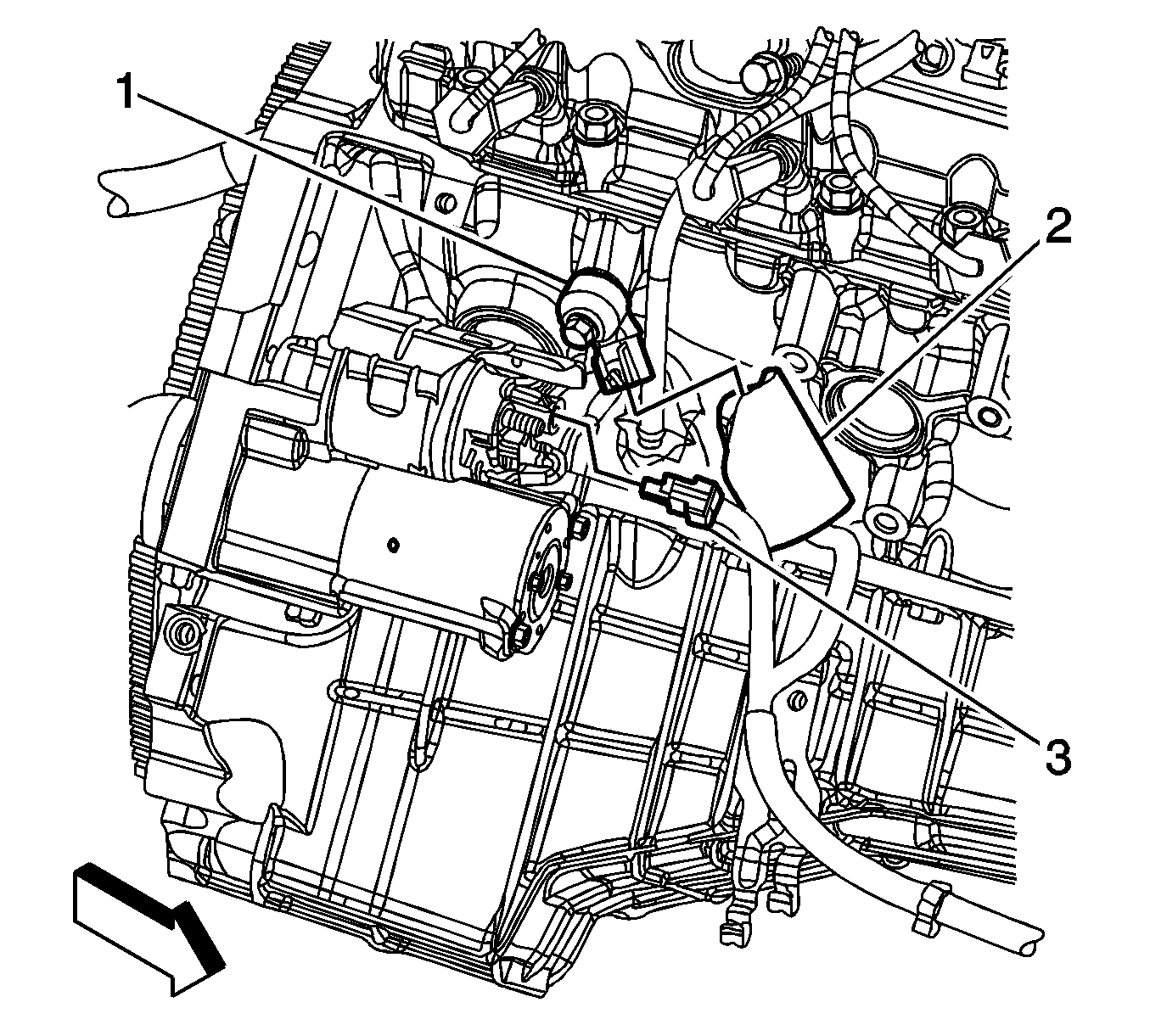

    2. Fig 2: Starter Motor Positive Battery Cable
    GM1950126Courtesy of GENERAL MOTORS CORP.
  2. Connect the engine wiring harness electrical connector to the knock sensor (1).
  3. Position the knock sensor sleeve (2) up and over the knock sensor.
  4. Lower the vehicle.
