Steering Wheel Secondary/Configurable Control Wiring Schematics
›
Steering Wheel Secondary/Configurable Controls
Steering Wheel Secondary/Configurable Controls

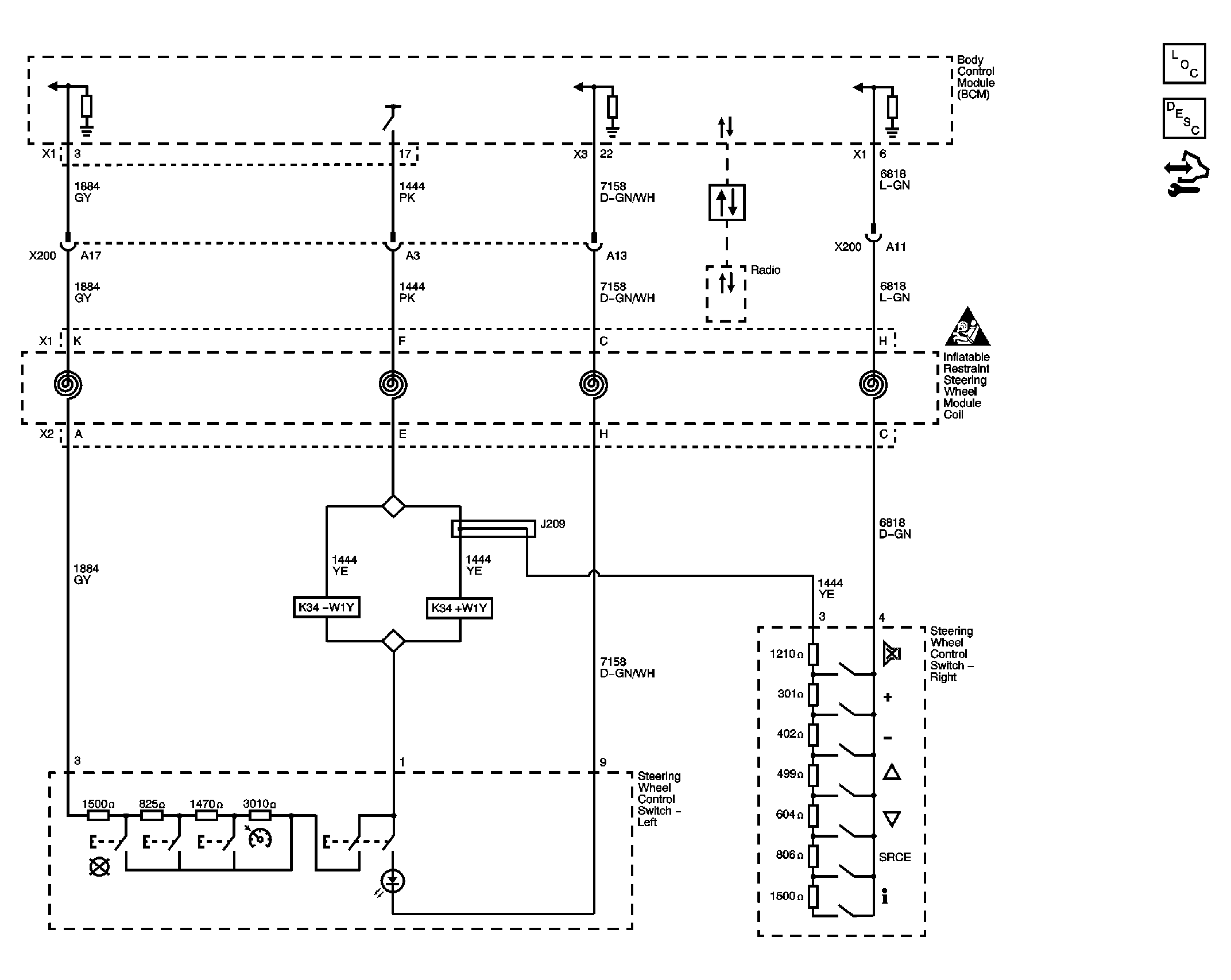

Fig 1: Steering Wheel Secondary/Configurable Controls Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
