Electrical Component Locator - Instrument Panel/Center Console Component Views
›
Instrument Panel/Center Console Component Views
›
Under Steering Column Components
Under Steering Column Components
Under Steering Column Components
Component Name
Callout
Digital Radio Receiver (U2K)
1
Vehicle Communication Interface Module (VCIM) (UE1)
2

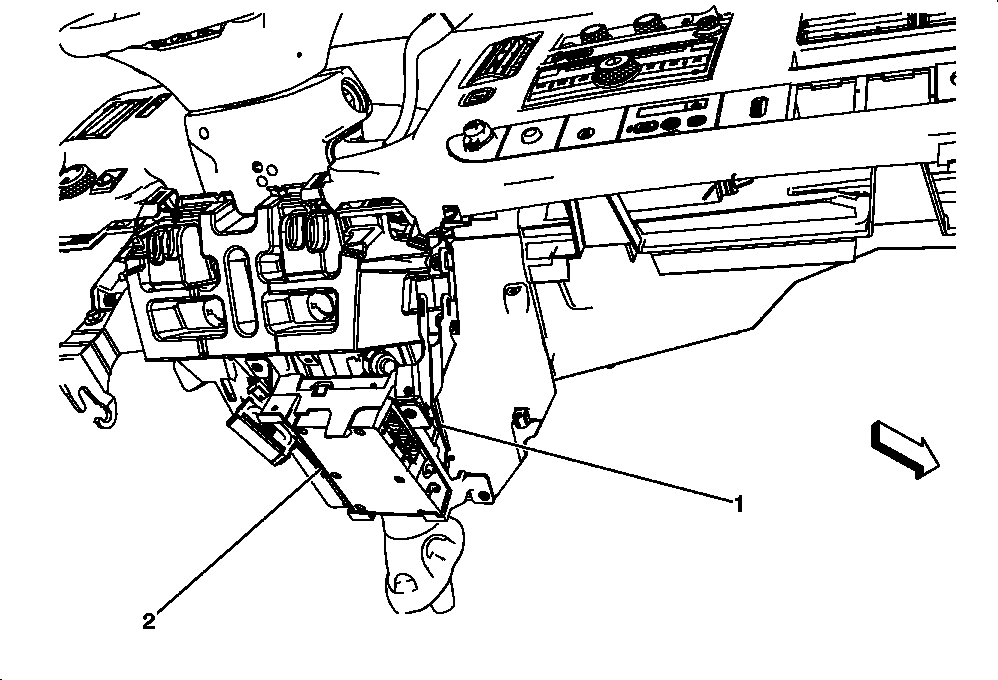

Fig 1: Under Steering Column Components
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
