BCM Power, Ground and Serial Data Wiring Schematics
BCM Power, Ground and Serial Data Wiring Schematics

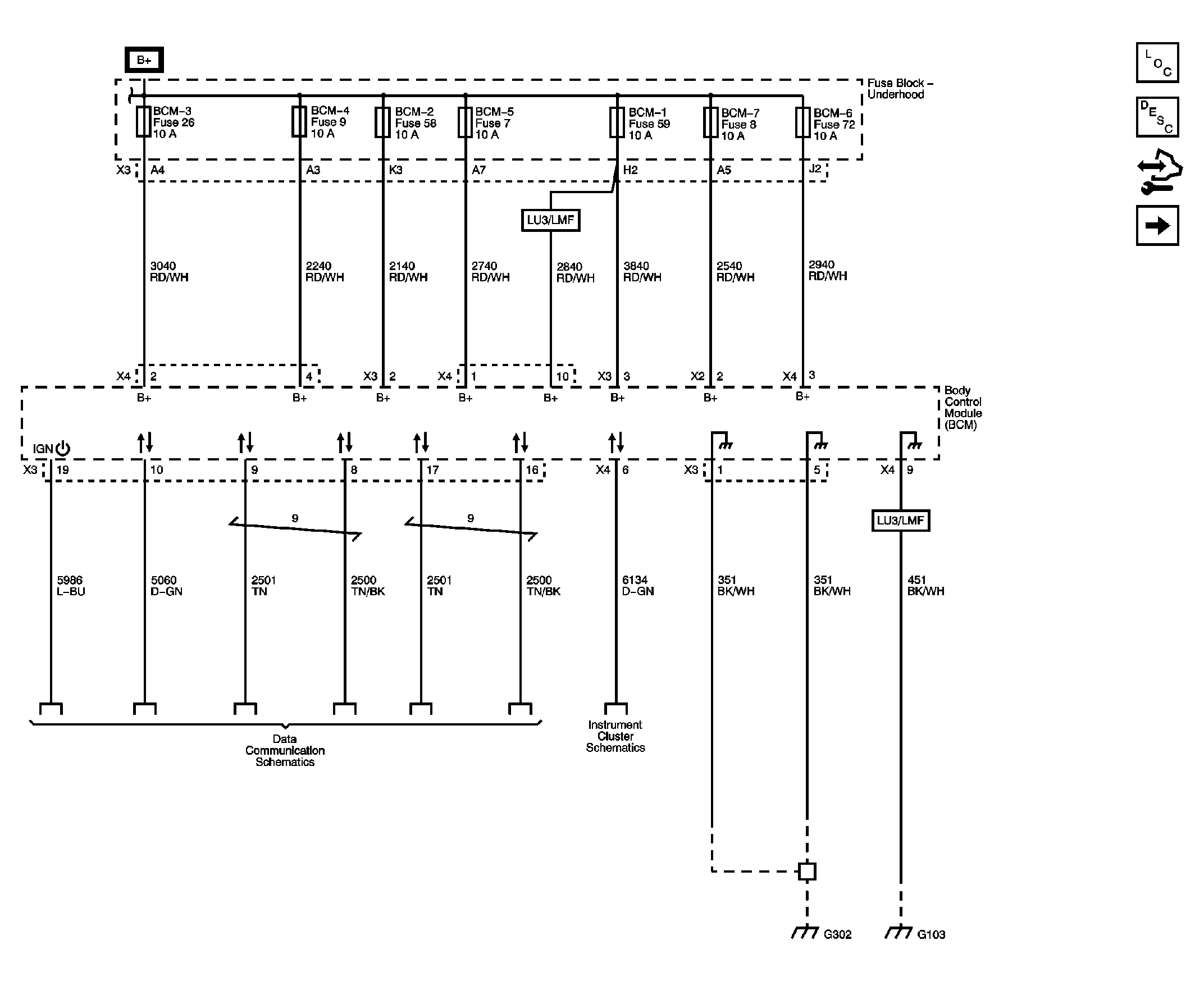

Fig 1: BCM Power, Ground and Serial Data Wiring Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
