Cruise Control System Wiring Schematics
Cruise Control System Wiring Schematics

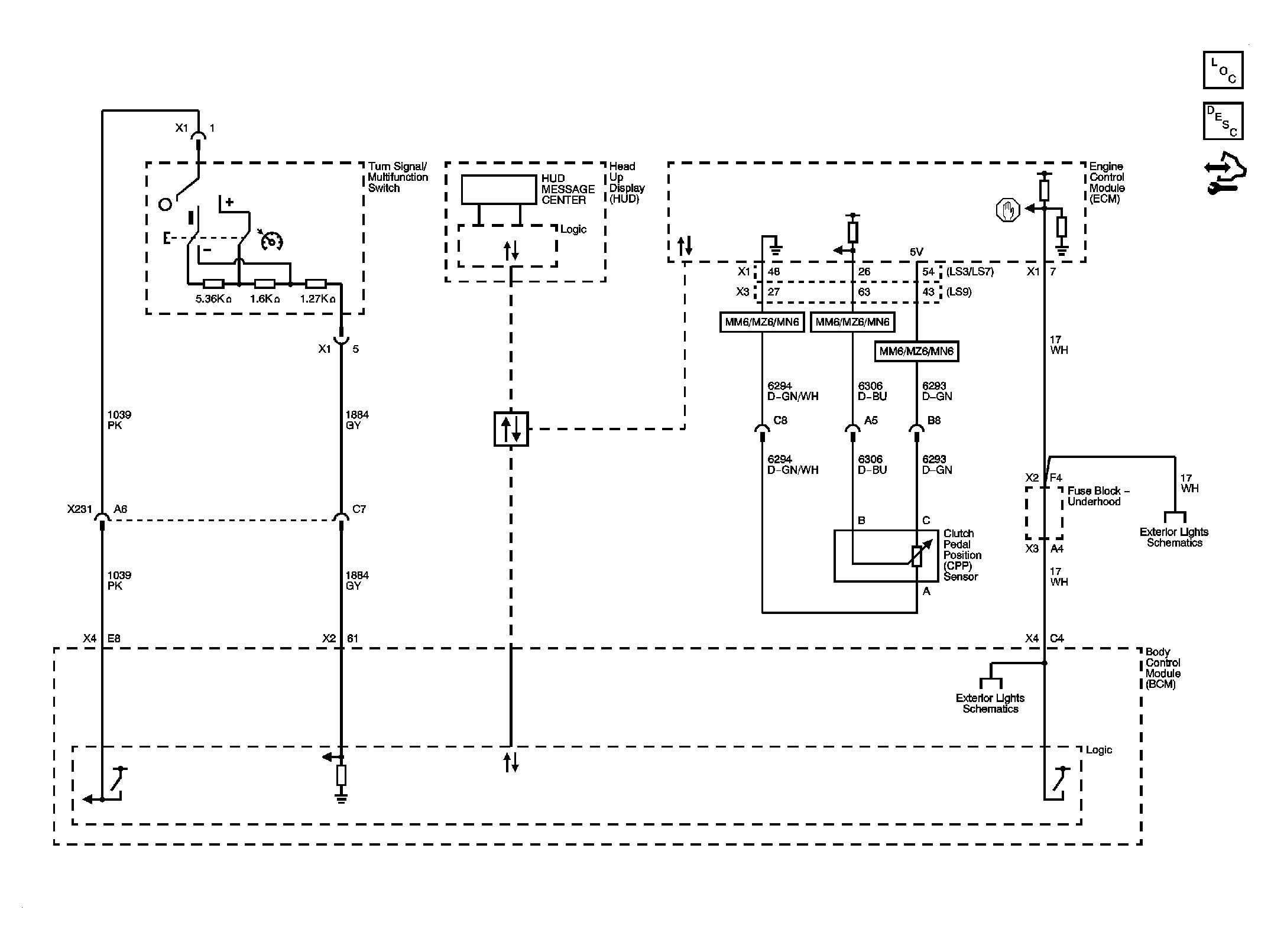

Fig 1: Cruise Control System Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
