Corvette Base, 2D Convertible, Standard
›
Repair and Diagnosis
›
Body & Frame
›
Ignition Switch/Steering Lock
›
Immobilizer System
›
Wiring Schematics
›
Immobilizer System Wiring Schematics
Immobilizer System Wiring Schematics

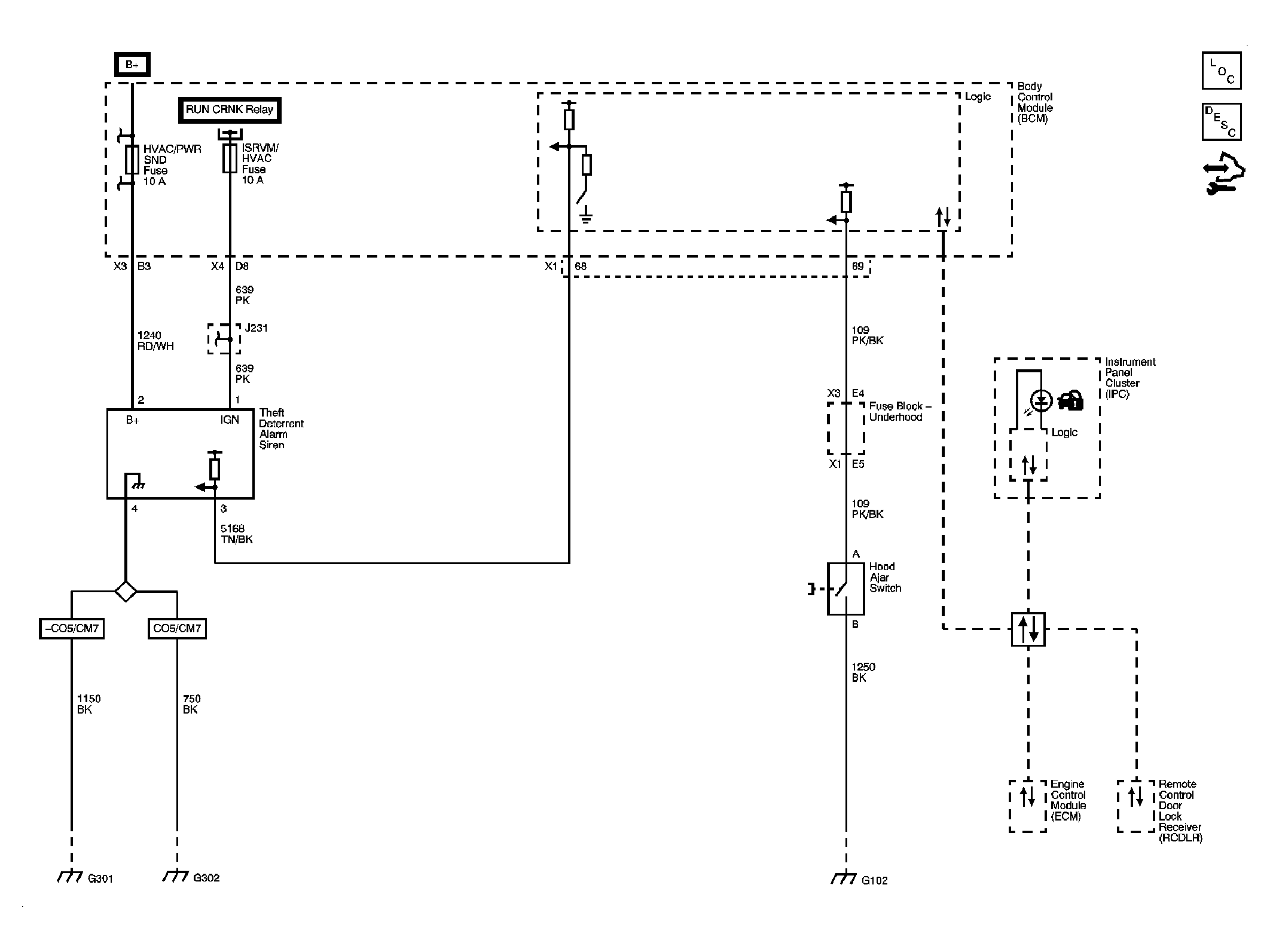

Fig 1: Immobilizer System Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
