Antilock Brake System Wiring Schematics

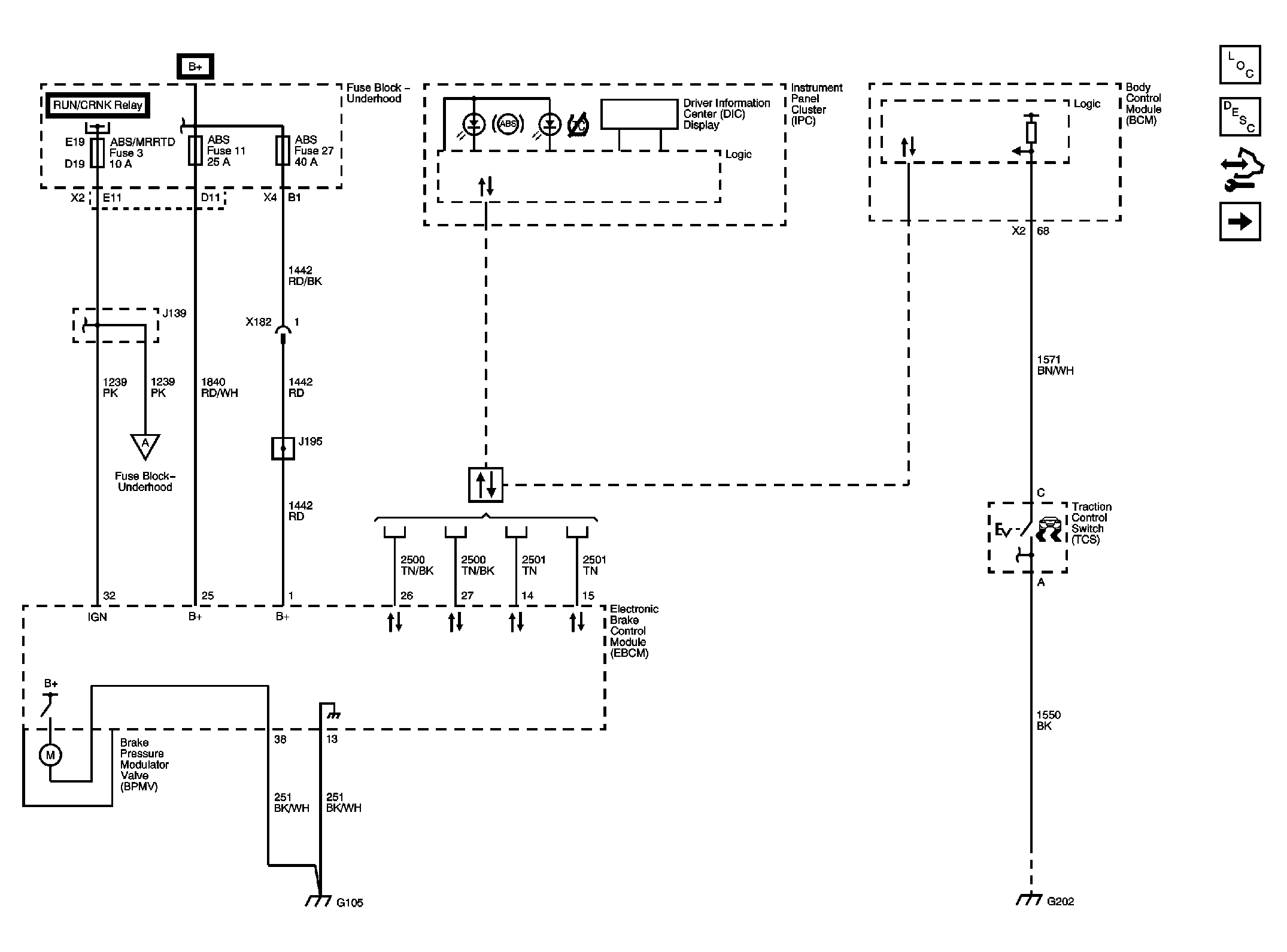

Fig 1: Power, Ground, Serial Data, and Traction Control Switch Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

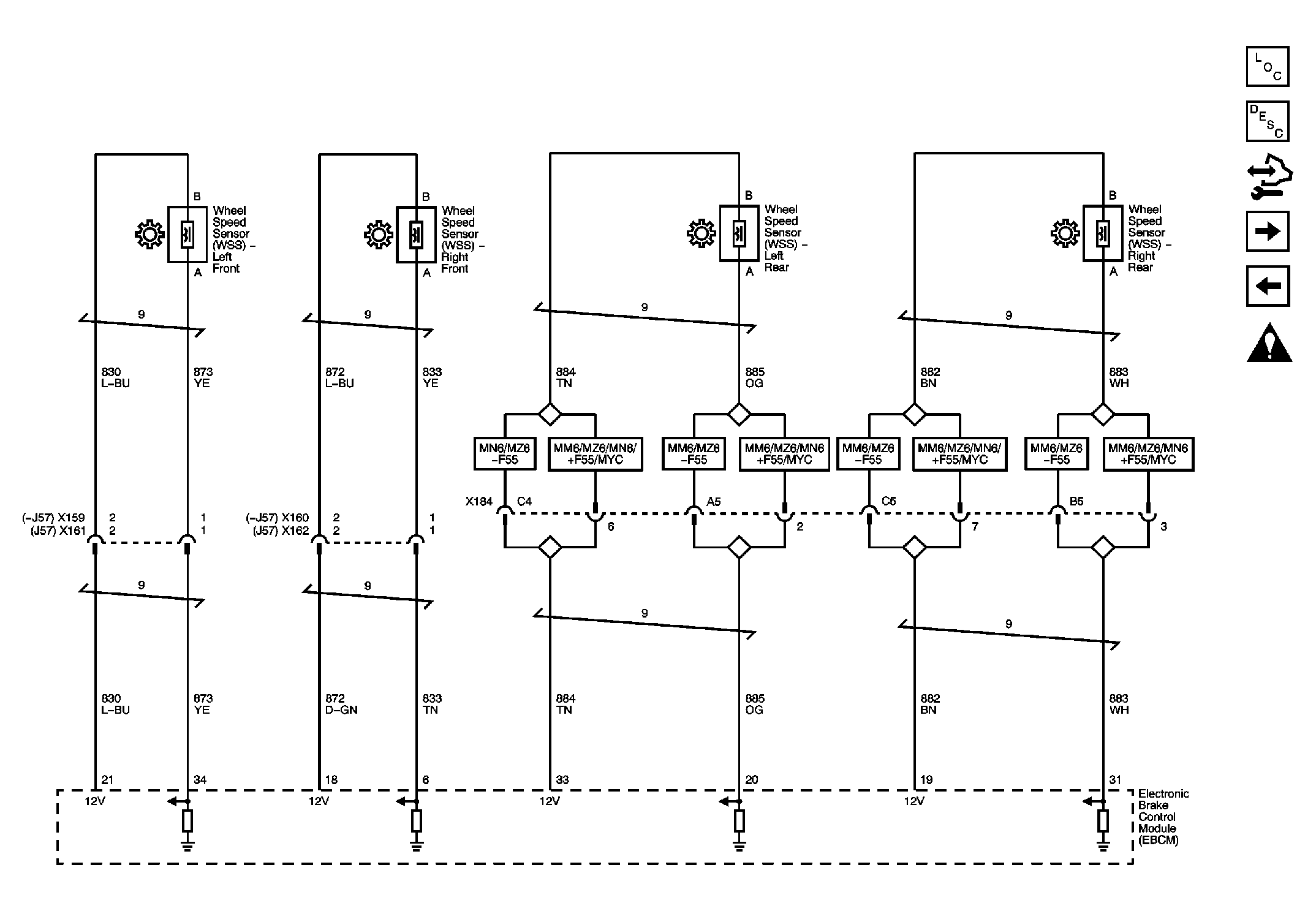

Fig 2: Wheel Speed Sensors Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

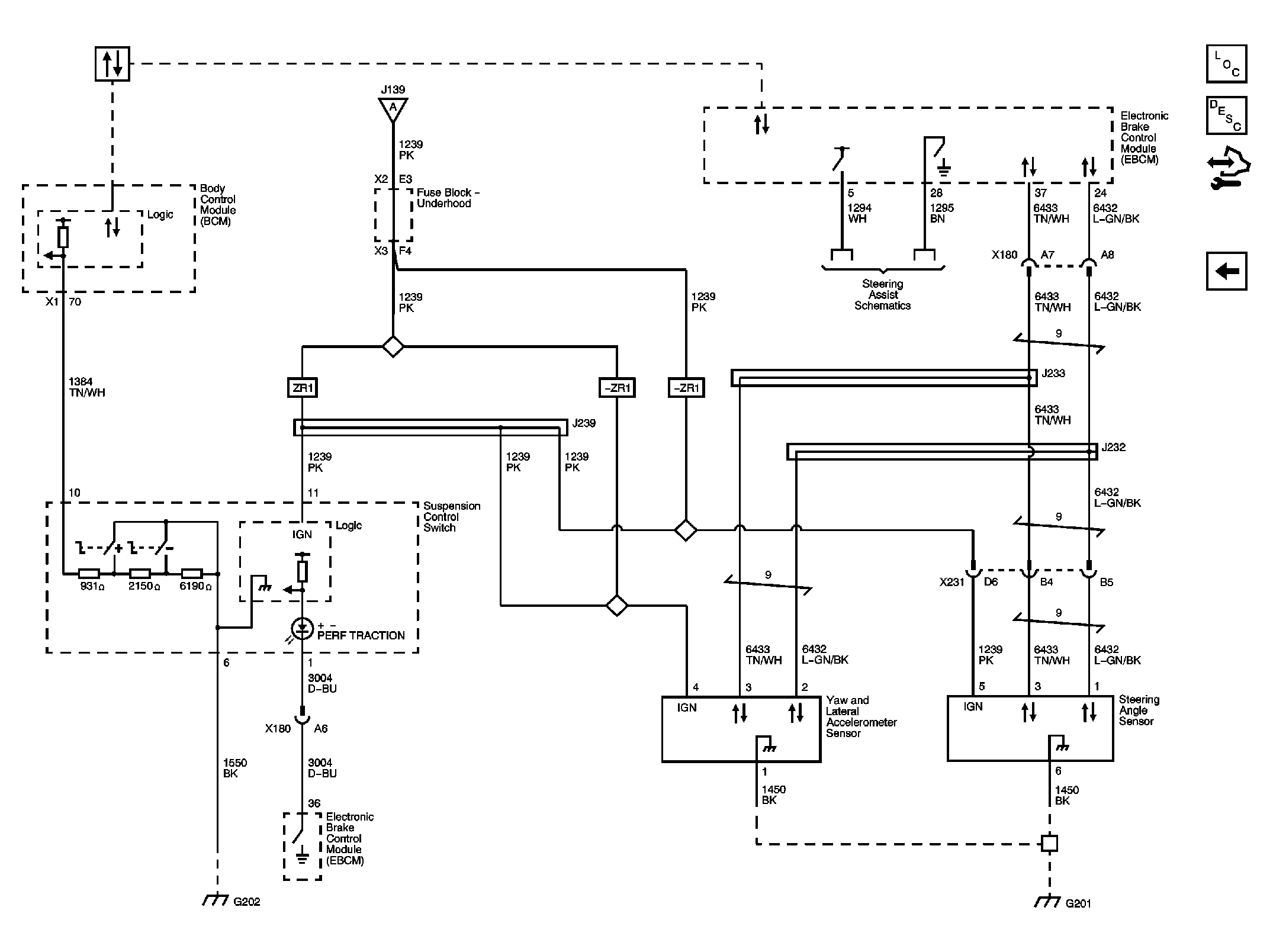

Fig 3: Stability Control Sensors Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
