Column Lock Wiring Schematics
Column Lock Wiring Schematics

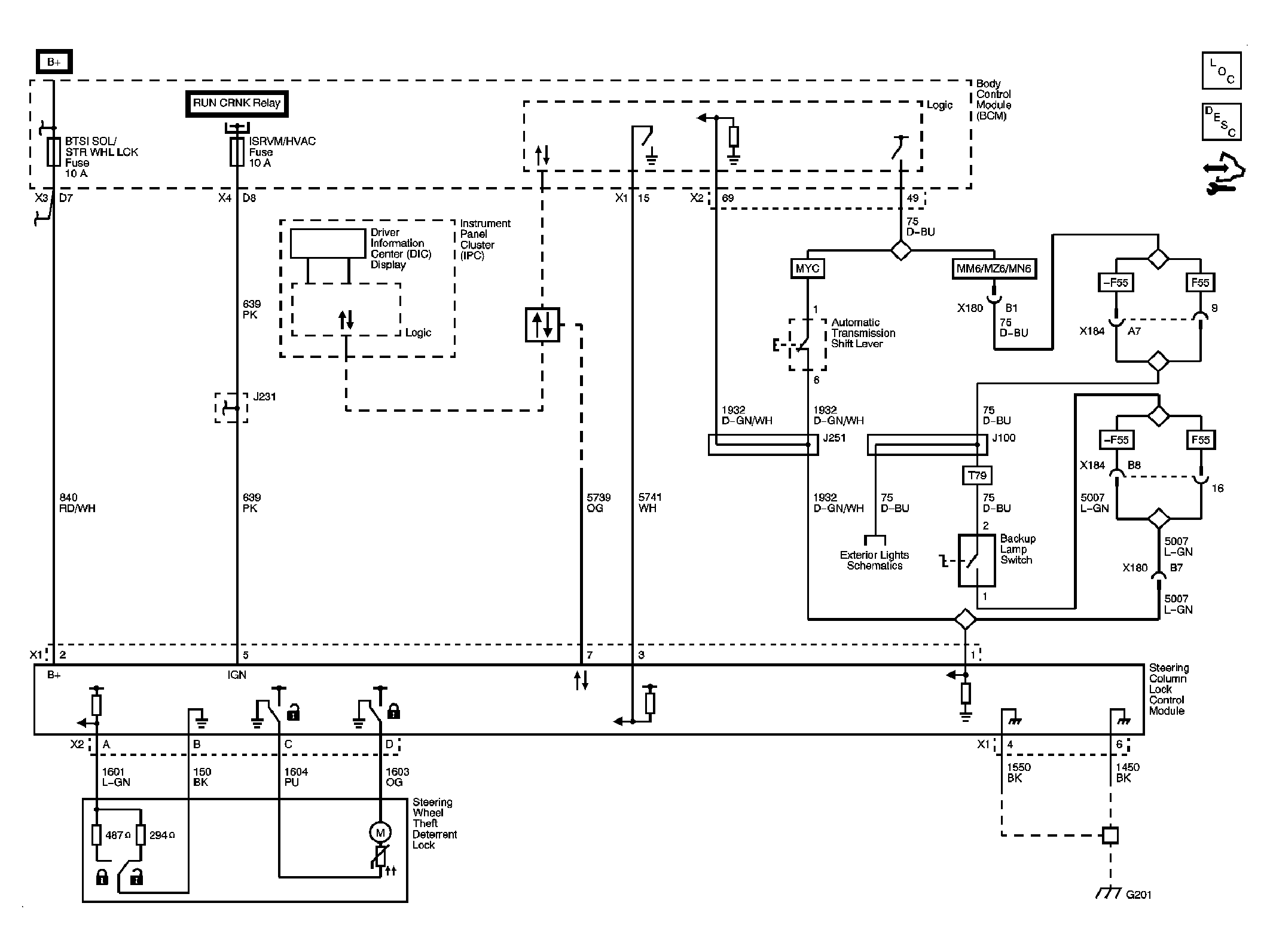

Fig 1: Column Lock Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
